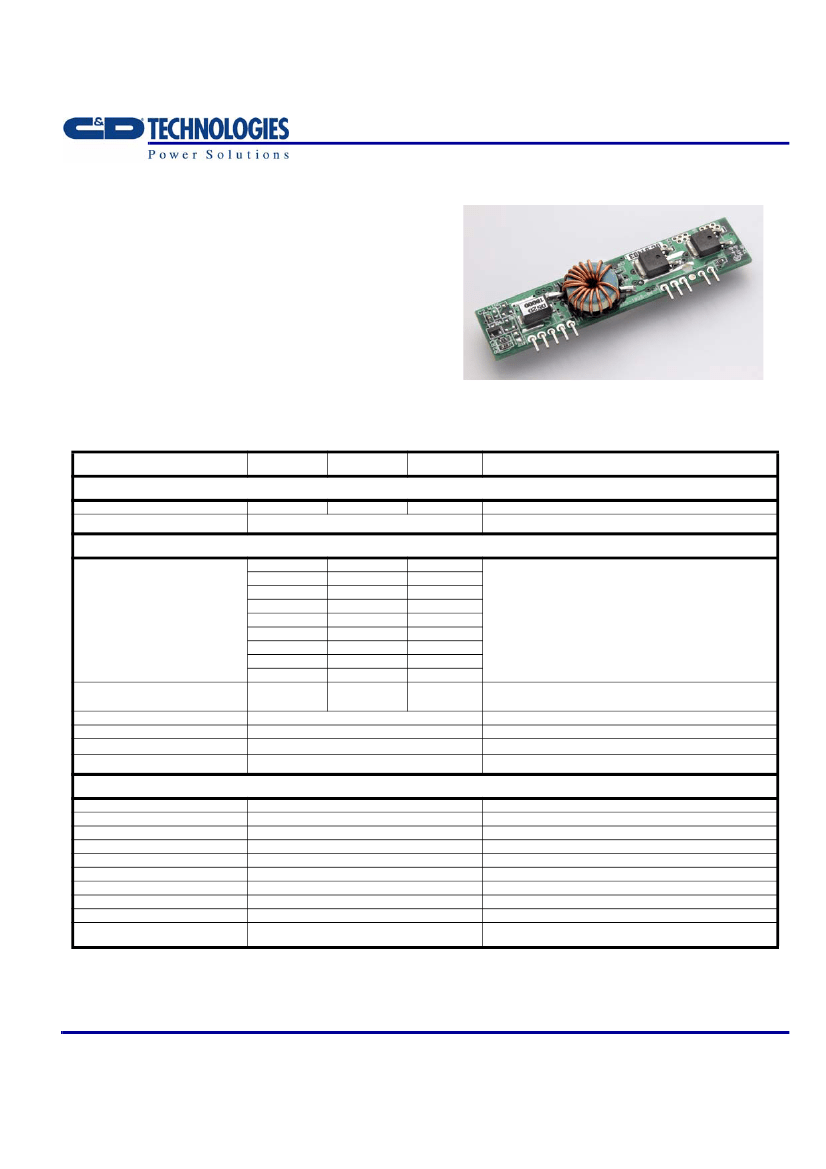

DC/DC Converter

Programmable, Single Output, 1.1V - 1.85Vout @ 60A

Features

✓

High output 15A

3.3V ±5%, 5/12V ±10% Input

Regulation ±0.4% line and load

Industry standard pin configuration

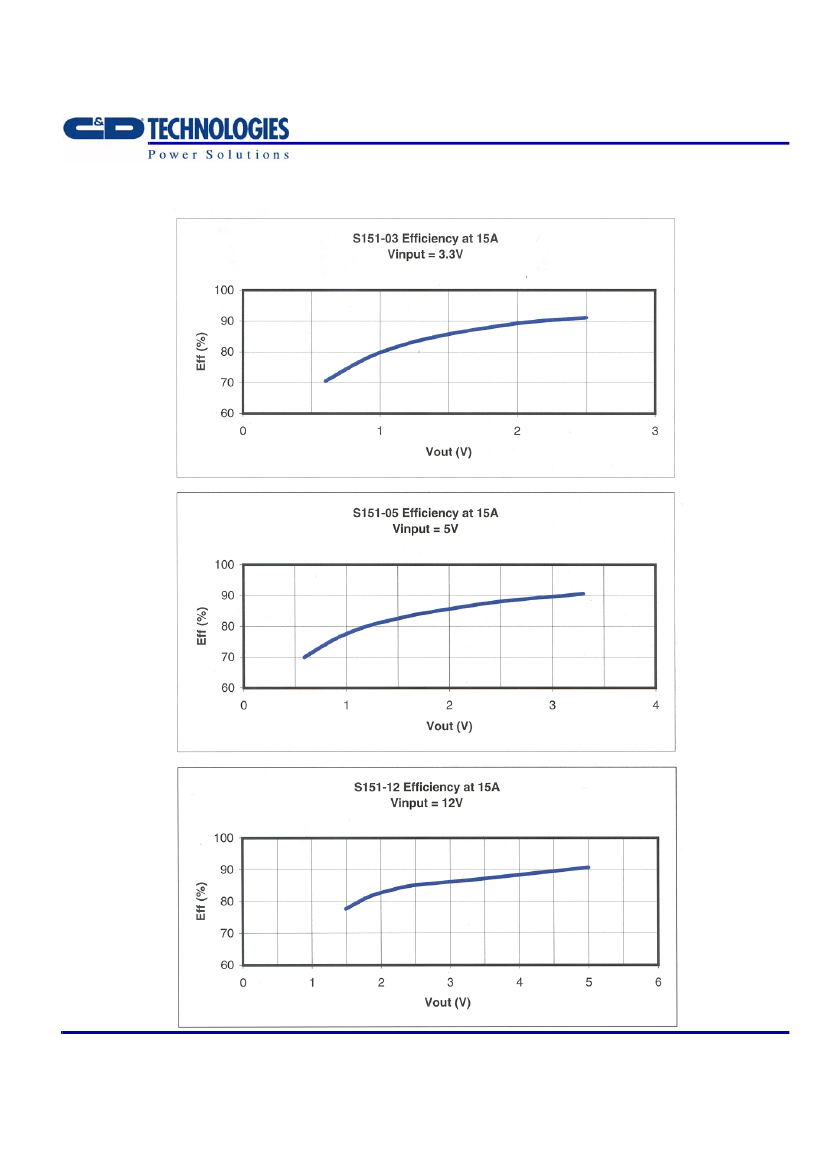

High efficiency to 91%

Remote Sense, Trim and Enable

Short Circuit protection

MTBF 2.9 million hours

Output voltage trimmable down to 0.6V using the optional

voltage reference

Can source and sink output current

3.3V input, 0.8 to 2.5V output, 15A

5V input, 1.0 to 3.3V output, 15A

12.0V input, 1.5 to 5.0V output, 15A

✓

This unit is not fuse protected. User is responsible for providing system protection.

Consult factory for application information.

Specifications *

Input Specifications

Input voltage range

External input capacitor

Output Specifications

Standard output voltages

0.8V

0.9V

1.2V

1.5V

1.8V

2.5V

1.0V

1.2V

1.5V

1.8V

2.5V

3.3V

15A

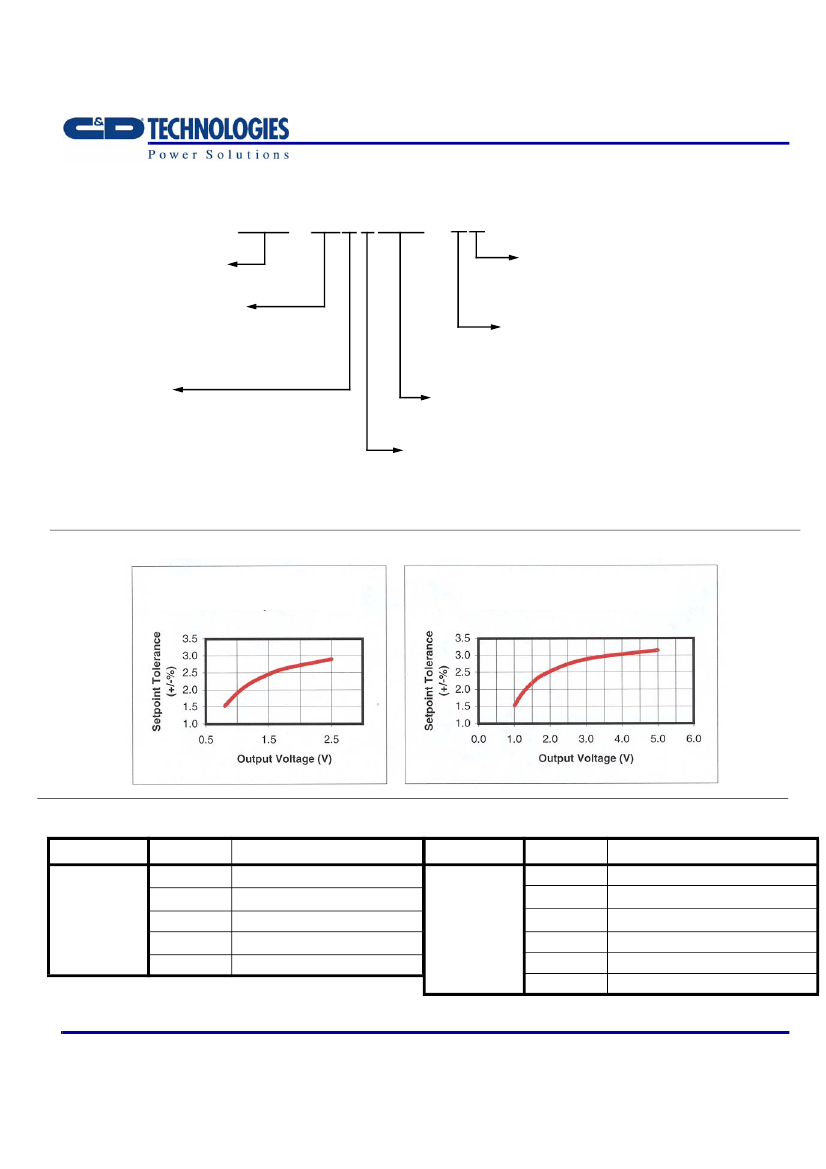

Outputs 0.8V and 1.0V trimmable down to 0.6V using the

on-board voltage reference (option 7 or F, see pg 2 and

trimming equations on pg 8). Standard setpoint accuracy

varies from ±1.5% at the low end of the output voltage

range, to ±3% at the high end. (see chart on pg 2)

Contact factory for tighter tolerances.

See note on pg 8 for trimming to different voltages.

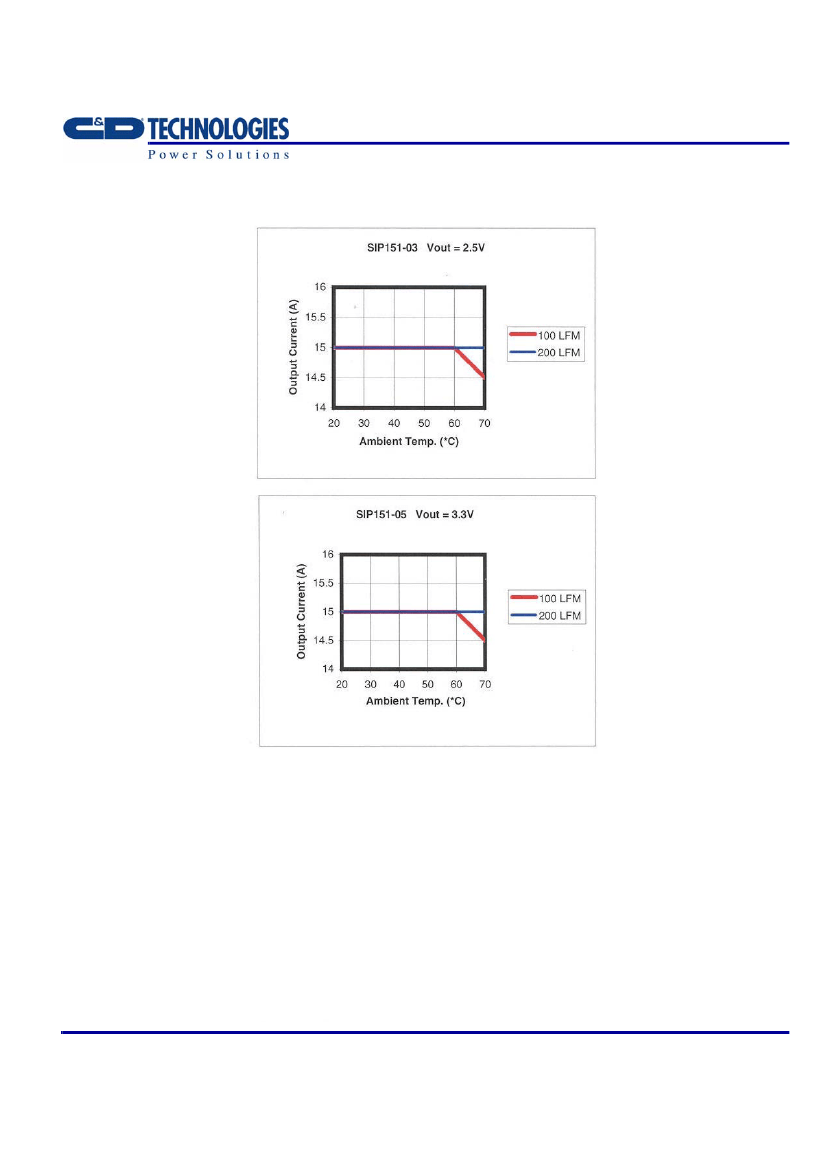

200 LFM at 70°C (see also derating curves

page 5-6)

0 to 15A load

Over specified input voltage range
