S2B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> S2B

S2B: DescriptionFAIRCHILD SEMICONDUCTOR - S2B - STANDARD DIODE; 2A; 100V; DO-214AA; CategoryDiscrete semiconductor diode; File Size115KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

S2B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	S2B	-	-	View	Buy Now

S2B Overview

FAIRCHILD SEMICONDUCTOR - S2B - STANDARD DIODE; 2A; 100V; DO-214AA

S2B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	DO-214AA
package instruction	PLASTIC, SMB, 2 PIN
Contacts	2
Reach Compliance Code	compli
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	YES
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

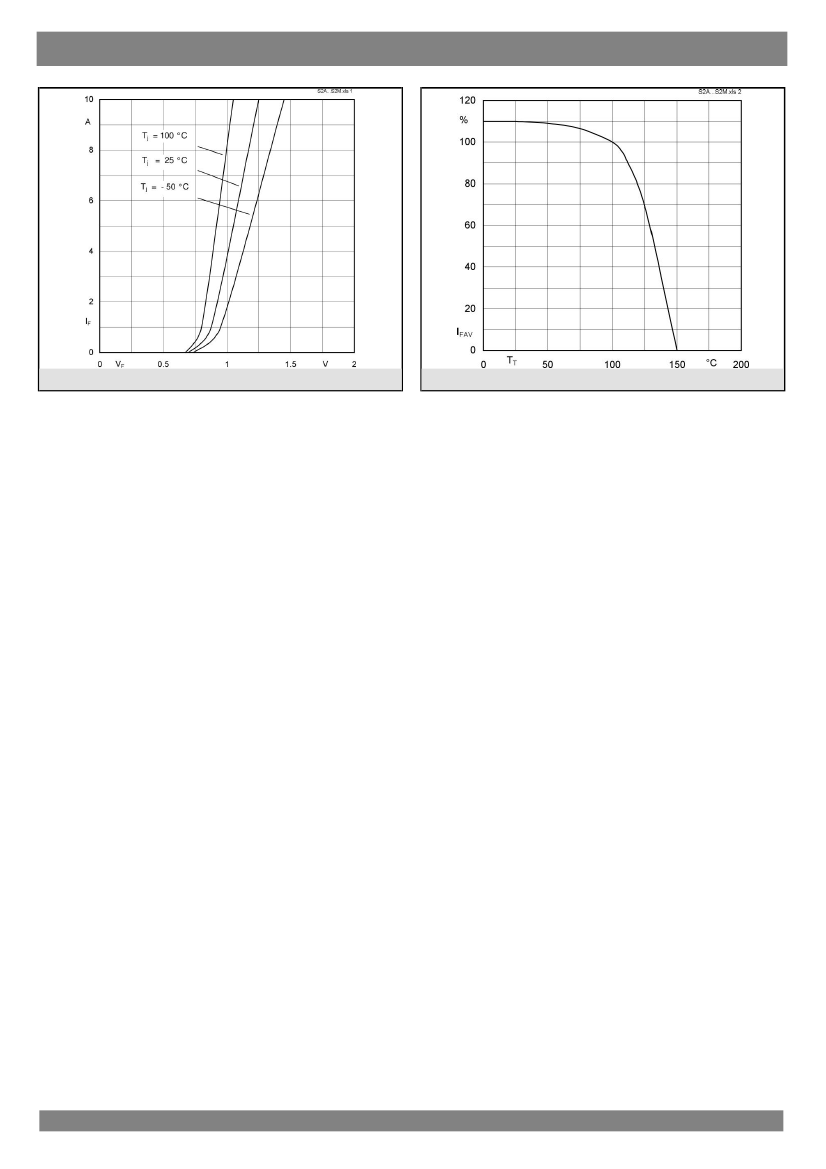

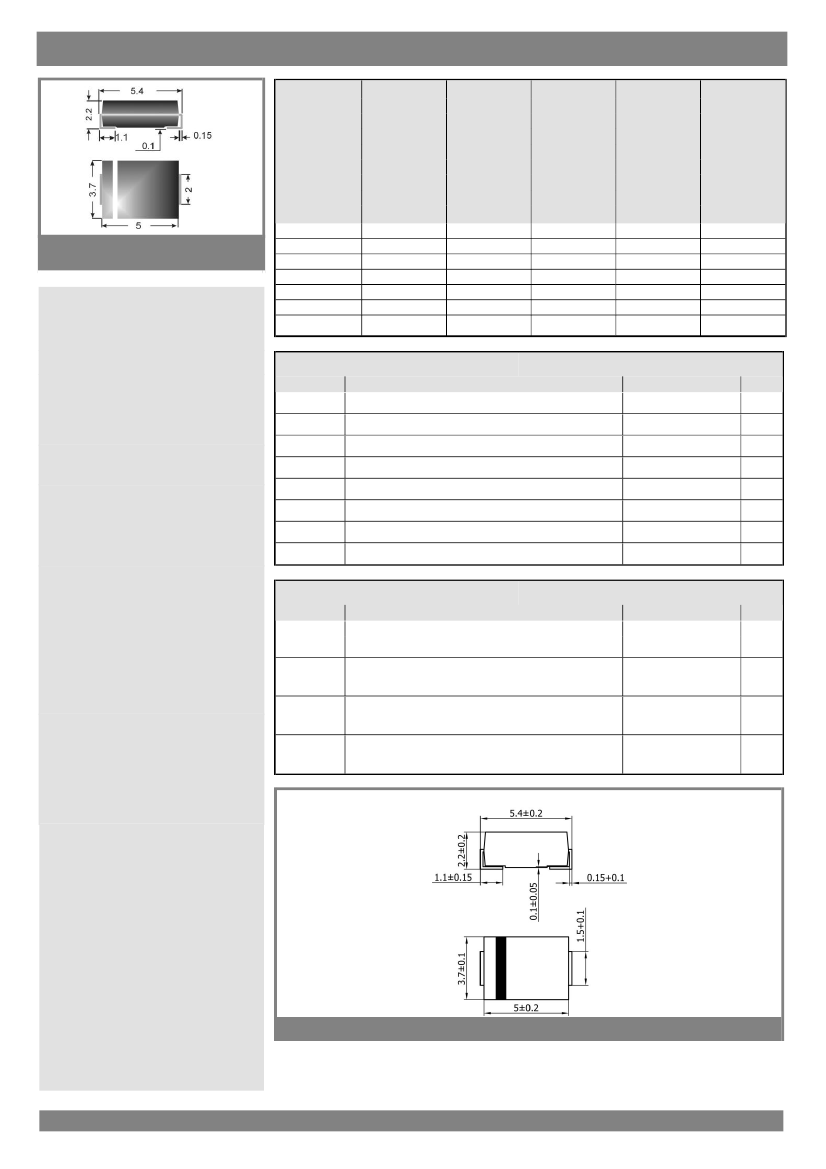

S2 A ... S2 M

Surface mount diode

Standard silicon rectifier

diodes

S2 A...S2 M

Forward Current: 2 A

Reverse Voltage: 50 to 1000 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Features

Mechanical Data

Characteristics

Symbol Conditions

Values

Units

Dimensions in mm

18-04-2007 MAM

S2B Related Products

	S2B	S2A_07	S2D	S2G	S2J	S2K	S2M	S2A
Description	FAIRCHILD SEMICONDUCTOR - S2B - STANDARD DIODE; 2A; 100V; DO-214AA	FAIRCHILD SEMICONDUCTOR - S2B - STANDARD DIODE; 2A; 100V; DO-214AA	1.5 A, 200 V, SILICON, RECTIFIER DIODE	1.5 A, 400 V, SILICON, RECTIFIER DIODE	2 A, 600 V, SILICON, RECTIFIER DIODE, DO-214AA	2 A, 800 V, SILICON, RECTIFIER DIODE, DO-214AA	1.5 A, 1000 V, SILICON, RECTIFIER DIODE	NKK SWITCHES - S2A - SWITCH; TOGGLE; SPDT; 20A; 250VAC
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SEMIKRON	-	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON
Parts packaging code	DO-214AA	-	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA
package instruction	PLASTIC, SMB, 2 PIN	-	PLASTIC, SMB, 2 PIN	R-PDSO-C2	PLASTIC, SMB, 2 PIN	PLASTIC, SMB, 2 PIN	PLASTIC, SMB, 2 PIN	R-PDSO-C2
Contacts	2	-	2	2	2	2	2	2
Reach Compliance Code	compli	-	compli	compli	compli	compliant	compliant	compliant
application	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-214AA	-	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA	DO-214AA
JESD-30 code	R-PDSO-C2	-	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e2	-	e2	e2	e2	e2	e2	e2
Maximum non-repetitive peak forward current	50 A	-	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	1	-	1	1	1	1	1	1
Phase	1	-	1	1	1	1	1	1
Number of terminals	2	-	2	2	2	2	2	2
Maximum operating temperature	150 °C	-	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-50 °C	-	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	2 A	-	2 A	2 A	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	-	200 V	400 V	600 V	800 V	1000 V	50 V
surface mount	YES	-	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Silver (Sn/Ag)	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Terminal form	C BEND	-	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum forward voltage (VF)	-	-	1.15 V	1.15 V	1.15 V	1.15 V	-	1.2 V
