69904-132LF datasheet, PDF - EEWORLD Datasheet

69904-132LF: DescriptionTelecom and Datacom Connector, 24 Contact(s), Male, Straight, Solder Terminal, Locking, LEAD FREE; CategoryThe connector The connector; File Size73KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

69904-132LF Overview

Telecom and Datacom Connector, 24 Contact(s), Male, Straight, Solder Terminal, Locking, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	8 GROUND CONTACTS IN 1 ROW AVAILABLE, SHROUDED
Board mount options	HOLE .125-.137
body width	0.685 inch
subject depth	0.824 inch
body length	1.105 inch
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	1000 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	WHITE
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYCARBONATE
Terminal length	0.23 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24
UL Flammability Code	94V-0
Base Number Matches	1

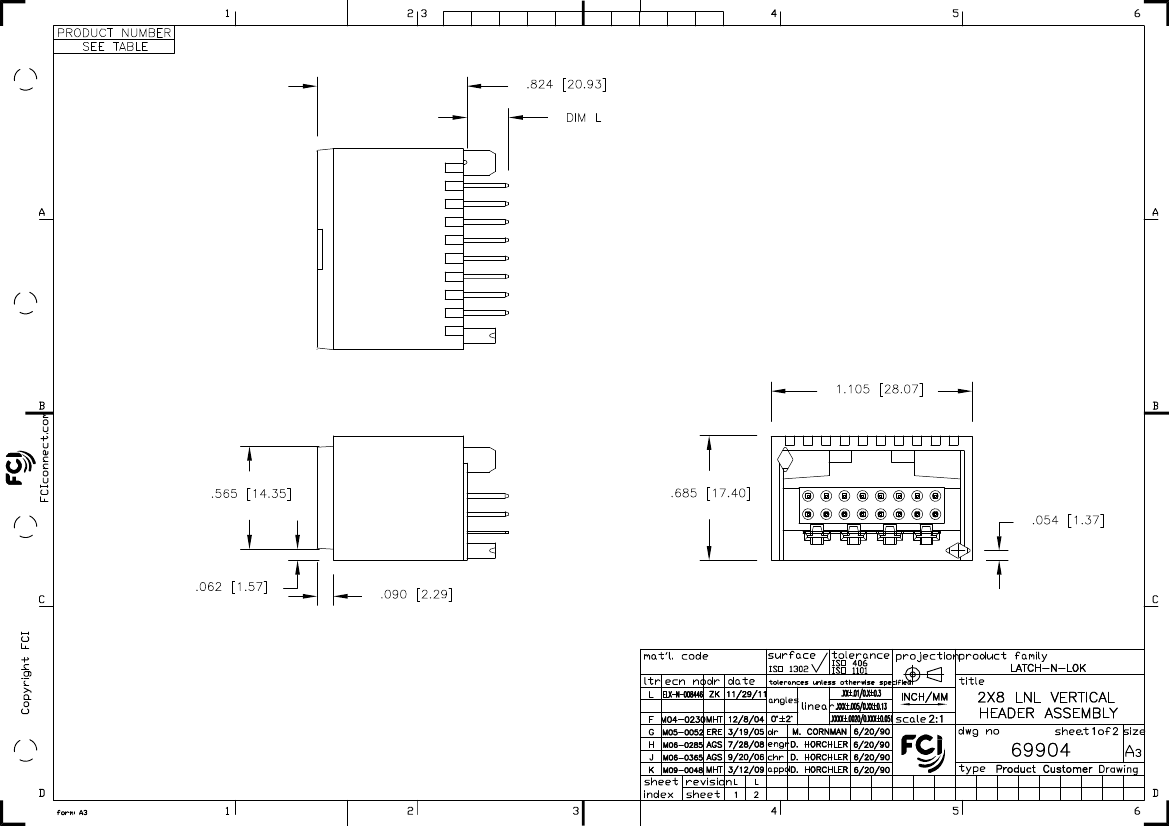

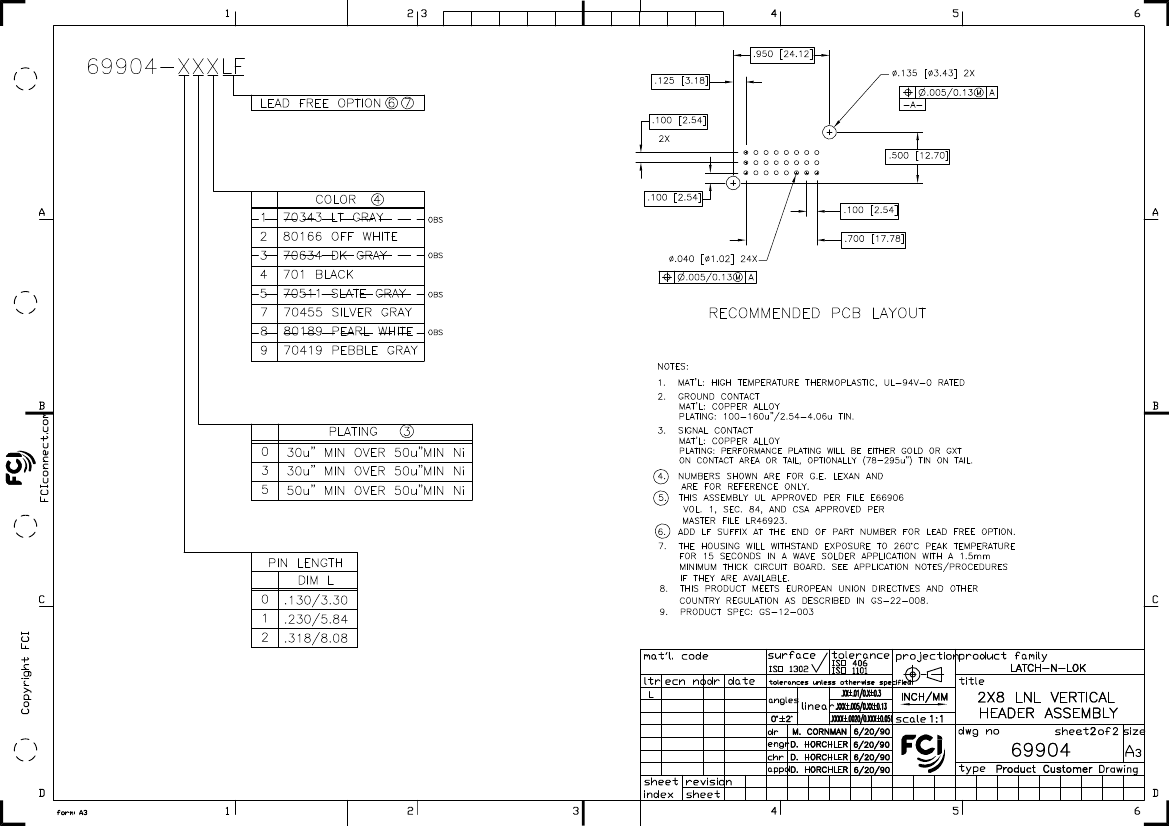

PDS: Rev :L

STATUS:Released

Printed: Dec 27, 2011
