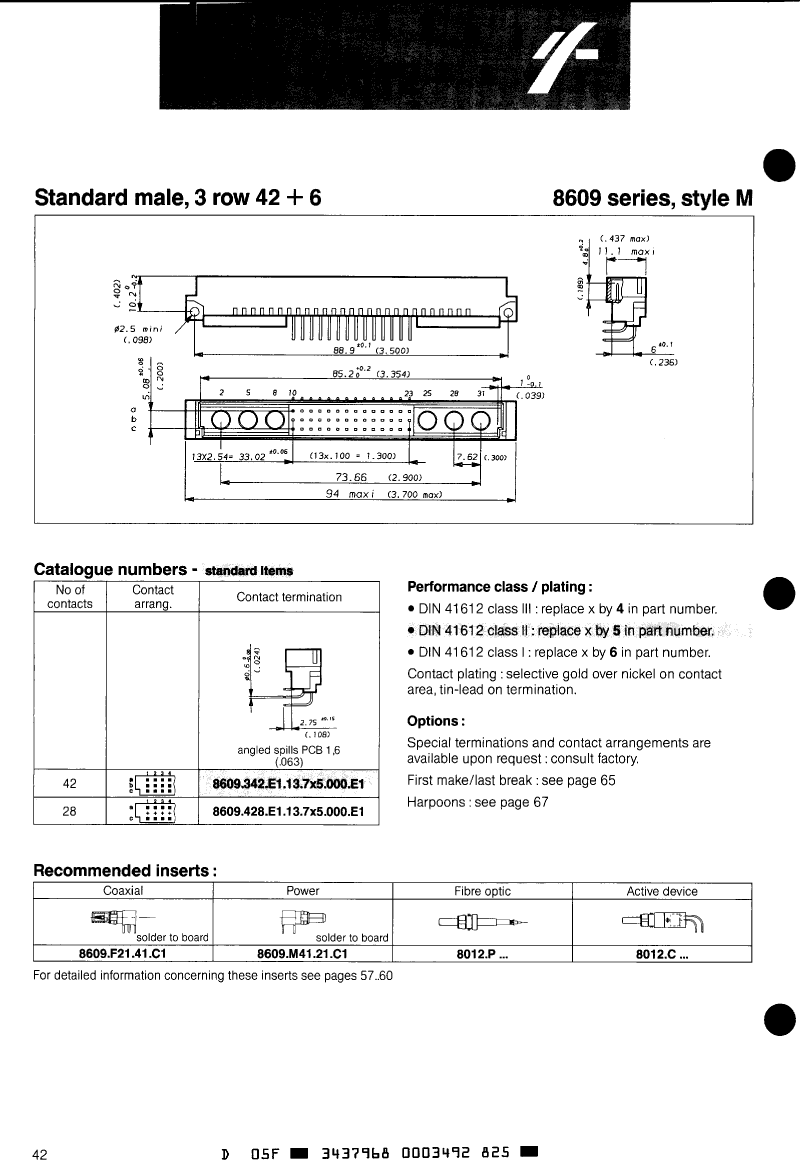

Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle,

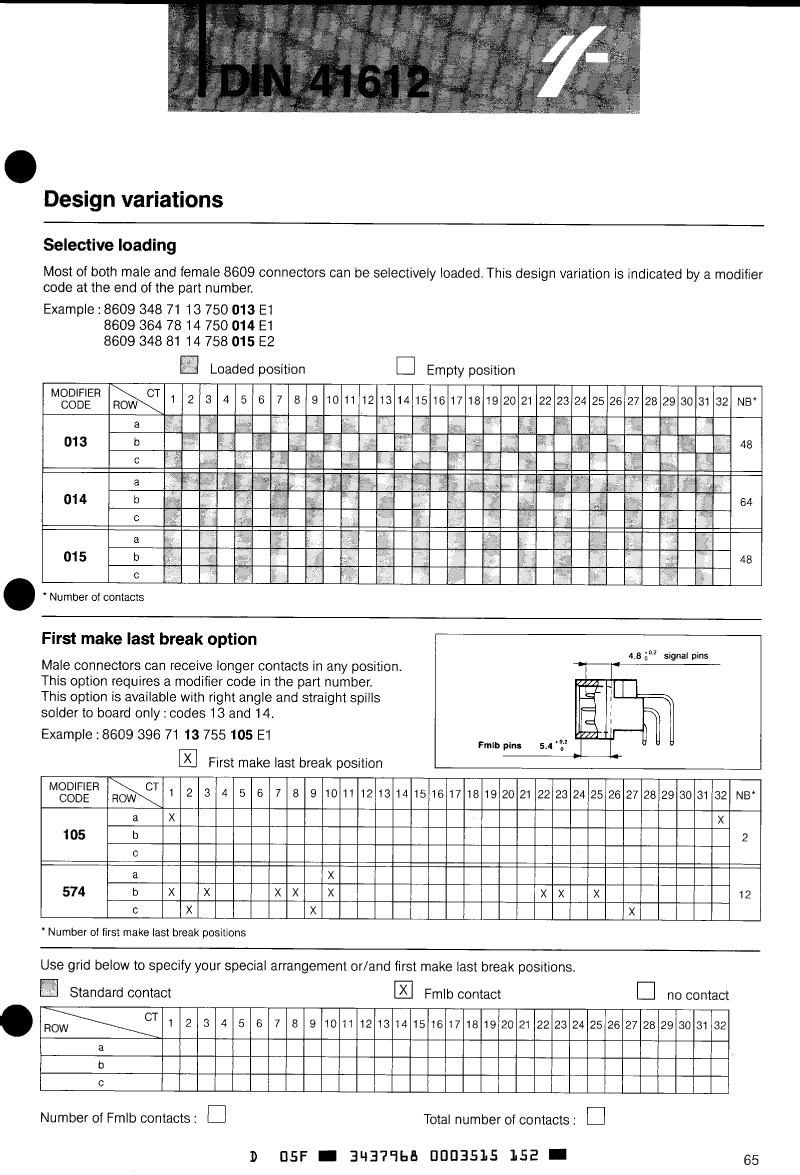

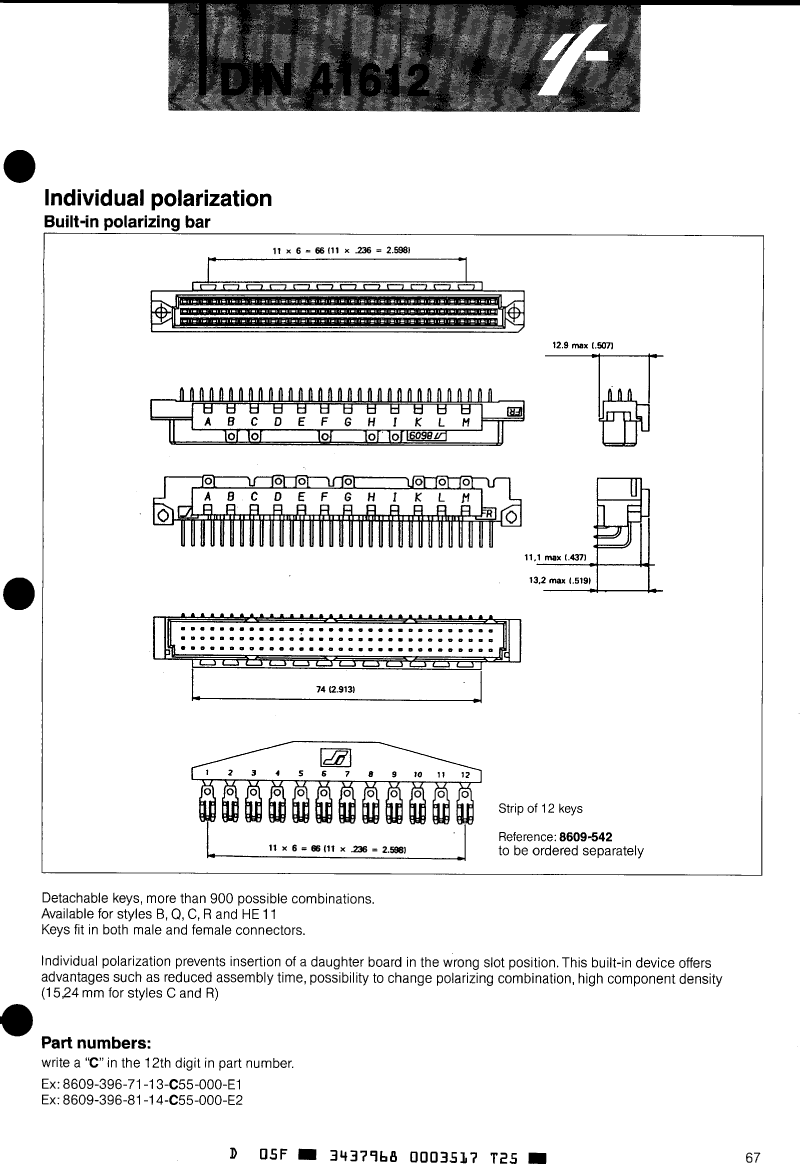

| Parameter Name | Attribute value |
| Objectid | 1474373017 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | STANDARD: DIN 41612 |
| body width | 0.437 inch |
| body length | 3.7 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD EURO CONNECTOR |
| Contact arrangement | S42C6 |
| Contact to complete cooperation | GOLD OVER NICKEL |
| Contact completed and terminated | TIN LEAD |
| Contact point gender | MALE |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | YES |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 50 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .9452 N |
| Insulation resistance | 1000000000000 Ω |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | YES |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Loaded row name | A,B,C |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| polarization key | ENDS |
| Rated current (signal) | 1.5 A |
| Guideline | UL, CSA |
| Terminal length | 0.108 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 48 |
| Evacuation force-minimum value | .139 N |
| 8609.342.E1.13.745.000.E1 | 8609.342.E1.13.765.000.E1 | 8609.428.E1.13.745.000.E1 | |
|---|---|---|---|
| Description | Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle, | Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle, | Board Euro Connector, 34 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle |
| Reach Compliance Code | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Other features | STANDARD: DIN 41612 | STANDARD: DIN 41612 | STANDARD: DIN 41612 |
| body width | 0.437 inch | 0.437 inch | 0.437 inch |
| body length | 3.7 inch | 3.7 inch | 3.7 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR | BOARD EURO CONNECTOR |
| Contact arrangement | S42C6 | S42C6 | S28C6 |
| Contact to complete cooperation | GOLD OVER NICKEL | GOLD OVER NICKEL | GOLD OVER NICKEL |
| Contact completed and terminated | TIN LEAD | TIN LEAD | TIN LEAD |
| Contact point gender | MALE | MALE | MALE |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | YES | YES | YES |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V |
| Durability | 50 Cycles | 250 Cycles | 50 Cycles |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| maximum insertion force | .9452 N | .9452 N | .9452 N |
| Insulation resistance | 1000000000000 Ω | 1000000000000 Ω | 1000000000000 Ω |
| JESD-609 code | e0 | e0 | e0 |
| MIL compliance | NO | NO | NO |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch |
| Mixed contacts | YES | YES | YES |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD |
| Loaded row name | A,B,C | A,B,C | A,C |
| PCB row number | 3 | 3 | 3 |
| Number of rows loaded | 3 | 3 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm |
| polarization key | ENDS | ENDS | ENDS |
| Rated current (signal) | 1.5 A | 1.5 A | 1.5 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA |
| Terminal length | 0.108 inch | 0.108 inch | 0.108 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 48 | 48 | 34 |
| Evacuation force-minimum value | .139 N | .139 N | .139 N |
| Objectid | 1474373017 | 1474373023 | - |
