T1/CEPT/ISDN-PRI TRANSFORMER

P/N: S8863 DATA SHEET

A. General Specifications:

1. Dual SMT package contains both transmit and receive transformers

2. Models matched to leading transceiver ICs

3. Isolation voltage : 1500 Vrms

4. Operating temperature range : 0℃ to +70℃

B. Electrical Specifications@25°C :

1. Turns Ratio (Pri:Sec.±2%) : 1:2CT & 1:1.14CT

2. OCL : 1.20 mH Min & 1.20 mH Min

3. L.L : 0.55μH Max & 0.80μH Max

4. Cw/w: 40 pF Max & 35 pF Max

5. DCR (Pri.): 0.70

Max & 0.70

Max

6. DCR (Sec.): 1.20

Max & 0.9

Max

7. Primary Pins : 12-10 , 4-6

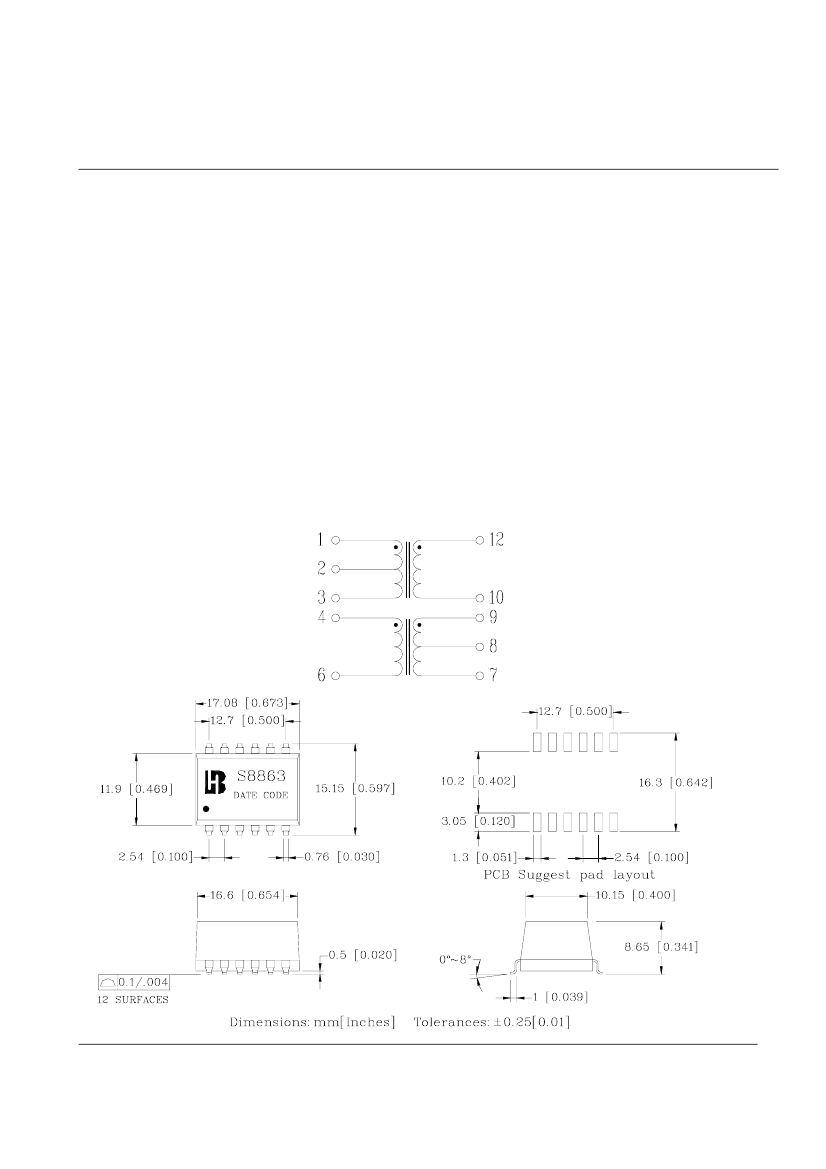

C. Schematic & Mechanical

Prepared :Qingli wu

Drawing no.: ISDN Transformer

Approved: Xu wenbing

REV.: A0

Date : 2001/02/21

Page : 1/1
