AS431CM1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AS431CM1

AS431CM1: DescriptionTwo Terminal Voltage Reference, 1 Output, Trim/Adjustable, PSSO3, SOT-89, 3 PIN; CategoryPower/power management The power supply circuit; File Size142KB，7 Pages; ManufacturerCalogic; Websitehttp://www.calogic.net/

Download Datasheet Parametric Compare View All

AS431CM1 Overview

Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PSSO3, SOT-89, 3 PIN

AS431CM1 Parametric

Parameter Name	Attribute value
Maker	Calogic
Parts packaging code	SOT-89
package instruction	,
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PSSO-F3
length	4.5 mm
Number of functions	1
Output times	1
Number of terminals	3
Maximum operating temperature	105 °C
Minimum operating temperature
Maximum output voltage	20 V
Minimum output voltage	2.445 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.6 mm
surface mount	YES
Temperature level	OTHER
Terminal form	FLAT
Terminal pitch	1.5 mm
Terminal location	SINGLE
Fine-tuning/adjustable output	YES
width	2.445 mm
Base Number Matches	1

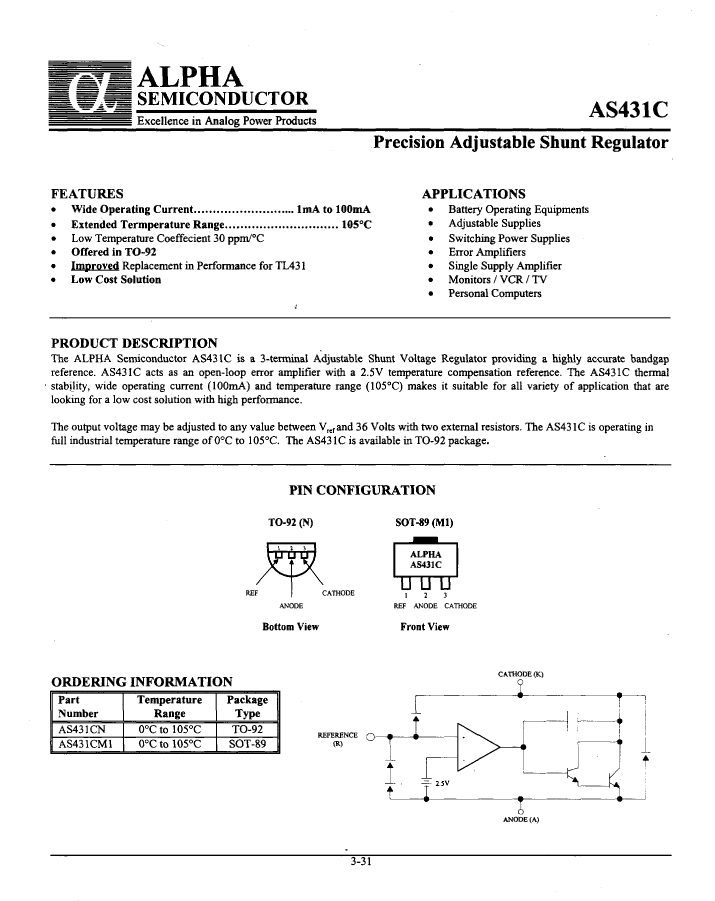

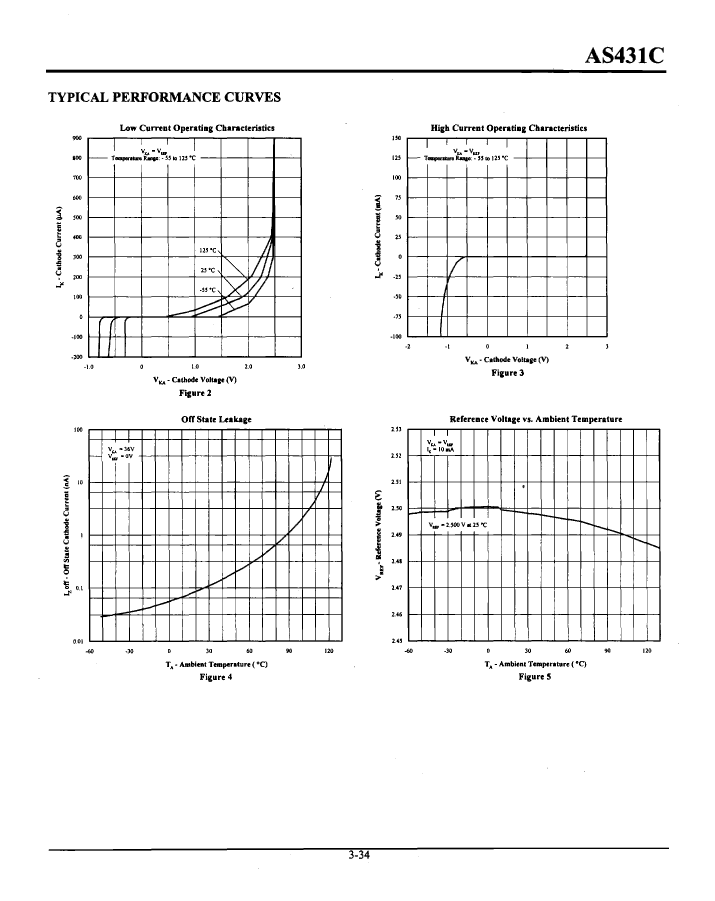

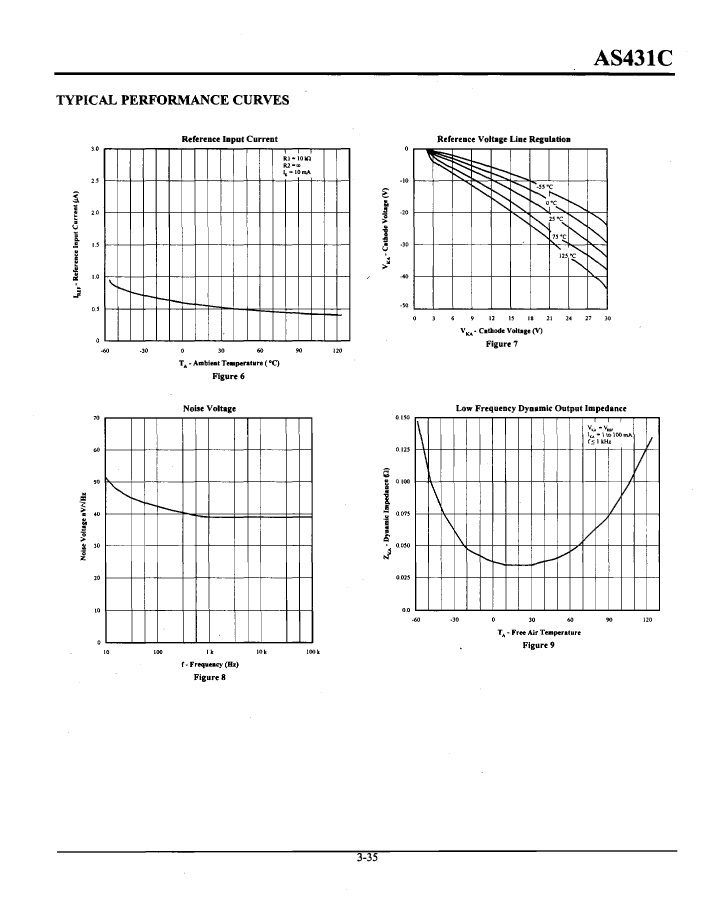

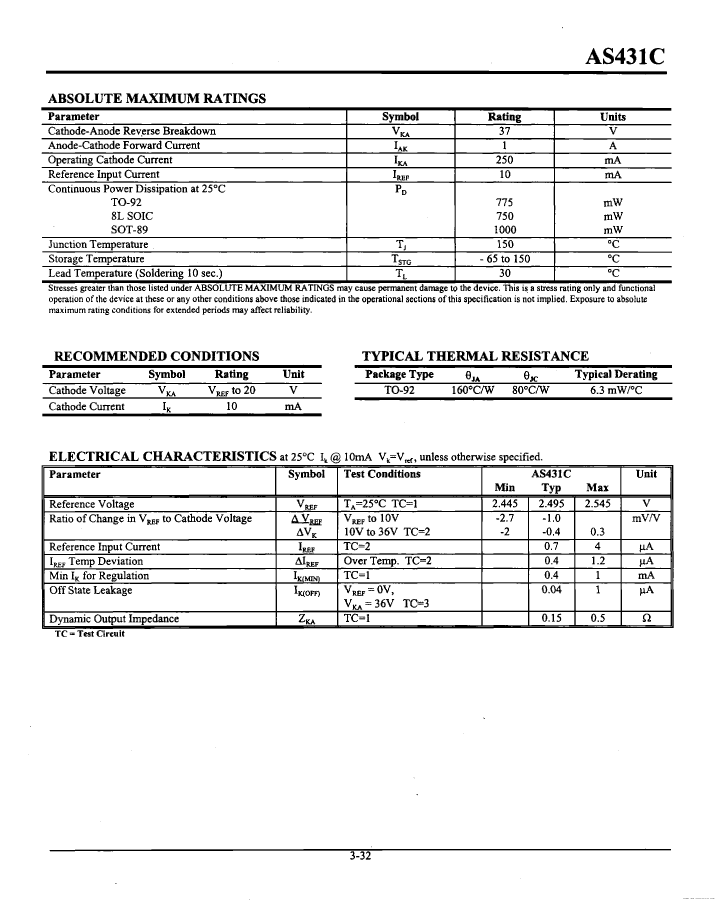

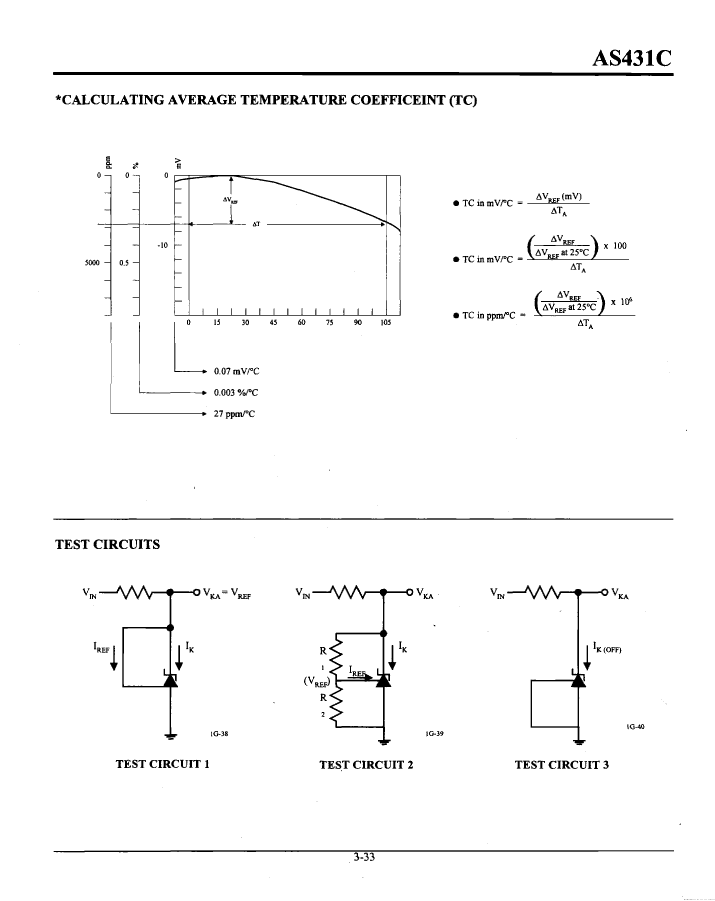

Preview

Download Datasheet

View All

AS431CM1 Related Products

	AS431CM1	AS431CN	AS431CNOPTION1	AS431CNOPTION4	AS431CNOPTION3	AS431CNOPTION2
Description	Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PSSO3, SOT-89, 3 PIN	Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PBCY3, TO-92, 3 PIN	Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PBCY3, TO-92	Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PBCY3, TO-92	Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PBCY3, TO-92	Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PBCY3, TO-92
Maker	Calogic	Calogic	Calogic	Calogic	Calogic	Calogic
Parts packaging code	SOT-89	TO-92	TO-92	TO-92	TO-92	TO-92
Contacts	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PSSO-F3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of functions	1	1	1	1	1	1
Output times	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Maximum output voltage	20 V	20 V	20 V	20 V	20 V	20 V
Minimum output voltage	2.445 V	2.445 V	2.445 V	2.445 V	2.445 V	2.445 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	SMALL OUTLINE	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	NO	NO	NO	NO
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES
