17D-D-F-50-P-AJ3 datasheet, PDF

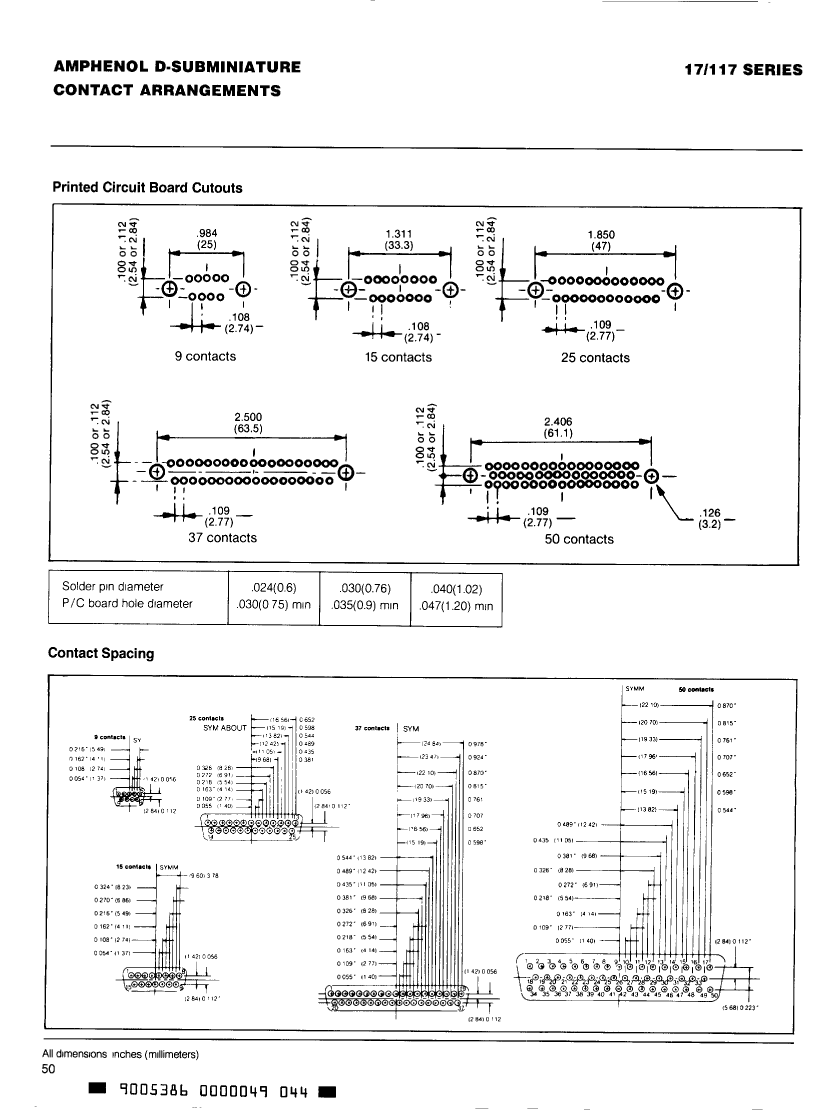

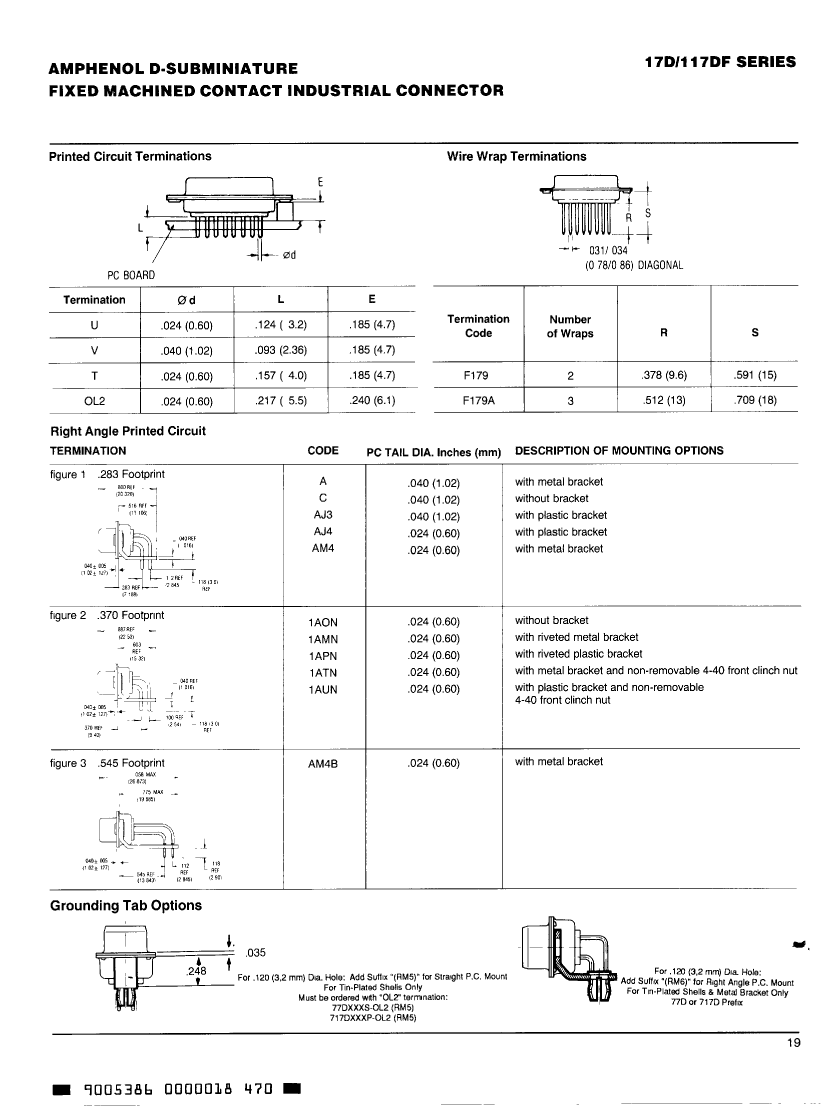

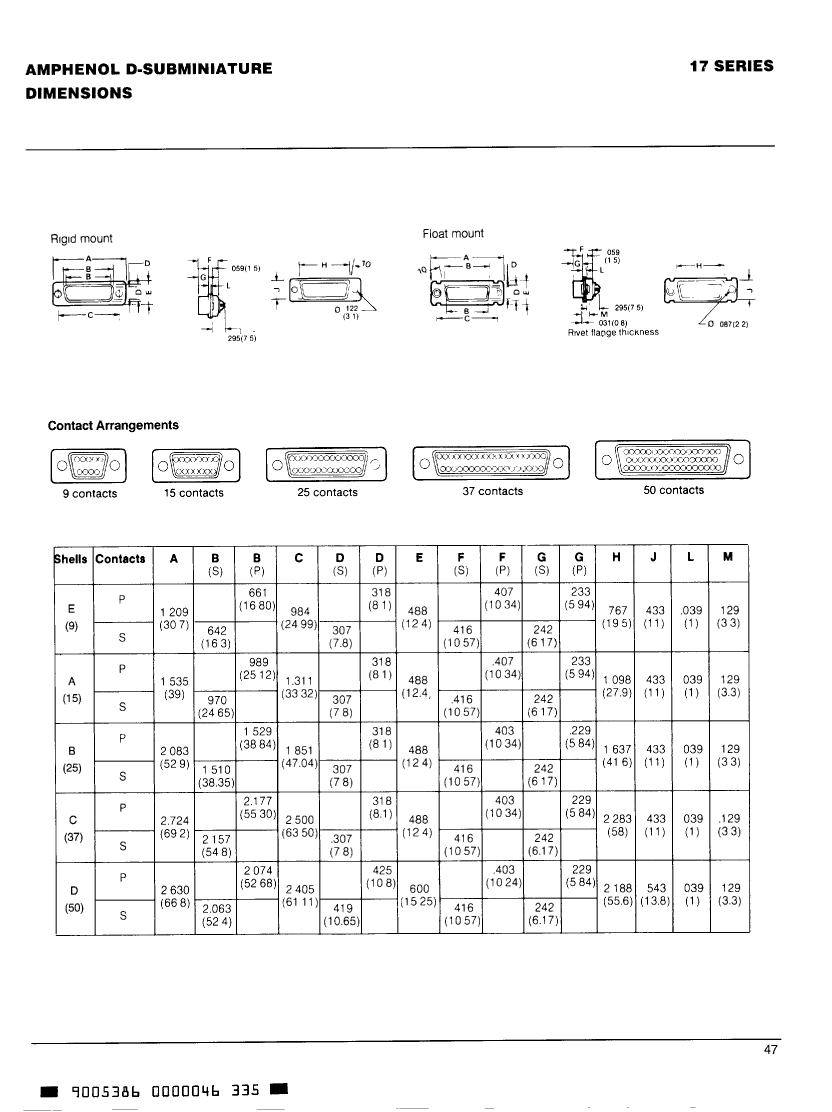

17D-D-F-50-P-AJ3: DescriptionD Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size289KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

17D-D-F-50-P-AJ3 Overview

D Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.6 inch
subject depth	0.174 inch
body length	2.63 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	5 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VDC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	17D
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	FLOAT BUSHING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	10u inch
Rated current (signal)	7.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	YELLOW CHROMATE
Shell material	STEEL
Terminal length	0.118 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	50
