810C50200-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 810C50200-10

810C50200-10: DescriptionRF Relay,; CategoryMechanical and electronic products relay; File Size85KB，1 Pages; ManufacturerDow-Key Microwave Corporation

Download Datasheet Parametric Compare View All

810C50200-10 Overview

RF Relay,

810C50200-10 Parametric

Parameter Name	Attribute value
Maker	Dow-Key Microwave Corporation
Reach Compliance Code	unknown
Relay type	RF RELAY
Base Number Matches	1

Preview

Download Datasheet

View All

SPDT

810 Failsafe | N, TNC, SC

RF Characteristics

DC-6.5 GHz

DC-12.4 Ghz

Ruggedized

100K Life Cycles

Frequency

GHz

DC-1

1-4

4-8

8-12.4

VSWR

(max)

1.20

1.30

1.40

1.50

Isolation

dB (min)

Ins. Loss

dB (max)

0.20

0.30

0.40

0.50

Note: RF Characteristics are for type N & TNC Female connectors. Consult

Dow-Key for SC type connectors.

Specifications

Operating Voltage

28 Vdc (20-30 Vdc)

Coil Current (max. @ nom. Vdc & 25 °C)*:

28 Vdc 160 mA

Switching Time:

20 ms maximum

Operating Temperature:

-55 °C to +85°C

Mechanical Life Cycles:

100,000 minimum

Vibration, Operating:

20g’s sine/random

Mechanical Shock, Non-Operating:

50G, 1/2 Sine, 11 ms

Nominal Weight*:

8.5 oz. (241 g.)

* Performance and weight varies depending on selected options.

Mechanical

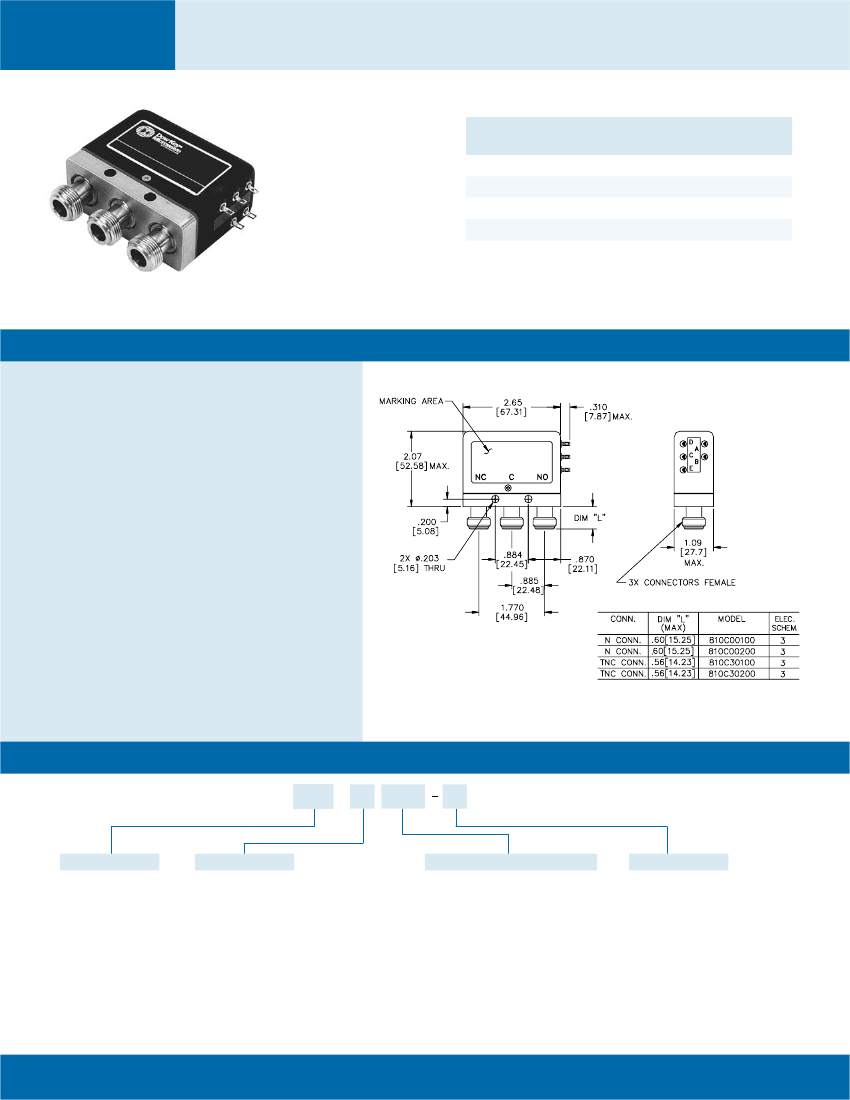

810C00200 Shown

For Electrical Schematic, see page # 1-17

Part Number Selector

810C

0100

Family

Connectors

Voltage

Options

810C = SPDT Failsafe

0 = N Female

3 = TNC Female

5 = SC Female*

0100 = 28 Vdc

0200 = 28 Vdc with Indicators

10 = Transient Diodes

20 = DC Power Plug

30 = TTL High

60 = High Power**

*Consult Dow-Key for dimensions

** See Power Chart on page # iii

1-16

Dow-Key Microwave

www.dowkey.com

800.266.3695

AS9100/ISO-9001: 2000 Certified
