ZDCA62S: DescriptionD Subminiature Connector, 62 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ZDCA62S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZDCA62S	-	-	View	Buy Now

ZDCA62S Overview

D Subminiature Connector, 62 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle, ROHS COMPLIANT

ZDCA62S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ITT
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	8 weeks
body width	0.494 inch
subject depth	0.433 inch
body length	2.732 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Mixed contacts	NO
Installation option 1	HOLE .112-.124
Installation type	CABLE AND PANEL
Number of connectors	ONE
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	62
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

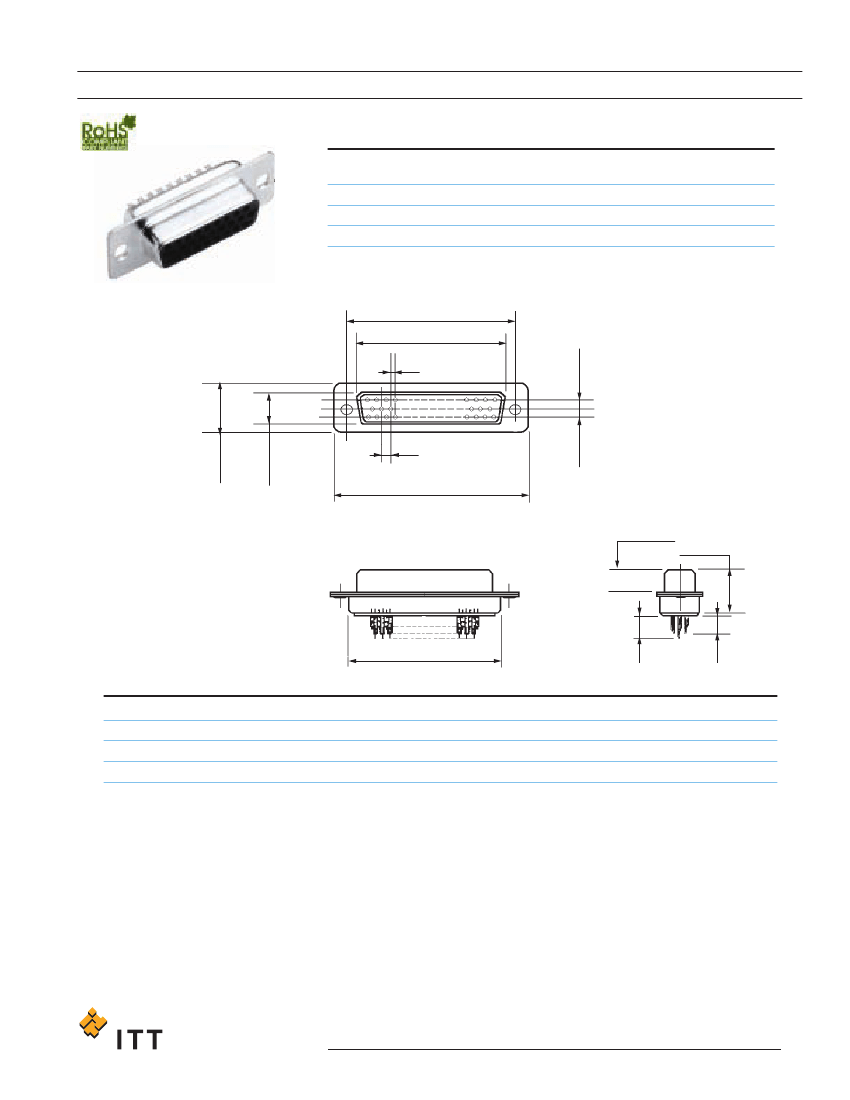

Cannon ZD Connectors

Receptacle 15 – 26 – 44 - 62 contacts

Designation

Shell size /

Arrangement

E / 15

A / 26

B / 44

C / 62

ZD* A High density, solder cup

Through hole

ZDEA15S

ZDAA26S

ZDBA44S

ZDCA62S

Captive nut

thread 4-40

ZDEAE15S

ZDAAE26S

ZDBAE44S

ZDCAE62S

Screwlock

thread 4-40

ZDEAE15S-AB

ZDAAE26S-AB

ZDBAE44S-AB

ZDCAE62S-AB

Note:

Class 2 - Add suffix A191 Example: ZDEA15S-A191

A

B

E

1,98 ±0,05

C

1,98 ±0,05

12,55 ± 0,38

7,90 ± 0,25

F

6,10 ± 0,25

10,87 ± 0,25

D

Shell

E

A

B

C

•

A ± 0,13

24,99

33,32

47,04

63,50

B ± 0,25

16,33

24,66

38,38

54,84

C ± 0,38

30,89

39,10

53,09

69,40

D ± 0,25

19,28

27,51

41,30

57,71

E ± 0,05

1,145

4,80

2,80

F ± 0,05

2,29

Mounting options, page 38

Panel cutout, page 39

Accessories, page 33

Dimensions shown in mm

Specifications and dimensions subject to change

8

www.ittcannon.com
