89096-902LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 89096-902LF

89096-902LF: DescriptionBoard Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal,; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

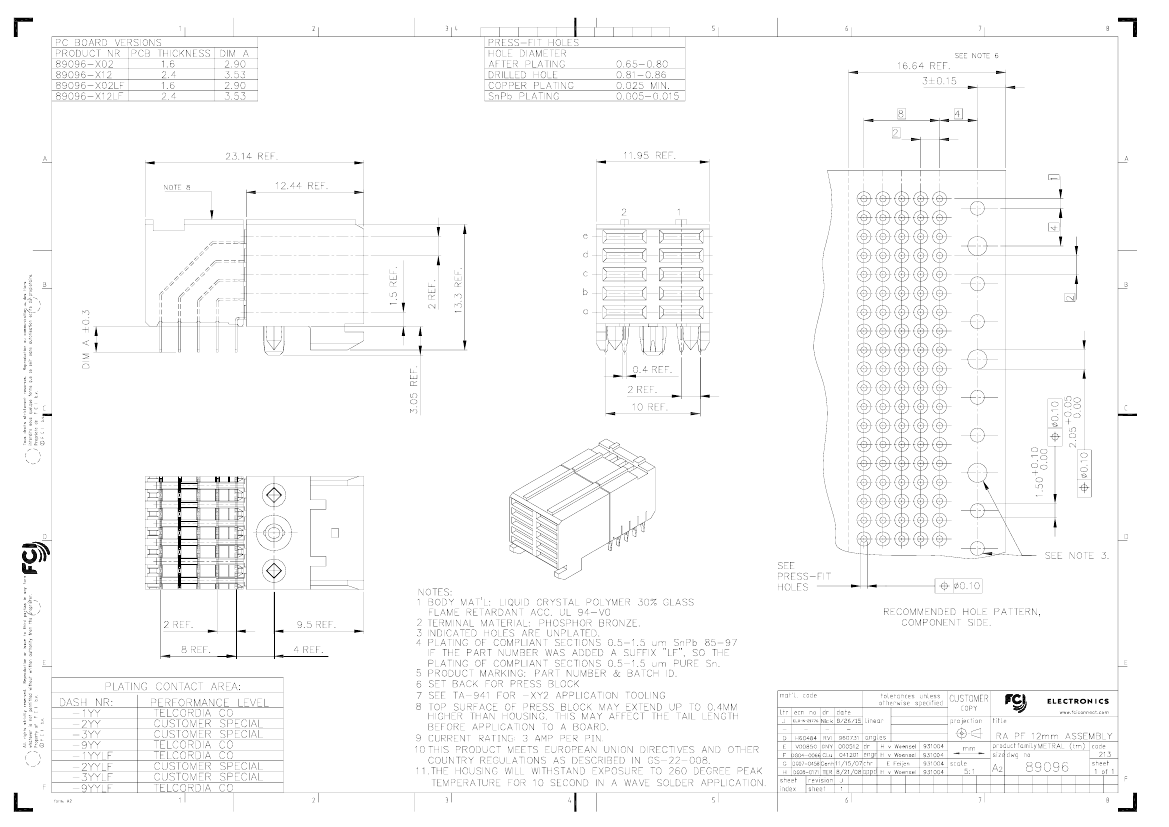

89096-902LF Overview

Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal,

89096-902LF Parametric

Parameter Name	Attribute value
Objectid	1783878286
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN (59)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	10
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDS: Rev :J

STATUS:Released

Printed: Aug 28, 2015

89096-902LF Related Products

	89096-902LF	89096-212	89096-112LF	89096-112	89096-902	89096-912	89096-312	89096-912LF
Description	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal,	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Natural Insulator, Receptacle	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle	Board Connector, 10 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal
Reach Compliance Code	compliant	unknown	compliant	unknown	unknown	unknown	unknown	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	10	10	10	10	10	10	10	10
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-	Amphenol
Body/casing type	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-
Manufacturer's serial number	-	89096	-	89096	89096	89096	89096	-
Base Number Matches	-	-	1	1	1	1	1	1
