74AC11473D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 74AC11473D

74AC11473D: DescriptionBus Transceiver, AC Series, 1-Func, 9-Bit, Inverted Output, CMOS, PDSO28; Categorylogic logic; File Size110KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

74AC11473D Overview

Bus Transceiver, AC Series, 1-Func, 9-Bit, Inverted Output, CMOS, PDSO28

74AC11473D Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	AC
JESD-30 code	R-PDSO-G28
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	9
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

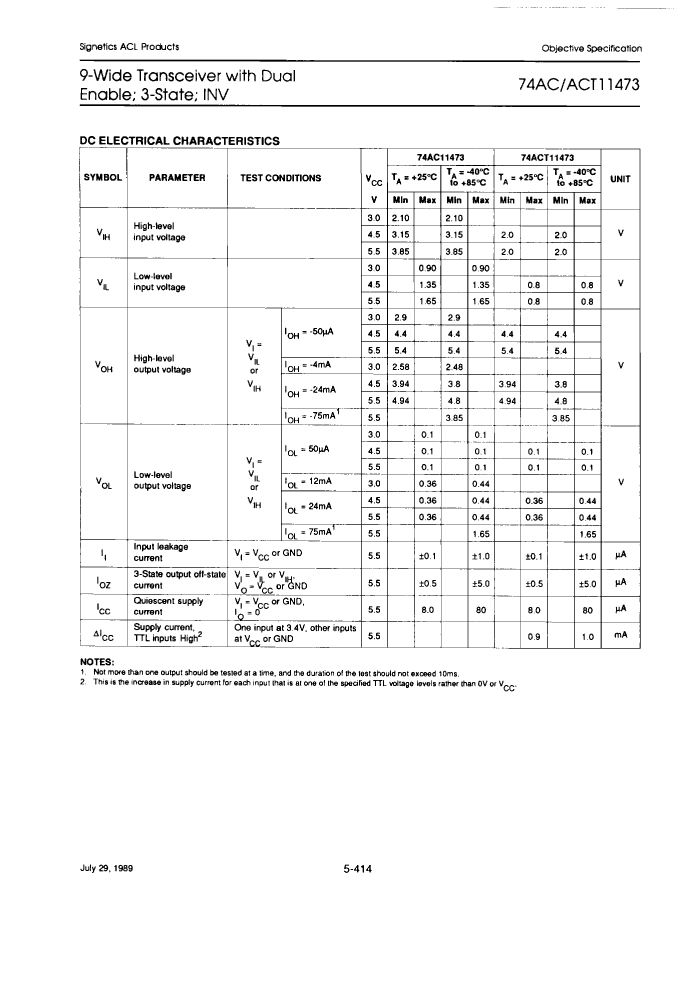

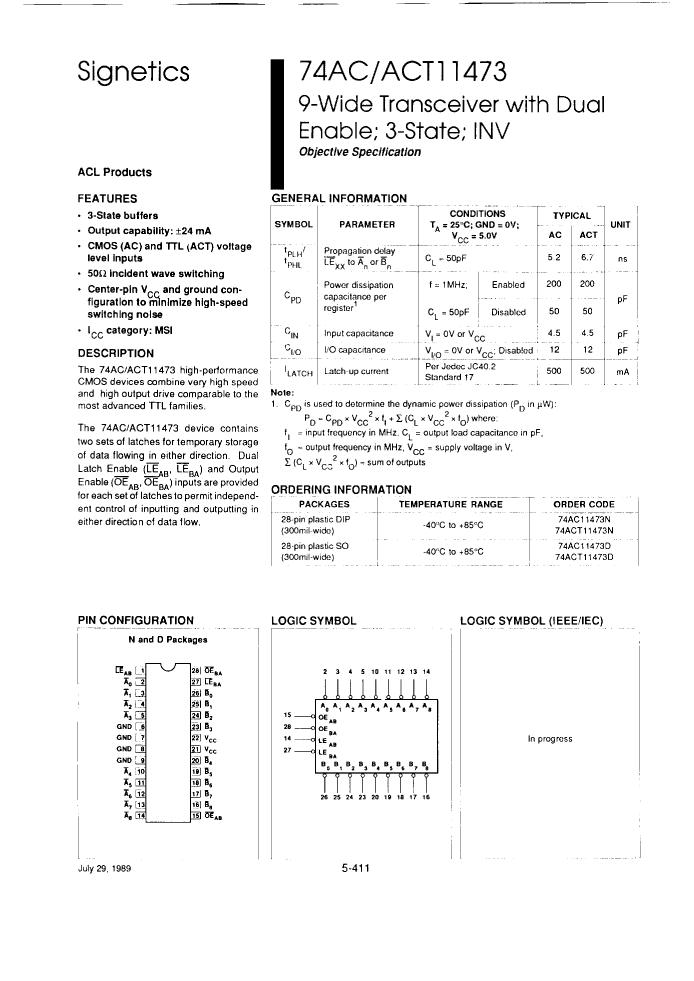

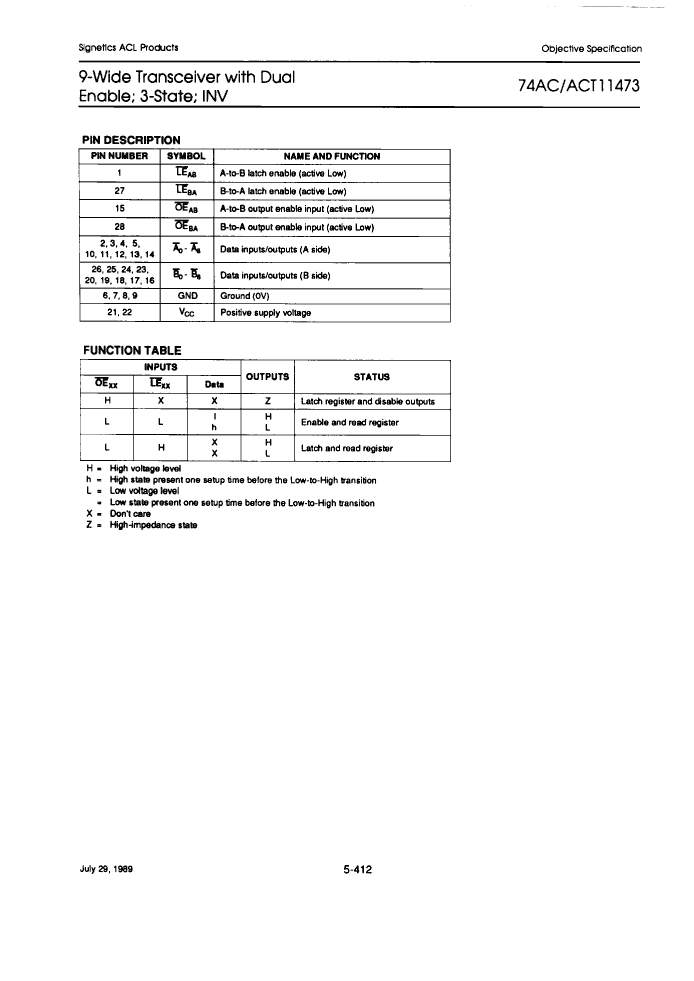

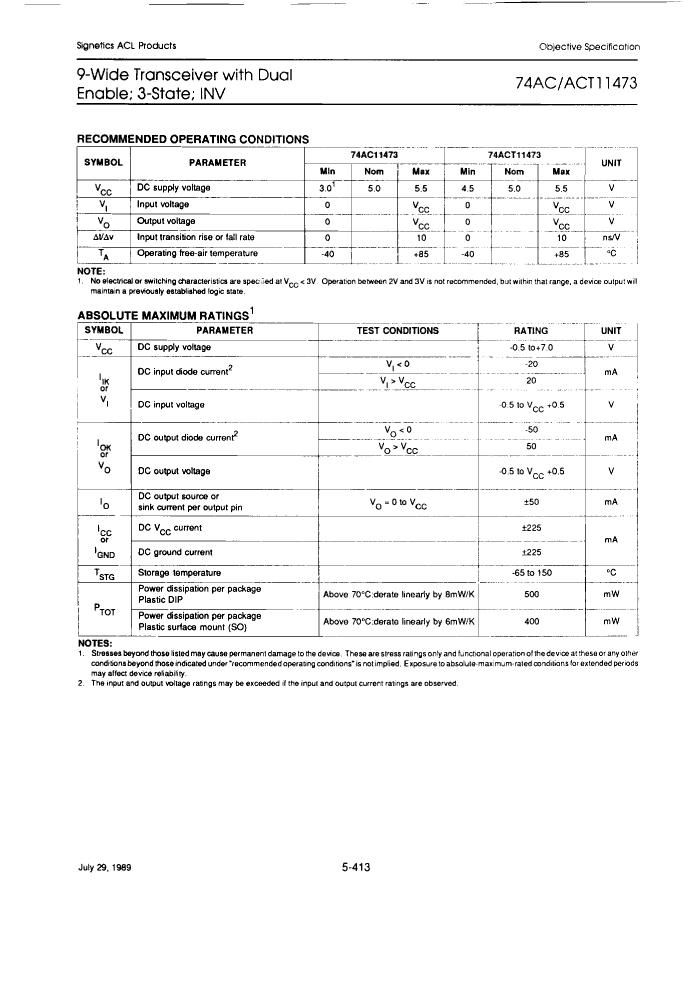

Preview

Download Datasheet

View All

74AC11473D Related Products

	74AC11473D	74ACT11473N	74ACT11473D	74ACT11473D-T	74AC11473D-T	74AC11473N
Description	Bus Transceiver, AC Series, 1-Func, 9-Bit, Inverted Output, CMOS, PDSO28	Bus Transceiver, ACT Series, 1-Func, 9-Bit, Inverted Output, CMOS, PDIP28	Bus Transceiver, ACT Series, 1-Func, 9-Bit, Inverted Output, CMOS, PDSO28	Bus Transceiver, ACT Series, 1-Func, 9-Bit, Inverted Output, CMOS, PDSO28	Bus Transceiver, AC Series, 1-Func, 9-Bit, Inverted Output, CMOS, PDSO28	Bus Transceiver, AC Series, 1-Func, 9-Bit, Inverted Output, CMOS, PDIP28
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	AC	ACT	ACT	ACT	AC	AC
JESD-30 code	R-PDSO-G28	R-PDIP-T28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDIP-T28
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	9	9	9	9	9	9
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	28	28	28	28	28	28
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	3 V	4.5 V	4.5 V	4.5 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
