21-5227 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 21-5227

21-5227: DescriptionCircular Connector, Steel, Female; Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size29KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

21-5227 Overview

Circular Connector, Steel, Female; Male, Solder Terminal, Receptacle

21-5227 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	TRI-START, MAX CONTACTS (SERIES)=128
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact point gender	FEMALE; MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT
Filter function	YES
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	FTV
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	STEEL
Housing size	9; 11; 13; 15; 17; 19; 21; 23; 25
Termination type	SOLDER
Base Number Matches	1

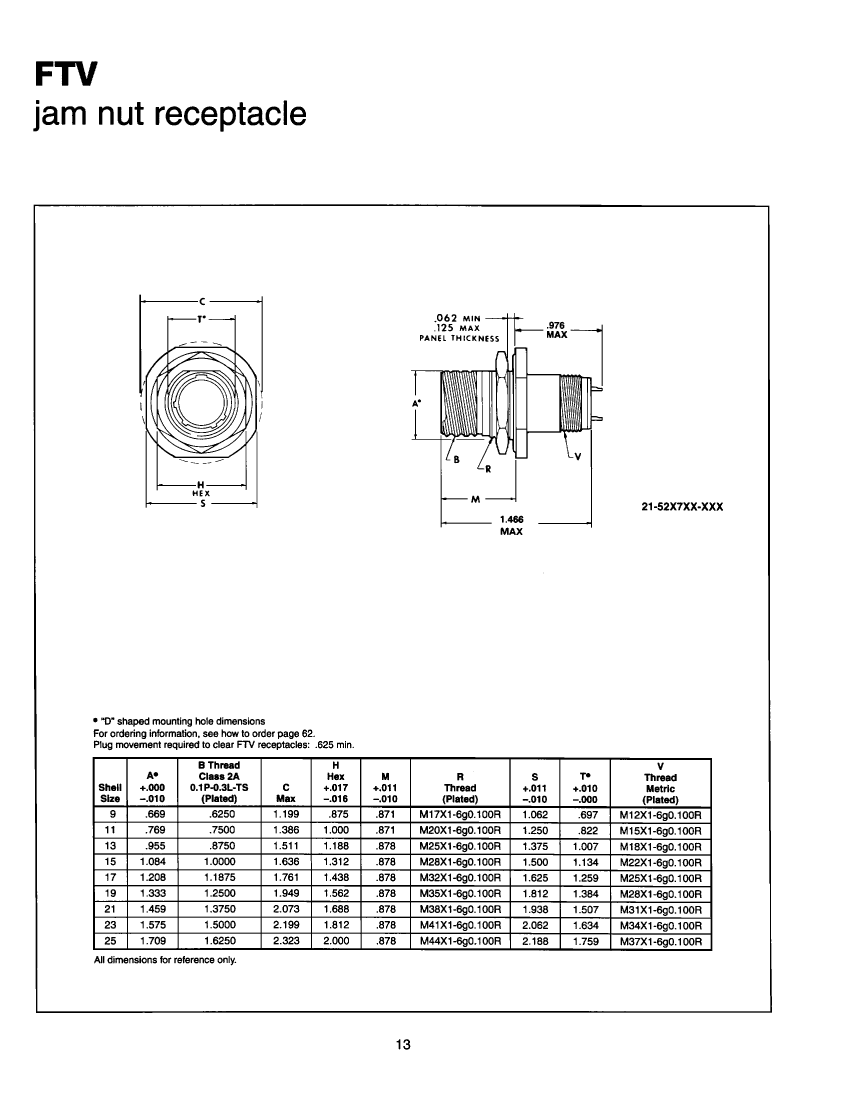

Preview

Download Datasheet

View All

21-5227 Related Products

	21-5227	21-5207	21-5217	21-5257	21-5277	21-5287	21-5297
Description	Circular Connector, Steel, Female; Male, Solder Terminal, Receptacle	Circular Connector, Steel, Female; Male, Solder Terminal, Receptacle	Circular Connector, Steel, Female; Male, Solder Terminal, Receptacle	Circular Connector, Steel, Female; Male, Solder Terminal, Receptacle	Circular Connector, Steel, Female; Male, Solder Terminal, Receptacle	Circular Connector, Steel, Female; Male, Solder Terminal, Receptacle	Circular Connector, Steel, Female; Male, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	TRI-START, MAX CONTACTS (SERIES)=128	TRI-START, MAX CONTACTS (SERIES)=128	TRI-START, MAX CONTACTS (SERIES)=128	TRI-START, MAX CONTACTS (SERIES)=128	TRI-START, MAX CONTACTS (SERIES)=128	TRI-START, MAX CONTACTS (SERIES)=128	TRI-START, MAX CONTACTS (SERIES)=128
Back shell type	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR	CIRCULAR CONNECTOR
Contact point gender	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE	FEMALE; MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO
Environmental characteristics	CORROSION RESISTANT	CORROSION RESISTANT	CORROSION RESISTANT	CORROSION RESISTANT	CORROSION RESISTANT	CORROSION RESISTANT	CORROSION RESISTANT
Filter function	YES	YES	YES	YES	YES	YES	YES
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	FTV	FTV	FTV	FTV	FTV	FTV	FTV
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	9; 11; 13; 15; 17; 19; 21; 23; 25	9; 11; 13; 15; 17; 19; 21; 23; 25	9; 11; 13; 15; 17; 19; 21; 23; 25	9; 11; 13; 15; 17; 19; 21; 23; 25	9; 11; 13; 15; 17; 19; 21; 23; 25	9; 11; 13; 15; 17; 19; 21; 23; 25	9; 11; 13; 15; 17; 19; 21; 23; 25
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-
Base Number Matches	1	1	1	1	1	1	-
Shell surface	-	CHROMATE	BRIGHT CADMIUM	GOLD OVER NICKEL	CADMIUM OVER NICKEL	BRIGHT NICKEL	CADMIUM OVER NICKEL
