61535 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 61535

61535: DescriptionVariable Attenuator, 1000MHz Min, 2000MHz Max, 1.5dB Insertion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size316KB，1 Pages; ManufacturerAnaren; Websitehttp://www.anaren.com/

Download Datasheet Parametric View All

61535 Overview

Variable Attenuator, 1000MHz Min, 2000MHz Max, 1.5dB Insertion Loss-Max

61535 Parametric

Parameter Name	Attribute value
Maker	Anaren
Reach Compliance Code	unknown
Nominal attenuation	60 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum insertion loss	1.5 dB
Maximum operating frequency	2000 MHz
Minimum operating frequency	1000 MHz
RF/Microwave Device Types	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.65
Base Number Matches	1

Preview

Download Datasheet

View All

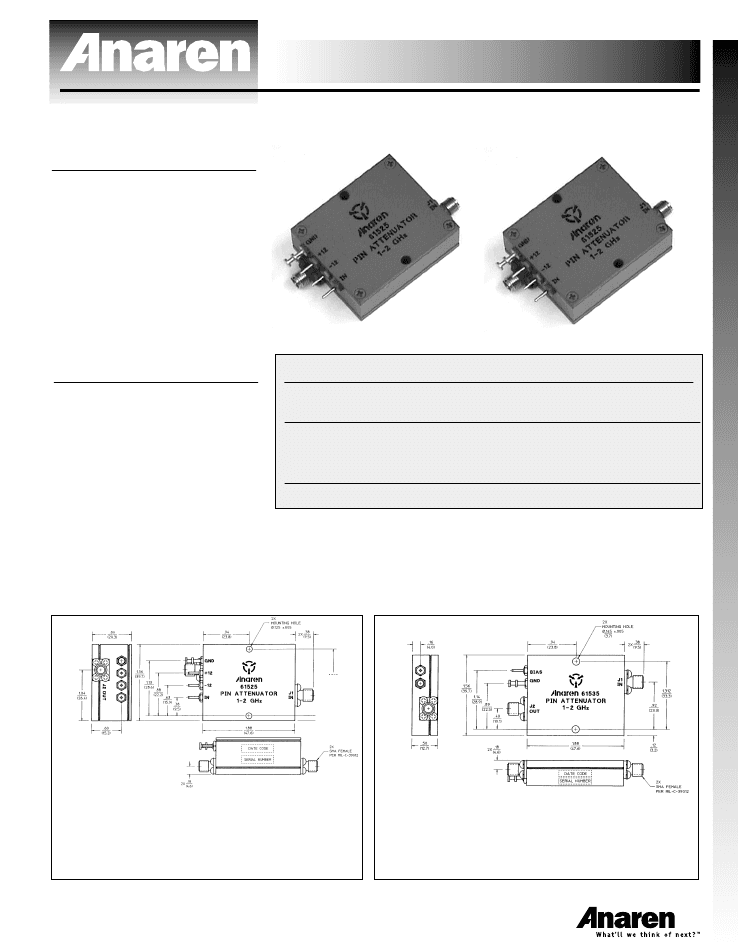

Model 61525 / 61535

Attenuators

PIN Diode

Applications

• Load Sensing Devices

• Precision Attenuation

Controllers

• Instrumentation

Aluminum Cased Connectorized Components

Features

• Military Grade

• Low VSWR

• Flat Response

• Connectors Per MIL-C39012

Electrical Specifications

Model Number

Linearized

Current Control

Frequency

dB Min/Typ

Dynamic Range

dB Max

Insert. Loss

Max : 1

6 1525

6 1535

1.0-2.0

Linearity

dB Max

Speed

nanosec.

1.5

VSWR

In. Loss/Atten :1

Flatness

dB Max

±2.5

±3

650

1.4/1.65

Note:

Impedance: 50 ohms nominal. Meets MIL-E-5400 Class 3 Requirements. Additional screening available

for military and space applications. Power handling: 0.4 W @ 2 GHz. Supply Voltages: +12v @ 120 mA and -12v

@ 40 ma Max. Control Voltage: 0 to 10 volts (6dB/Volt) Typical.

Electrical and Mechanical Specifications subject to change without notice.

Linearized

Specified

models have 10,000 ohm drive impedance and 100 KHz drive bandwidth.

to 45 dB, add ±1.5 dB to 60 dB.

Linearized models only.

Outline Drawing

Linearized

Current Controlled

NOTES:

DIMENSIONS ARE INCHES &

(MILLIMETERS)

MARKING: MARKING SHALL

BE IN ACCORDANCE WITH

ML-STD-130

FINISH:

EPOXY COATING PER ML-C-22750 COLOR CHIP 35180 (BLUE) PER FED

STD-595. OVER EPOXY PRIMER PER ML -P-23377

PRECAUTIONARY PACKAGING, HANDLING AND PROCESSING PROCEDURES

PER DOD-STD-1686. CLASS 1, AND DOD-HDBK-263, SHALL BE USED TO PREVENT

DAMAGE FROM ELECTROSTATIC, ELECTROMAGNETIC, AND OTHER ENVIRONMEN-

TAL FIELD FORCES

WEIGHT:

3.5 OZ MAX

NOTES:

DIMENSIONS ARE INCHES

& (MILLIMETERS)

MARKING: MARKING

SHALL BE IN ACCORDANCE WITH ML-STD-130

FINISH:

EPOXY COATING PER ML-C-22750 COLOR CHIP 35180 (BLUE) PER FED

STD-595. OVER EPOXY PRIMER PER ML -P-23377

PRECAUTIONARY PACKAGING, HANDLING AND PROCESSING PROCEDURES PER

DOD-STD-1686. CLASS 1, AND DOD-HDBK-263, SHALL BE USED TO PREVENT DAMAGE

FROM ELECTROSTATIC, ELECTROMAGNETIC, AND OTHER ENVIRONMENTAL FIELD

FORCES

Sales Desk USA:

Voice:

(800) 544-2414

Fax:

(315) 432-9121

Sales Desk Europe:

Voice:

(+44) 23 92 232392

Fax:

(+44) 23 92 251369
