81_SMC-50-0-1/111_NE: DescriptionRF SMC Connector, Male, Board Mount, Solder Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

81_SMC-50-0-1/111_NE Overview

RF SMC Connector, Male, Board Mount, Solder Terminal, Jack, ROHS COMPLIANT

81_SMC-50-0-1/111_NE Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: IEC 60169-9; MIL-STD-348A/312
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	BERYLLIUM COPPER
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	SMC
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

®

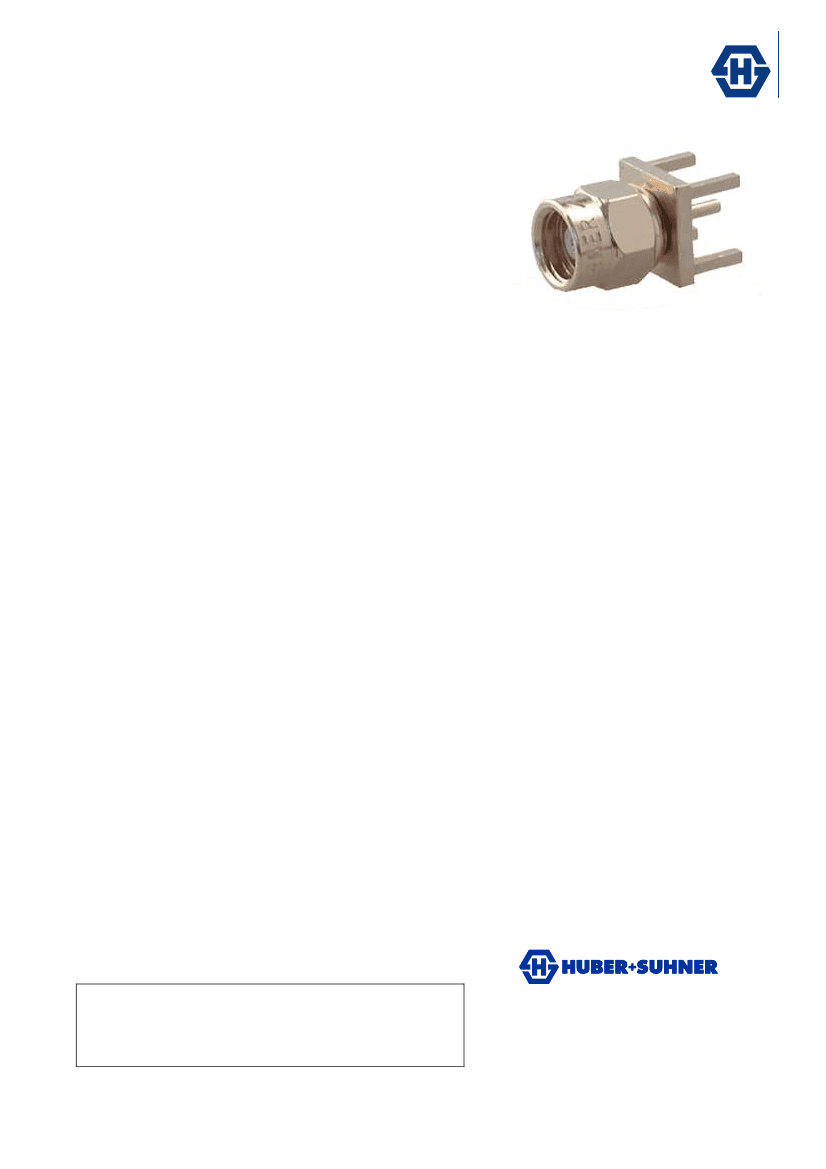

DATA SHEET

Coaxial PCB Connector: 81_SMC-50-0-1/111_N

Description

Rev.: C

Straight PCB plug

Interface Standards

IEC 60169-9_MIL-STD-348A/312_CECC 22140

Technical Data

Electrical Data

Impedance

Interface frequency max.

50

Ω

10 GHz

through holes

0.0021 kg

-65 °C to 165 °C

compliant

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Brass

DCA-00013025

81_SMC-50-0-1/111_NE

Surface Plating

Gold Plating (Nickel underplated)

Mechanical Data

Board mounting type

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Material Data
