31046104 Overview

Plugcon Header Type 046, 4 Pole, 5MM, Thr 260 Degrees

31046104 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	METZ CONNECT
Reach Compliance Code	compliant
Other features	STANDARD: UL 94V-0, PA46
Fastening method	CONNECTOR
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	4
Rated voltage	500 V
safety certificate	CUL; SEV; UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

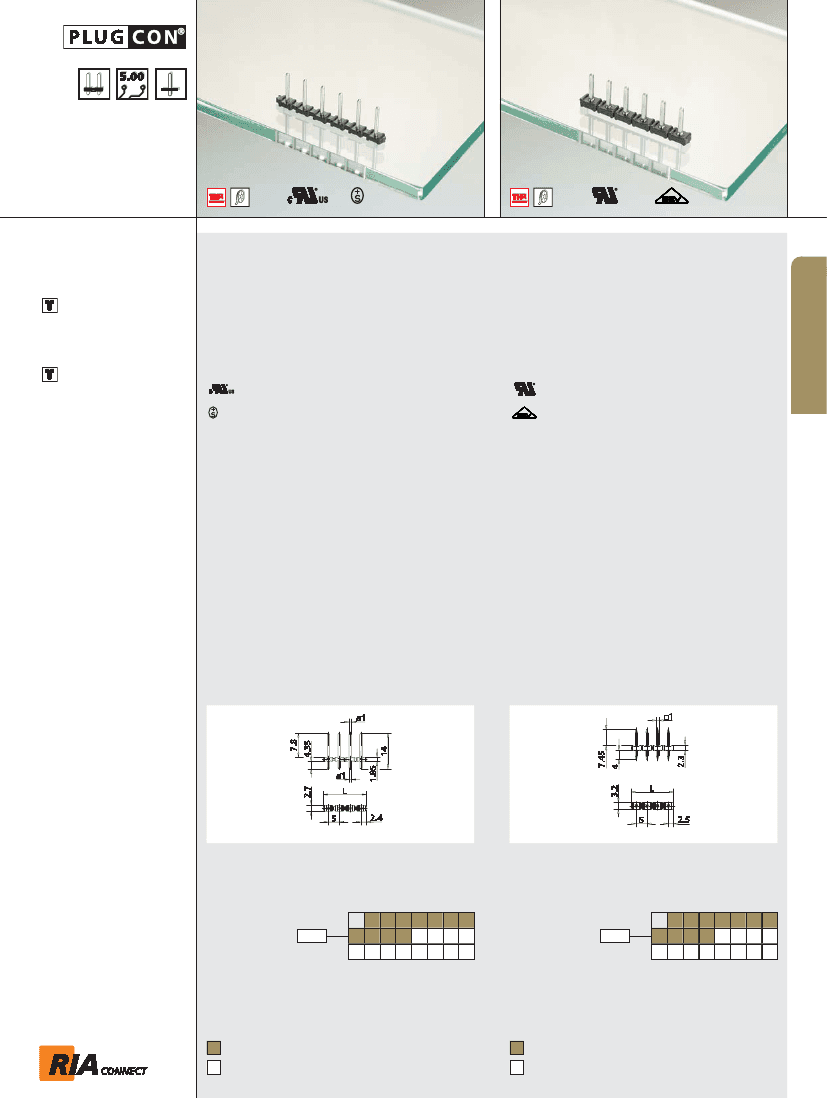

127

Terminal blocks

Type 046

Type 157

page 91

Type 046

Header, centerline 5 mm / 0.197 inches, vertical

mounting, designed for THR, optional Tape on Reel

packaging for automated processing, round contact

pins 1.3 mm / 0.051 inches

Type 048

Header, centerline 5 mm / 0.197 inches, vertical

mounting, square contact pins 1 mm / 0.039 inches,

optional Tape on Reel packaging for automated

processing

Type 048

Type 207

page 92

Technical Data

V/A

300 / 10

250 V / 4 kV / 10 A

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 4 mm

Insulating material class

CTI 400

Overvoltage category

III

Pollution degree

Rated voltage

250

500

Rated test voltage

2.5

Protection category according

to IEC 529

IP00

Solder pin dimension

1 mm

Recommended pc board hole

dia.

Ø 1.3 mm

Solder pin length

4.35 mm

Pole size

2 - 24

Color

black

Technical Data

V/A

300 / 15

250 V / 4 kV / 16 A

Insulation co-ordination according to EN 60664-1

Clearance and creepage distances min. 4 mm

Insulating material class

CTI 400

Overvoltage category

III

Pollution degree

Rated voltage

250

500

Rated test voltage

2.5

Protection category according

to IEC 529

IP00

Solder pin dimension

1.0 x 1.0 mm

Recommended pc board hole

dia.

Ø 1.5 mm

Solder pin length

4 mm

Pole size

2 - 24

Color

black

Note for Type 046

Packaging for automated

processing is available on

demand. Please do not

hesitate to contact us.

Dimensions in mm

1 mm = 0.0394 in.

Dimensions in mm

1 mm = 0.0394 in.

L = (pole size - 1) x centerline + 4.8 mm / 0.189 inches

L = (pole size - 1) x centerline + 5 mm / 0.197 inches

Part numbers (P/N)

Type 046

centerline 5 mm / 0.197 inches

(information: page 110)

Complete the part number by

adding the pole size.

Part numbers (P/N)

Type 048

(information: page 110)

Complete the part number by

adding the pole size.

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

centerline 5 mm / 0.197 inches

02 03 04 05 06 07 08

09 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

P/N

310461

P/N

310481

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.

Standard pole sizes

Available on demand. Minimum order quantity 5000

pieces per item.
