Biconic Connectors and Accessories

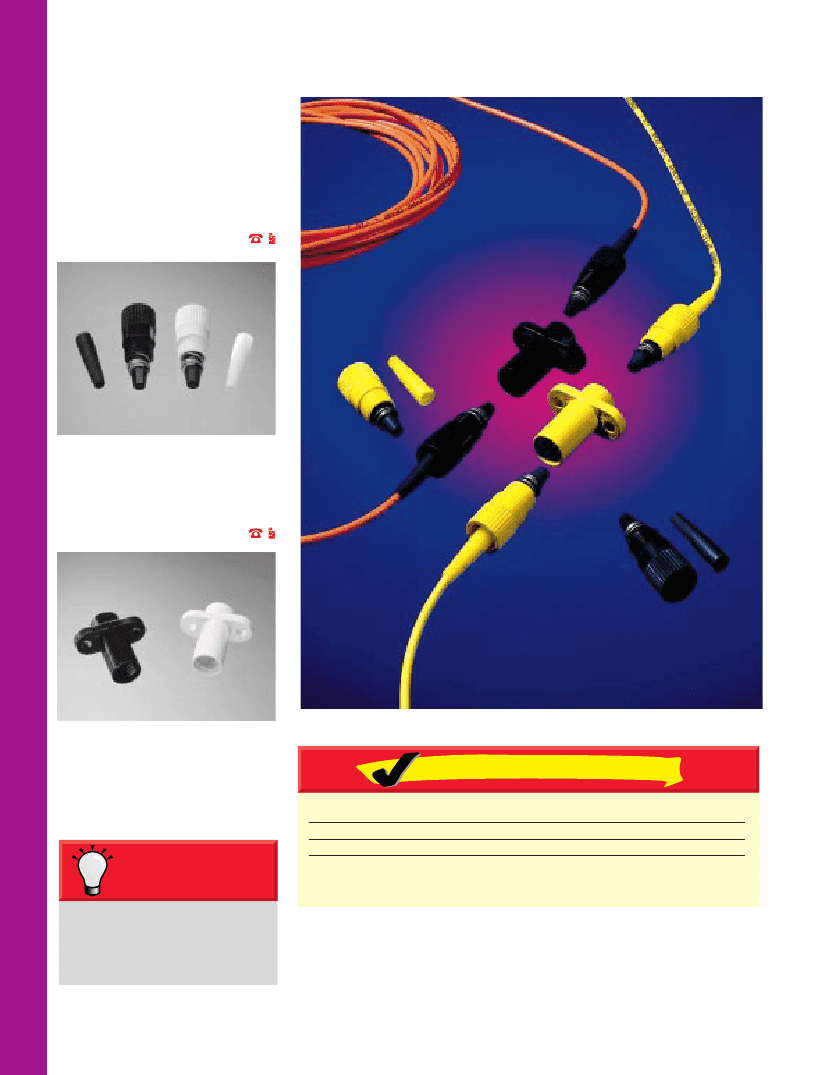

The Biconic connector is a conical
connector widely used throughout the
telecommunications industry.
Biconic couplings and attenuators
have been engineered with a precision
sleeve within a flanged or snap-in
housing.
Field Mountable Connectors,
Biconic
323
Connector package contains one
pre-assembled plug’ plus dust cap
and mounting parts (insert, shrink
tube and strain relief).
Couplings, Biconic
322
324
The flanged coupling is used for direct
mounting onto a fiber termination
panel. A snap-in coupling is used with
a bay receptacle in a variety of fiber
distribution panels available from 3M.
Features — Benefits
Biconic Connectors, Couplings, and Attenuators
Conical connector
Field mountability
Minimizes wear of sleeve and plug
Mountable on all common fiber sizes
Comparable to fiber’s coefficient of thermal
expansion
Product Referral
Generator
Photodyne™ Test Equipment pg. 200
Fiber Distribution Units
Biconic Cable Assemblies
pg. 184
pg. 132
Proprietary plug material
154
3
Specifications for Biconic Connectors
Multimode
Product number
Fiber size (µm)
Attenuation (dB) field mount
Reflection (dB) field mount
Connector durability (dB)
Operating temperature
connector only (cable dependent)
Storage temperature
Material
Plug
Housing
Boot
Backbone
Identification
Crimp area
Housing and boot
Single-mode
8001
126
0.6 typical
-30 typical
<0.2 change/500 matings
-40° to 80°C
(-40° to 176°F)
-55° to 80°C (-67° to 176°F)
70% silica filled epoxy
Engineering Thermoplastic
Estane
®
(non-flammable)
Aluminum
Gold
Yellow
6000
125
0.6 typical
-14 typical
6001
125+
8002
127
Biconic Connectors and Accessories
<0.2 change/1000 matings
-40° to 80°C
(-40° to 176°F)
-55° to 80°C (-67° to 176°F)
70% silica filled epoxy
Engineering Thermoplastic
Estane
®
(non-flammable)
Aluminum
Gold
Black
Ordering Information
Packaging
Minimum order
UPC
1/cs.
1 each
054007-63133
1/cs.
1 each
054007-63134
1/cs.
1 each
054007-63124
1/cs.
1 each
054007-63125

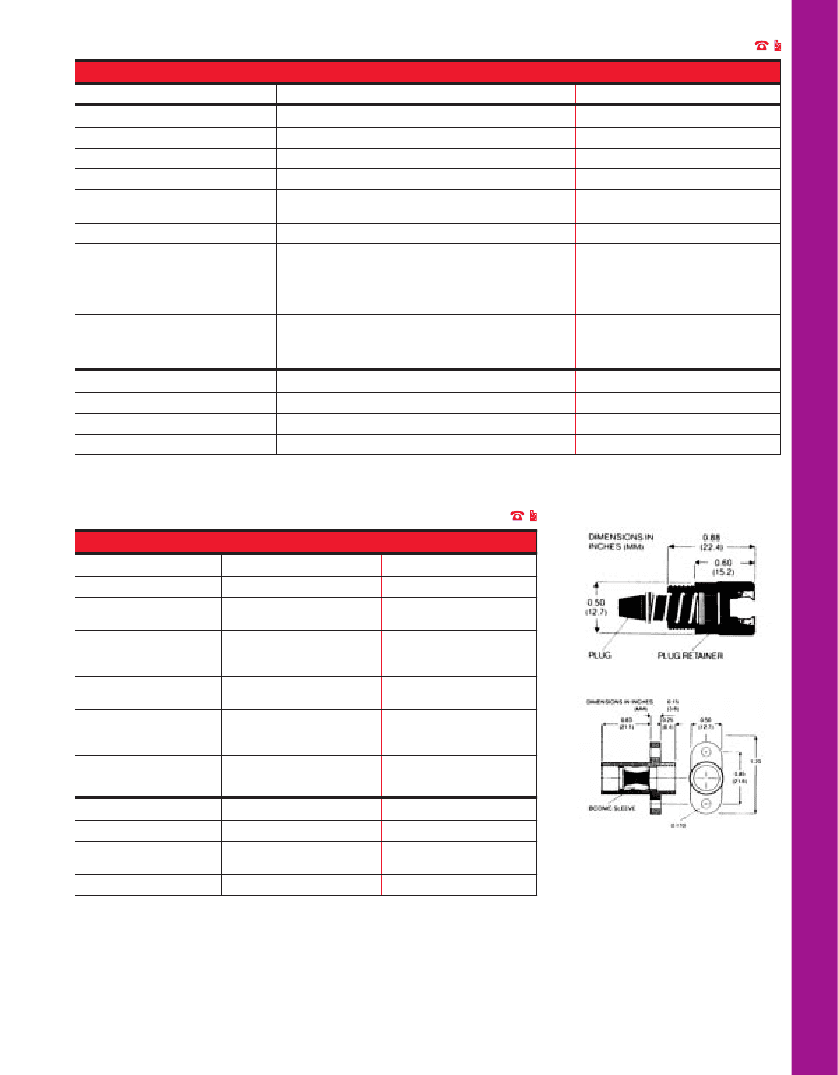

Specifications for Biconic Couplings
Multimode
Product number
Housing type
Connector durability
Operating temperature
connector only
(cable dependent)
Storage temperature
Material
Sleeve
Housing
Identification
Coupling
Single-mode
8010
Flanged
6010
Flanged
6011
Snap-in
8011
Snap-in
<0.2 dB change/
1000 matings
-40° to 80°C
(-40° to 176°F)
-55° to 80°C
(-67° to 176°F)
70% silica filled epoxy
Polymer
Black
<0.2 dB change/
500 matings
-40° to 80°C
(-40° to 176°F)
-55° to 80°C
(-67° to 176°F)
70% silica filled epoxy
Polymer
Yellow
Ordering information
Packaging
Minimum order
UPC
1/cs.
1 each
1/cs.
1 each
1/cs.
1 each
[89000416]
1/cs.
Biconic Coupling
1 each
[749543]
054007-63089 054007-63090 054007-63087 054007-63088
155
Phone 800/426 8688 Fax 800/626 0329
3

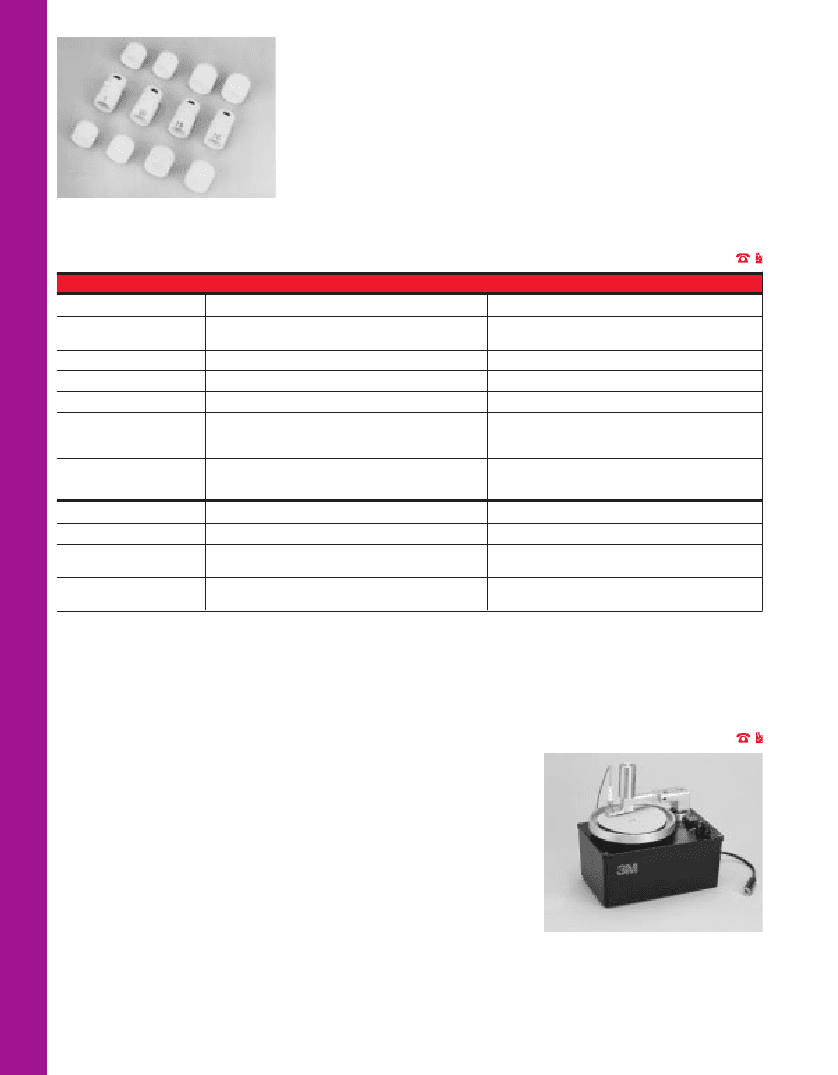

Biconic Single-mode Attenuators
325
Specifications for Biconic Fixed Attenuators Single-mode
Product number
Attenuation 1300 nm (dB)
Housing design
Operating temperature
Storage temperature
Reflection
Material
Sleeve
Housing
Attenuator housing
1300 nm
8021
5 ± 1 dB
8022
10 ± 1 dB
8023
15 ± 1.5 dB
8024
20 ± 1.5 dB
8025
5 ± 1 dB
8026
10 ± 1 dB
8027
15 ± 1.5 dB
8028
20 ± 1.5 dB
Flanged
-40° to 80°C (-40° to 176°F)
-55° to 80°C (-67° to 176°F)
-14 dB typical
70% silica filled epoxy
Polymer
White
Snap-in
(requires FDU with bay receptacles)
-40° to 80°C (-40° to 176°F)
-55° to 80°C (-67° to 176°F)
-14 dB typical
70% silica filled epoxy
Polymer
White
Ordering information
Packaging
Minimum order
UPC
1/cs.
1 each
[318292]
054007-
63095
1/cs.
1 each
054007-
63096
1/cs.
1 each
054007-
63097
1/cs.
1 each
054007-
63098
1/cs.
1 each
054007-
63091
1/cs.
1 each
054007-
63092
1/cs.
1 each
[930283]
054007-
63093
1/cs.
1 each
[930284]
054007-
63094
Fiber Connector Termination Kits and
Accessories
3M Termination Kits and Accessories
provide all tools and materials
necessary to terminate the major fiber
optic connectors in the industry today.
A variety of kits are available to meet
your needs in terminating all kinds of
connectors.
There are a number of conversion
kits to make it easy to incorporate
both an epoxy process and a hot
melt process into one kit, as well as
terminate a variety of connector types
from one kit. Complementary products
such as the Hot Melt Portable Heater
and One-Step Polishing Machine
provide increased productivity and
ease of use in completing the
termination process.
Most of the kit parts are available
separately to supplement your existing
kits and replenish consumables.
Videos, training classes and detailed
manuals are available to assure you are
achieving the best results. Contact 3M
Customer Service or your local Sales
Representative for details.
One Step-Polishing
The 6850 One-Step Polishing Machine
features a dry, single-paper technology
for polishing the ferrule of a single
hot melt connector. It is a 12-volt DC
unit that provides hands-free operation
and delivers consistent performance.
Because no wet paper is used, no water
is necessary and no clean up is required.
3M also offers connector
termination kits utilizing the one-step
polishing procedure for a variety of hot
melt connectors. The 6150-A and
6151-A Termination Kits contain all
materials necessary to terminate either
6850 One Step Polishing Machine
326
hot melt bayonet connectors or the hot
melt push-pull connectors (both are
compatible with the ST* connector).
There are also adapters to do FC and
SC connectors.
156
3
Kit Contents for Hot Melt Portable Heater
Description
Heater
Battery charger, 120V
Two Insert/Removal Tools
Battery pack, 12V
Instruction Manual
Product number
Not available separately
Not available separately
Not available separately
Not available separately
Not available separately
UPC
—
—
Fiber Connector Termination Kits and Accessories
—
—
—
Specifications for Hot Melt Portable Heater
327
Size H x W x D cm (in.)
Weight grams (lbs.)
Number of connectors per charge
Time to recharge battery
Safety requirements
6.4 x 11.4 x 8.3 (2.5 x 4.5 x 3.25)
926 (2.04)
25
2 hours (2.5 hrs. for 230V)
Heater
120V Battery charger
230V Battery charger
UL Listed
UL/CSA Listed
VDE Listed
Ordering Information
Product number/ part number
6850-A Polishing Machine with 110V converter,
one step
6850-B Polishing Machine (no converter), one step
6890 Hot Melt Portable Heater, 120V Kit
Pkg.
1/cs.
1/cs.
1/cs.
Min.
order
1 ea.
1 ea.
1 ea.
1 ea.
1 ea.
1 ea.
4 pkg.
UPC
054007-11516
054007-11517
054007-92330
054007-92700
054007-92699
054007-92701
054007-85930
Additional accessories for 6850 Automatic Polisher
ST* Holder (6892)/ 80-6107-6098-7
1/cs.
SC Holder (6392)/ 80-6107-6099-5
1/cs.
FC Holder (6292)/80-6108-4400-5
1/cs.
Lapping Film, (6192 B) green, 2 µm 4" dia.
4 pkg.
with center hole /60-6500-2345-4
50 shts./pkg.
157
3
Hot Melt and Crimplok Field Termination Kits
Description
Connector styles
Quantity
Part number
Items with part numbers
can be ordered separately.
6955
Bayonet ST*
and SC
Crimplok
6350
SC
FC/PC
Hot Melt
•
6351
Phone 800/426 8688 Fax 800/626 0329
Adhesive Type
Hot Melt Oven 110V
Hot Melt Oven 220V
Crimp Tool
Crimp Tool
Activation Tool, SC/ST
Fiber Optic Stripper (6955-S)
1 each
1 each
1 each
1 each
1 each
1 each
Not available separately
Not available separately
78-8073-8169-0
80-6109-3725-4
80-6109-3662-9
80-6109-3726-2
60-6500-2346-2
78-8073-7527-0*
80-6107-5575-5
78-8073-7525-4
80-6106-2569-3
80-6106-2552-9
80-6108-4630-7
80-6108-4614-1
78-8073-8168-2
78-8073-7523-9
80-6106-2590-9
78-8073-7677-3
80-6109-3727-0
Not available separately
Not available separately
80-6104-4314-7
80-6104-5332-8
80-6104-4344-4
80-6104-4324-6
80-6104-4349-3
80-6104-4353-5
Not available separately
80-6105-8050-0
34-7033-9146-5
78-8073-7529-6
78-8073-7572-6
78-8073-7660-9
60-6500-2344-7
80-6108-4532-5
80-6109-9061-8
VM76664
Hot Melt
•
•
•
•
•
•
•
•
•
•
•
One-Step Lap Film, green, 2 µm (6192A) 4 pkg. (50 shts./pkg.)
Polishing Jig
Polishing Jig (6891)
Polishing Pad, One-Step
Cooling Stand, Hot Melt (6191)
ST* Connector Holder (6190)
SC Connector Holders (SP-00504)
FC Connector Holders (SP-00505)
Stripping collars, SC, FC (Blue)
Stripping collar, PP/ST* (Silver round)
Scribe Carbide
ViewScope 100X
Crimplok Polishing Tool
Bottle, Iso Alcohol
Snips
Cable Stripper
No-Nik Stripper Mod 175 µm
ViewScope 100X with adapter
Lint Free Cloth
Pipe Cleaners, Lint Free
Jewelers Loupe 7X
Pocket Ruler, 152.4 mm (6")
Instruction Manual ST* 6100
Instruction Manual SC & FC/PC
Instruction Manual ST* 6102H
Instruction One-Step
Instruction Manual Crimplok ST*/SC
Lapping Film, gray, 5" dia., 15 µm
One-Step Lap Film, oblong, 2 µm
Crimplok Pouch
Instructional Video Hot Melt
2 each
1 pkg. (2/pkg.)
1 each
1 each
1 each (6/pkg.)
1 pkg. (4/pkg.)
1 pkg. (4/pkg.)
4 each
4 each
1 each
1 each
1 each
1 each
1 each
1 each
1 each
1 each
1 pkg. (100/pkg.)
1 pkg. (50/pkg.)
1 each
1 each
1 each
1 each
1 each
1 each
1 each
1 pkg. (20 shts./pkg.)
1 pkg. (50 shts./pkg.)
1 each
1 each
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Ordering information
Packaging
Minimum order
UPC
Note: Each kit has enough supplies to terminate 100-200 connectors. *Only one each in 6955.
1/cs.
1 each
051138-
58238
1/cs.
1 each
054007-
91968
1/cs.
1 each
054007-
91967
