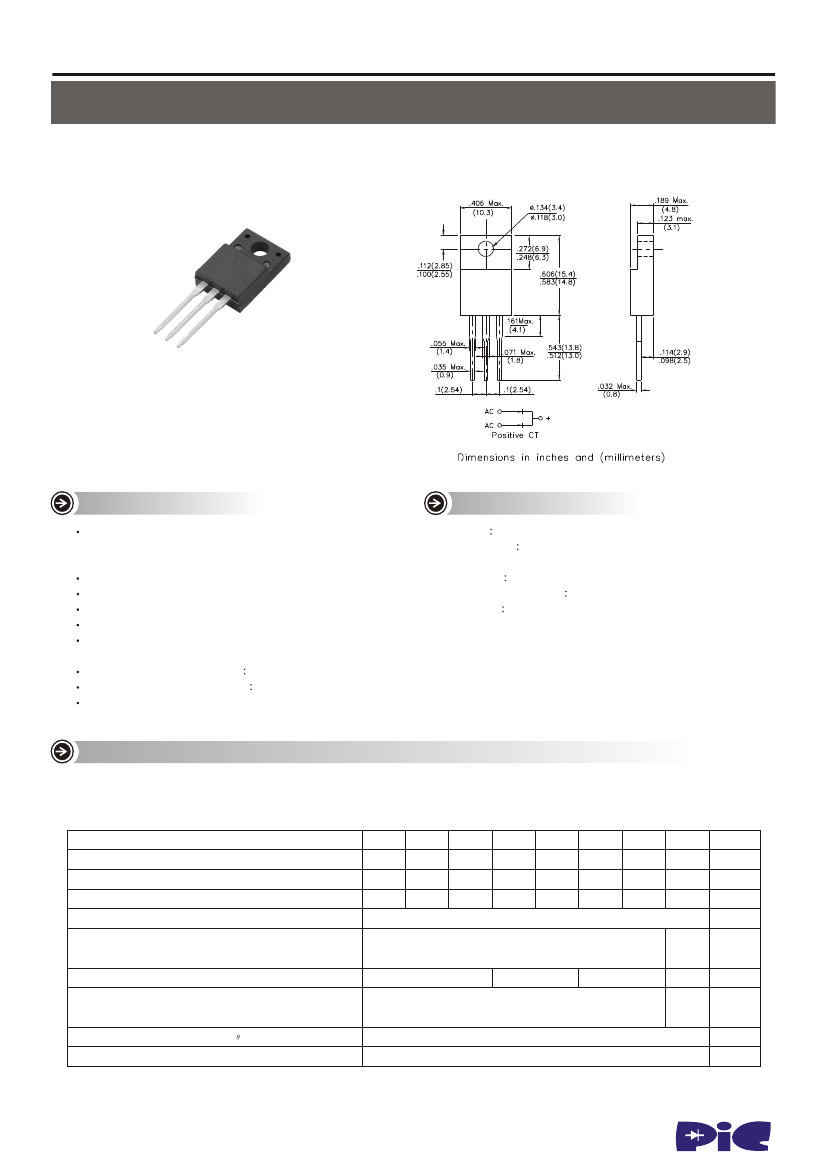

SB3020FCT thru SB30150FCT
SCHOTTKY BARRIER RECTIFIER
VOLTAGE - 20 TO 150 VOLTS
CURRENT - 30 AMPERES
ITO-220AB
FEATURES
Plastic Package has Underwriters Laboratory
Flammability Classification 94-0 utilizing
Flame Retardant Epoxy Molding Compound
Exceeds environmental standards of MIL-S-19500/228
Low power loss, gigh efficiency
Low Forward Voltage, high Current Capability
High surge Capability
For use low Voltage, high frequency inverters,
free wheeling, and polarity protection applications
High temperature soldering 260
o
C/10seconds at terminals
Pb free product are available 99% Sn above can meet RoHS
Environment substance directive request
MECHANICAL DATA
Case ITO220AB Molded plastic
Terminals Lead solderable per
MIL-STD-202, Method 208
Polarity As Marked on Body
Mounting Position Any
Weight 0.08ounces, 2.24gram
MAXIMUM RATIXGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load
For capacitive load, derate current by 20%
PARAMETER
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current at T
C
=90
0
C
Peak Forward Surge Current 8.3ms Single Half Sine-Wave
Superimposed on Rated Load (JEDEC Method)
Maximum Forward Voltage at 15A per element
Maximum DC Reverse Current at Rated T
C
=25
0
C
DC Blocking Voltage T
C
=100
0
C
Typical Junction Resistance Note R
JA
SB
3020FCT
SB
3030FCT
SB
3040FCT
SB
3050FCT
SB
3060FCT
SB
SB
SB
3080FCT 30100FCT 30150FCT
UNITS
Volts
Volts
Volts
Amps
20
14
20
30
21
30
40
28
40
50
35
50
30
275
60
42
60
80
56
80
100
70
100
150
105
150
200
0.75
0.85
0.95
0.1
7
100
Amps
Volts
mA
0
0.55
0.5
100
C/W
0
Operating and Storage Temperature Range T
J
NOTE:
1. Thermal Resistance Junction to Ambient
-55 to +150
C
www.paceleader.tw
1
SB3020FCT thru SB30150FCT
SCHOTTKY BARRIER RECTIFIER
RATINGS AND CHARACTERISTIC CURVES SB3020FCT THRU SB30150FCT
40
(20 ~ 40)
INSTANTANEOUS FORWARD CURRENT
25.0
AVERAGE FORWARD CURRENT
20.0
15.0
10.0
5.0
0
0
50
100
O
(50 ~ 60)
(80 ~ 150)
10
8
6
4
2
1.0
.8
.6
.4
.2
.1
150
.4
.5
.6
.7
.8
.9
1.0
1.1
CASE TEMPERATURE, C
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
Fig 1-FORWARDCURREN TDER ATINGCU RVE
Fig.2-TYPICA LINS TANTANEOUSFO RWARD
CHARACTERISTIC
INSTANTANEOUS REVERSE CURRENT, MILAMPERES
10
T
C
=10 0
O
C
PEAK FORWARD SURGE CURRENT,
200
180
160
140
120
100
80
60
40
20
1.0
T
C
= 75 C
0.1
T
C
= 25 C
O
O
0.01
0.00 1
0
1
2
5
10
20
50
100
0
100
200
300
NO. OF CYCLE AT 60Hz
Fig.3-TYPICA LREVERS ECHARACTERISTIC
400
350
CAPACITANCE, pF
300
250
200
150
0
1
2
5
10
20
Fig.4-MAXIMU MNON-REPETITIV ESURG ECURRENT
50 100 200
500
REVERSE VOLTAGE, VOLTS
Fig.5-TYPICA LJUNCTIONCA PACITANCE
www.paceleader.tw
2
