756-5401/040-010 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 756-5401/040-010

756-5401/040-010: DescriptionInterconnection Device; CategoryThe connector The connector; File Size225KB，2 Pages; ManufacturerWAGO; Websitehttps://www.wago.com/

Download Datasheet Parametric View All

756-5401/040-010 Overview

Interconnection Device

756-5401/040-010 Parametric

Parameter Name	Attribute value
Maker	WAGO
Reach Compliance Code	unknown
Connector type	INTERCONNECTION DEVICE
Base Number Matches	1

Preview

Download Datasheet

View All

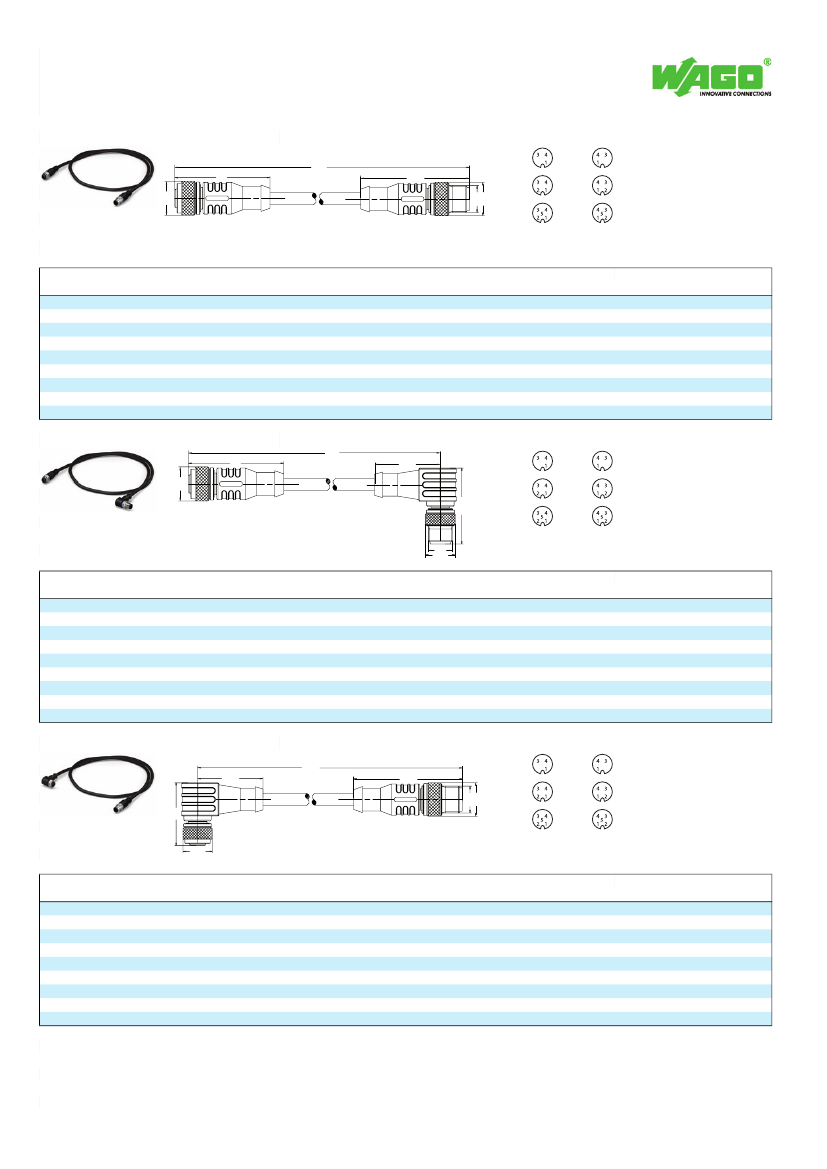

534

WAGO-I/O-SYSTEM 756

Sensor/actuator cables, both ends of the cable are fitted with plug/socket

M12 Socket

L*)

ø15

48,5

M12x1

M12 Plug

3-pole

socket

3-pole

plug

Pin 1 - 5: 0.34 mm²

brown (+)

white (Ö)

blue (-)

black (S)

gray

4-pole

socket

4-pole

plug

ø15

5-pole

socket

5-pole

plug

(mm)

M12/M12 Sensor/actuator cables, both ends of the cable are fitted with plug/socket

3-pole,

4-pole,

5-pole,

5-pole, shielded

M12 socket, straight/M12 plug, straight, 1.0 m

M12 socket, straight/M12 plug, straight, 2.0 m

M12 socket, straight/M12 plug, straight, 1.0 m

M12 socket, straight/M12 plug, straight, 2.0 m

M12 socket, straight/M12 plug, straight, 1.0 m

M12 socket, straight/M12 plug, straight, 2.0 m

M12 socket, straight, M12 plug, straight, 1.0 m

M12 socket, straight, M12 plug, straight, 2.0 m

Cable Ø

4.3 mm ± 0.2

4.7 mm ± 0.2

5.0 mm ± 0.2

6.5 mm ± 0.2

Item No.

756-5401/030-010

756-5401/030-020

756-5401/040-010

756-5401/040-020

756-5401/050-010

756-5401/050-020

756-5401/060-010

756-5401/060-020

Pack. Unit

M12 Socket

L*)

ø15

33,5

M12 Plug

3-pole

socket

3-pole

plug

Pin 1 - 5: 0.34 mm²

brown (+)

white (Ö)

blue (-)

black (S)

gray

4-pole

socket

4-pole

plug

(mm)

38,5

5-pole

socket

5-pole

plug

M12x1

ø15

M12/M12 Sensor/actuator cables, both ends of the cable are fitted with plug/socket

3-pole,

4-pole,

5-pole,

5-pole, shielded

M12 socket, straight/M12 plug, right angle, 1.0 m

M12 socket, straight/M12 plug, right angle, 2.0 m

M12 socket, straight/M12 plug, right angle, 1.0 m

M12 socket, straight/M12 plug, right angle, 2.0 m

M12 socket, straight/M12 plug, right angle, 1.0 m

M12 socket, straight/M12 plug, right angle, 2.0 m

M12 socket, straight, M12 plug, right angle, 1.0 m

M12 socket, straight, M12 plug, right angle, 2.0 m

Cable Ø

4.3 mm ± 0.2

4.7 mm ± 0.2

5.0 mm ± 0.2

6.5 mm ± 0.2

Item No.

756-5402/030-010

756-5402/030-020

756-5402/040-010

756-5402/040-020

756-5402/050-010

756-5402/050-020

756-5402/060-010

756-5402/060-020

Pack. Unit

M12 Socket

L*)

33,5

48,5

M12 Plug

3-pole

socket

3-pole

plug

Pin 1 - 5: 0.34 mm²

brown (+)

white (Ö)

blue (-)

black (S)

gray

M12x1

ø15

4-pole

socket

4-pole

plug

(mm)

ø15

5-pole

socket

5-pole

plug

M12/M12 Sensor/actuator cables, both ends of the cable are fitted with plug/socket

3-pole,

4-pole,

5-pole,

5-pole, shielded

M12 socket, right angle/M12 plug, straight, 1.0 m

M12 socket, right angle/M12 plug, straight, 2.0 m

M12 socket, right angle/M12 plug, straight, 1.0 m

M12 socket, right angle/M12 plug, straight, 2.0 m

M12 socket, right angle/M12 plug, straight, 1.0 m

M12 socket, right angle/M12 plug, straight, 2.0 m

M12 socket, right angle, M12 plug, straight, 2.0 m

Cable Ø

4.3 mm ± 0.2

4.7 mm ± 0.2

5.0 mm ± 0.2

6.5 mm ± 0.2

Item No.

756-5403/030-010

756-5403/030-020

756-5403/040-010

756-5403/040-020

756-5403/050-010

756-5403/050-020

756-5403/060-010

756-5403/060-020

Pack. Unit

* Cable length

Custom cable lengths upon request

WAGO Kontakttechnik GmbH & Co. KG

Subject to design changes

18.02.2010

Postfach 2880 - D-32385 Minden

Hansastr. 27 - D-32423 Minden

Phone: +49(0)571/887-0

Fax: +49(0)571/887-169

E-Mail: info@wago.com

www.wago.com
