74F125D-T datasheet, PDF - EEWORLD Datasheet

74F125D-T: DescriptionBus Driver, F/FAST Series, 4-Func, 1-Bit, True Output, TTL, PDSO14; Categorylogic logic; File Size120KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric View All

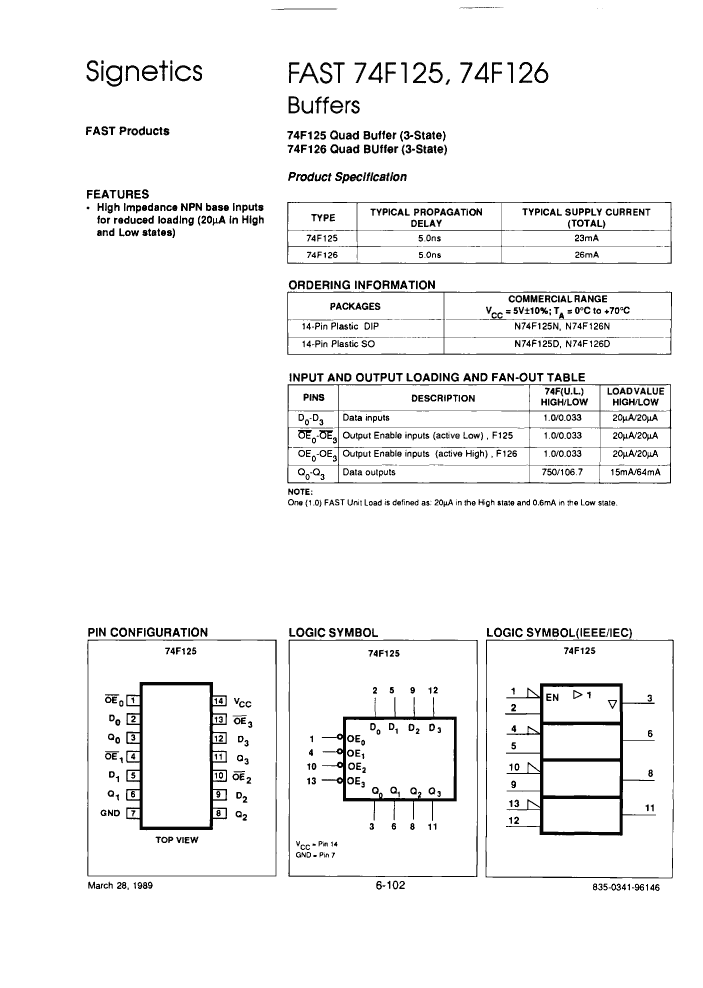

74F125D-T Overview

Bus Driver, F/FAST Series, 4-Func, 1-Bit, True Output, TTL, PDSO14

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
series	F/FAST
JESD-30 code	R-PDSO-G14
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	1
Number of functions	4
Number of ports	2

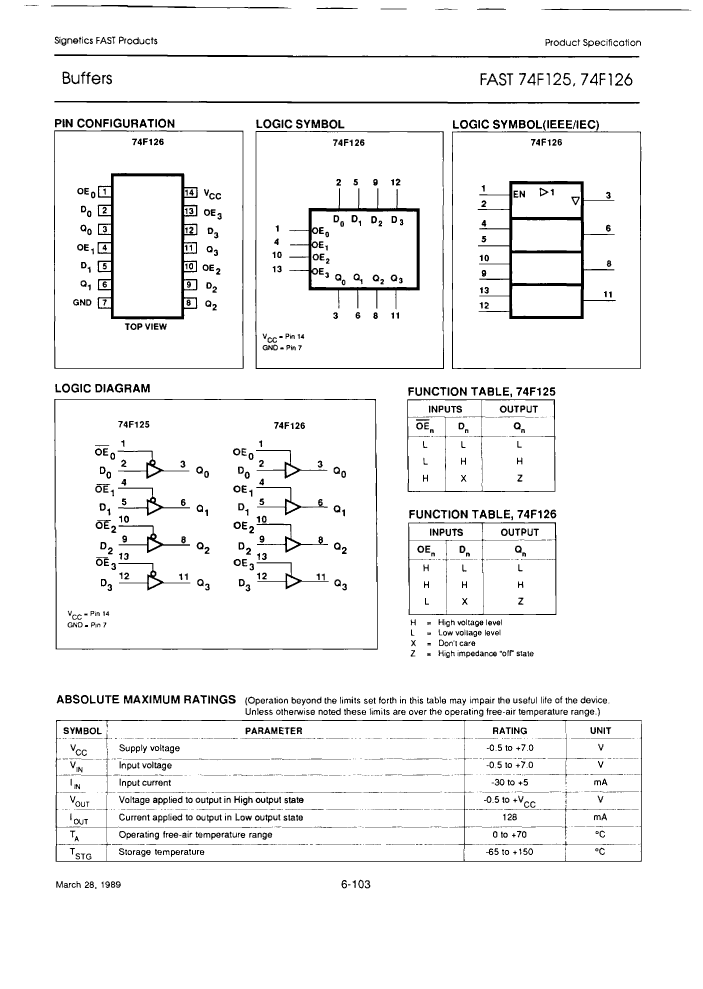

Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE

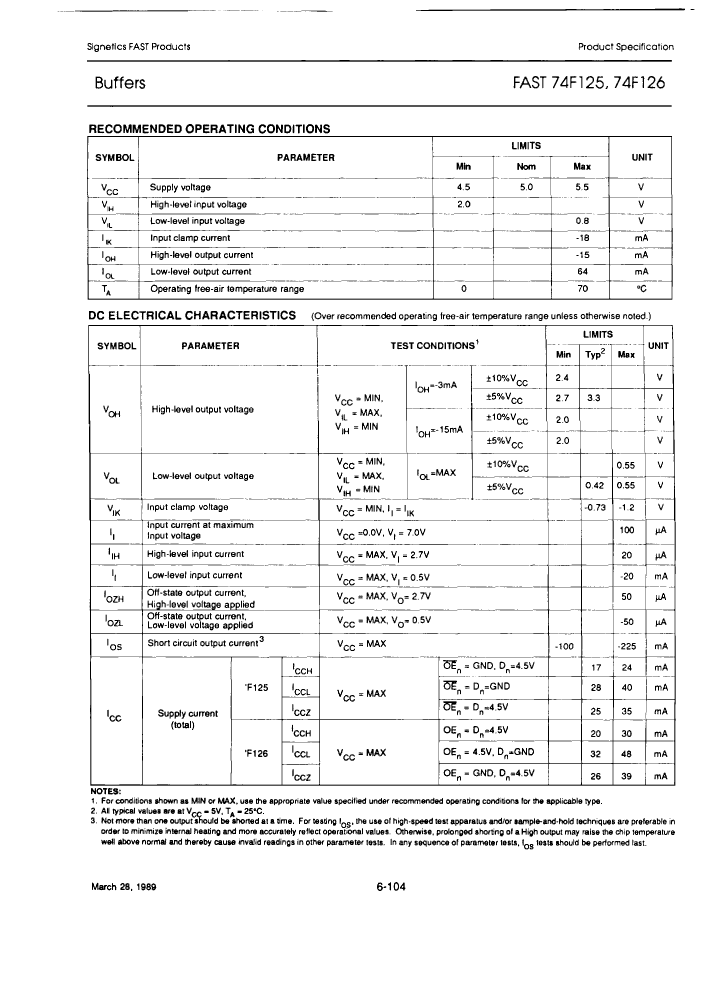

Maximum supply current (ICC)	40 mA

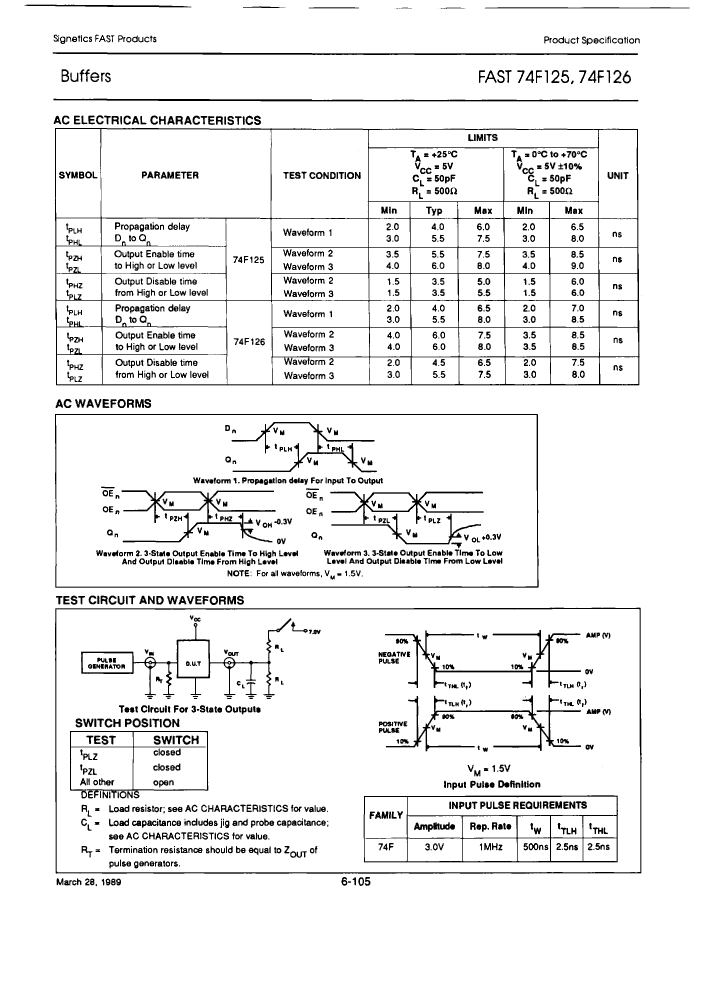

propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1
