89177-9270 datasheet, PDF - EEWORLD Datasheet

89177-9270: DescriptionCard Edge Connector, 184 Contact(s), 2 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size276KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

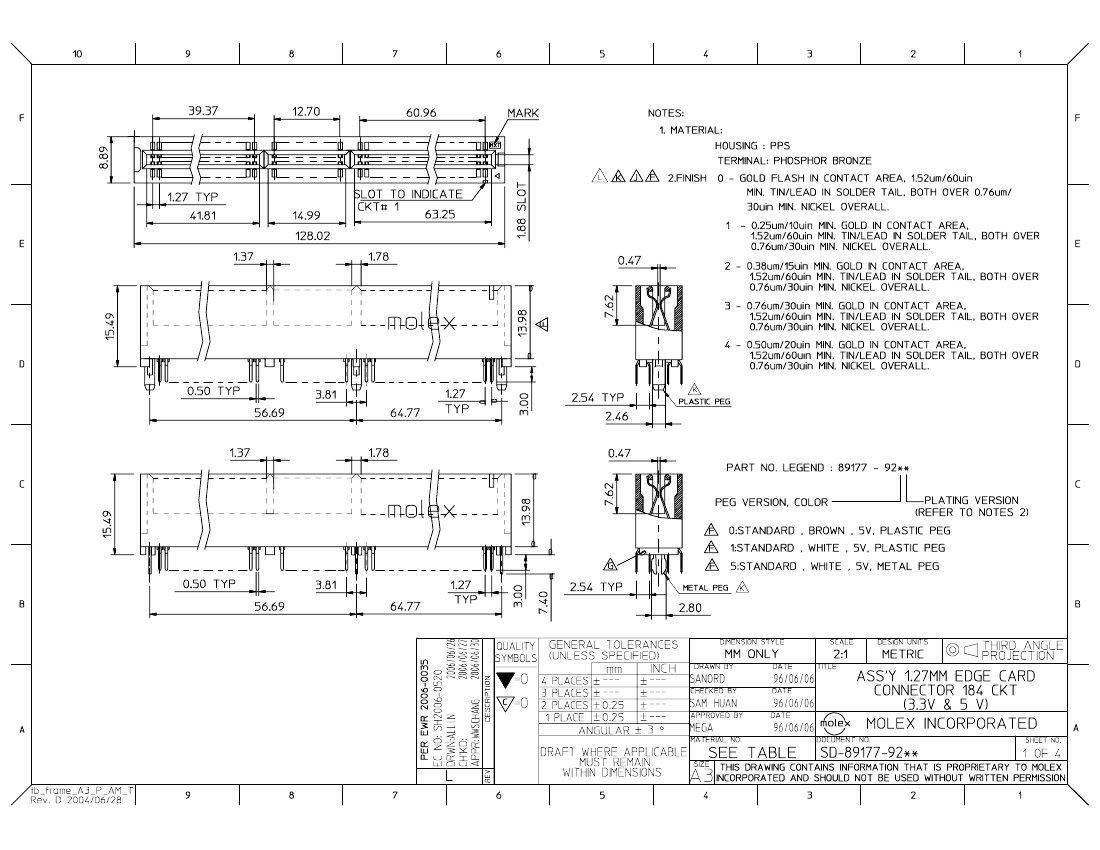

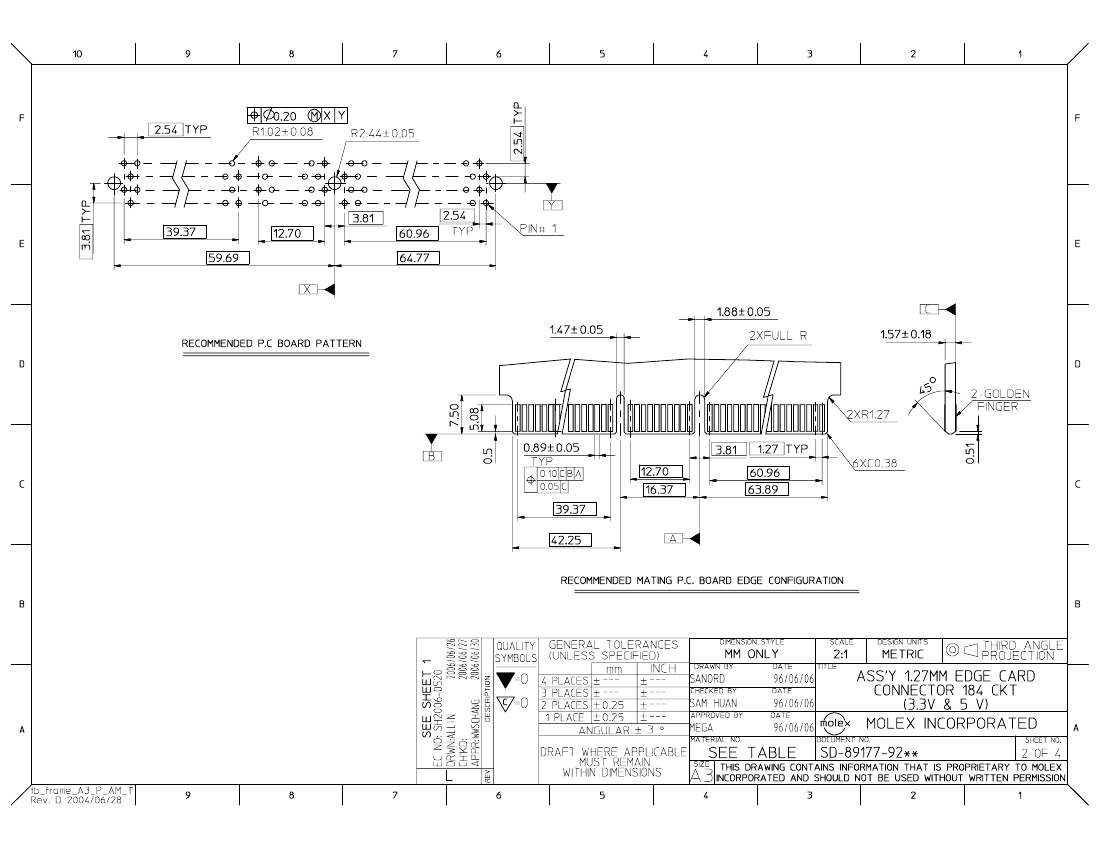

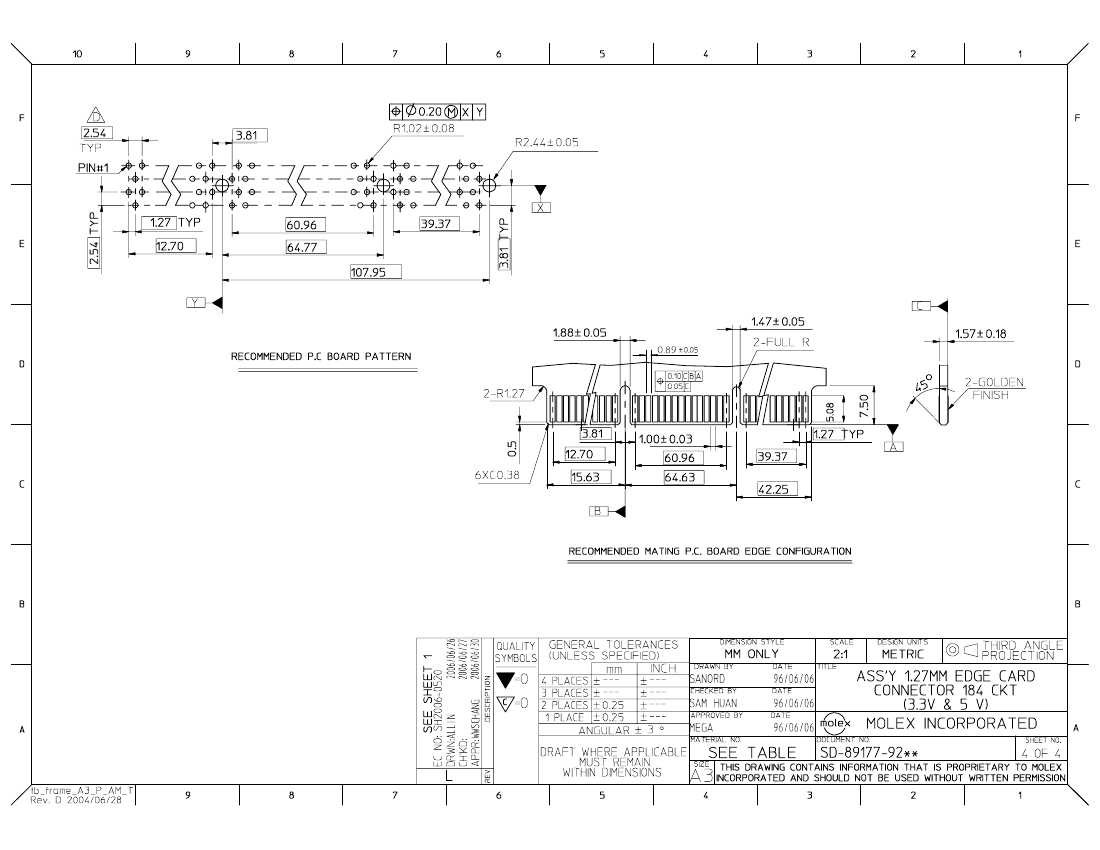

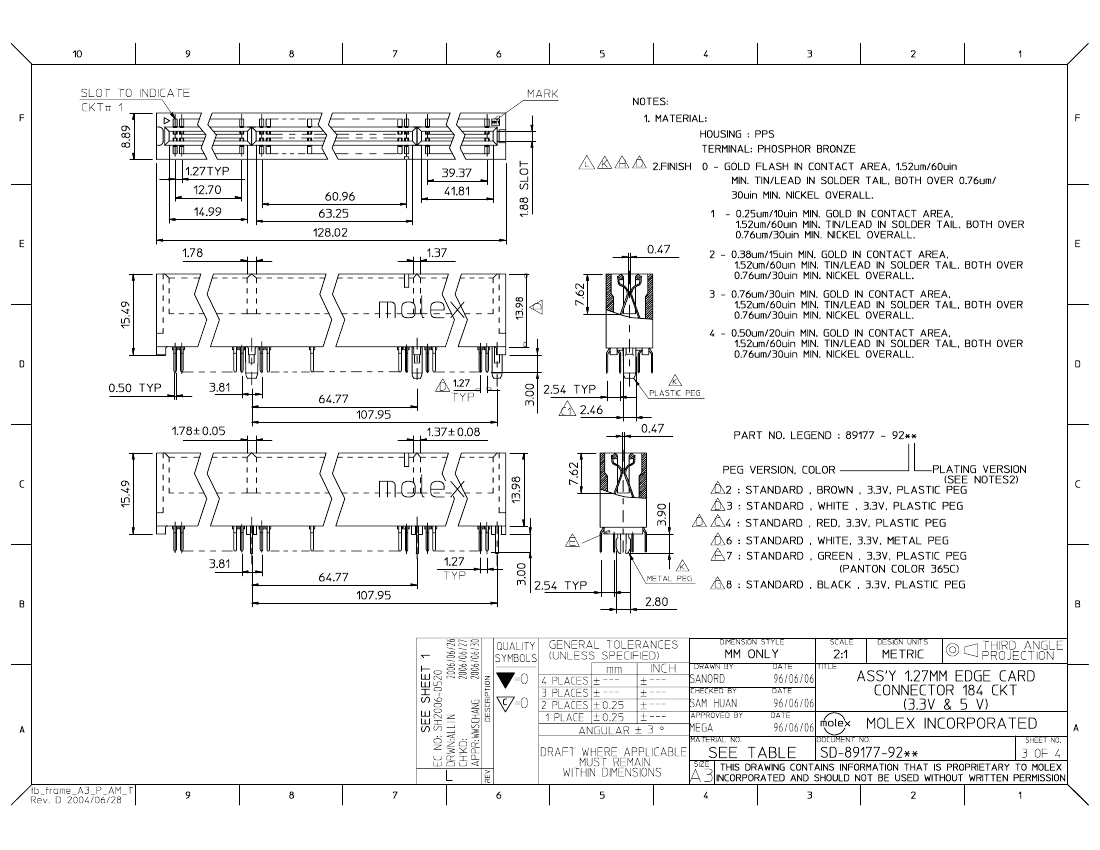

89177-9270 Overview

Card Edge Connector, 184 Contact(s), 2 Row(s), Female, Straight, Solder Terminal

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (30)
Contact completed and terminated	TIN LEAD (60) OVER NICKEL (30)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	89177
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	184
Base Number Matches	1
