8609-432-76-25245-000-E1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 8609-432-76-25245-000-E1

Preview

8609-432-76-25245-000-E1: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Wire Wrap Terminal,; CategoryThe connector The connector; File Size95KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8609-432-76-25245-000-E1 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Wire Wrap Terminal,

8609-432-76-25245-000-E1 Parametric

Parameter Name	Attribute value
Objectid	1741377488
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.7
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	32
UL Flammability Code	94V-0

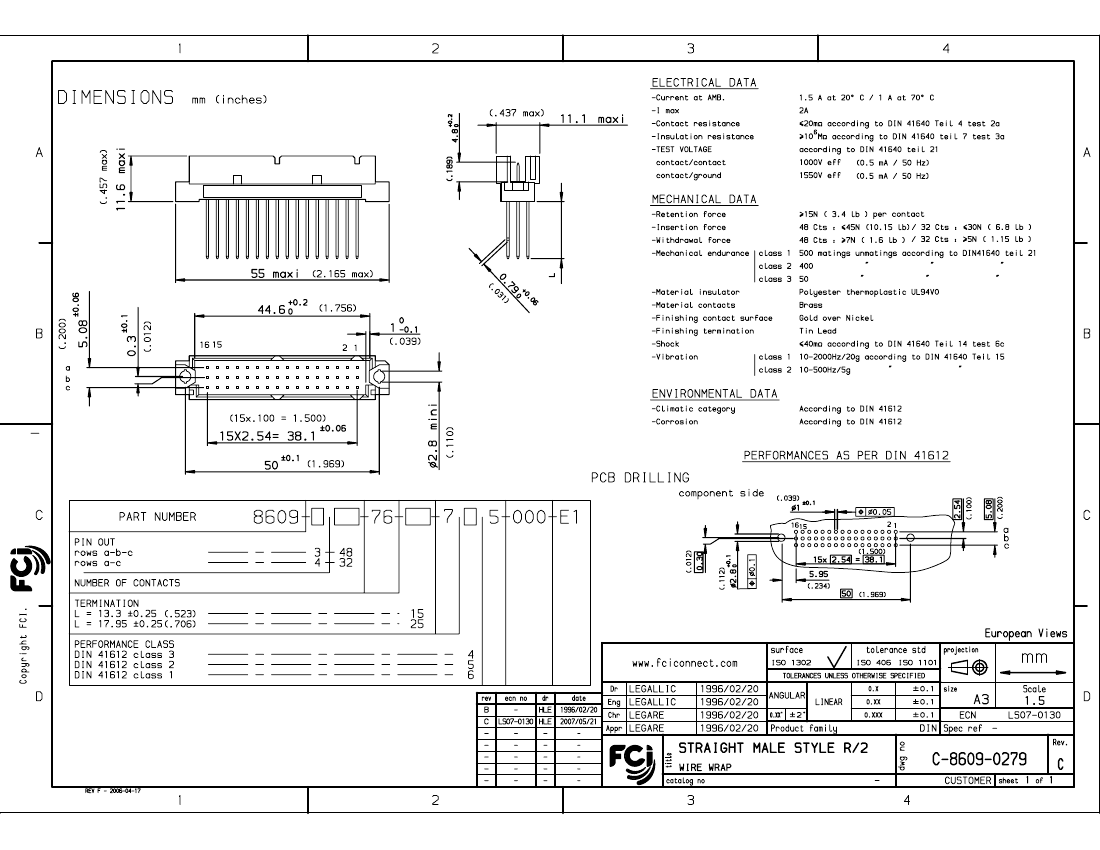

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Jun 12, 2007

.

8609-432-76-25245-000-E1 Related Products

	8609-432-76-25245-000-E1	8609-432-76-15255-000-E1	8609-432-76-15245-000-E1	8609-432-76-15265-000-E1	8609-432-76-25255-000-E1	8609-432-76-25265-000-E1
Description	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Wire Wrap Terminal,	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Wire Wrap Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Wire Wrap Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Wire Wrap Terminal	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Wire Wrap Terminal,	Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, Wire Wrap Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	32	32	32	32	32	32
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
