WIREWOUND CHIP INDUCTORS
1. PART NO. EXPRESSION :
SCI0603S SERIES
SCI0603S-1N6KF
(a)
(b)
(c)
(d) (e)(f)
(a) Series code
(b) Dimension code
(c) Type code : S ( Standard )
(d) Inductance code : 1N6 = 1.6nH
(e) Tolerance code : G = ±2%, J = ±5%, K = ±10%
(f) F : Lead Free

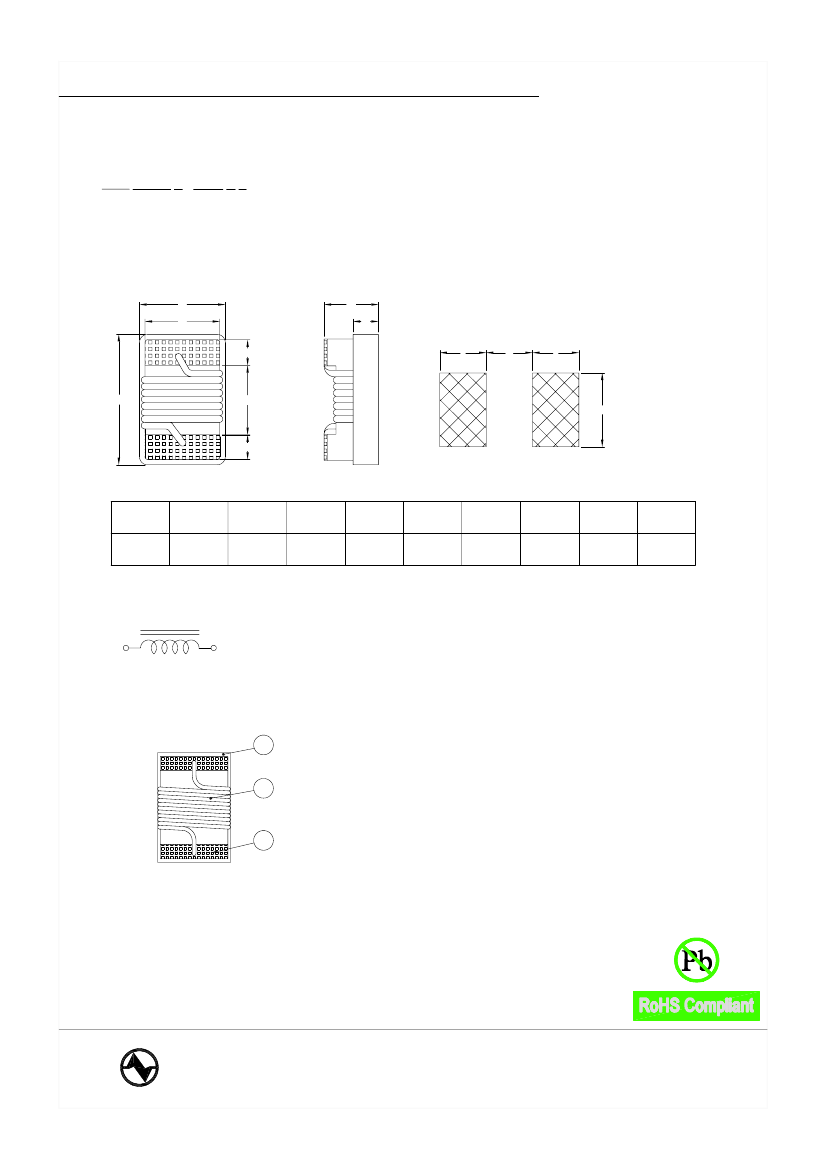

2. CONFIGURATION & DIMENSIONS :
B
E
C
D
I
J
I
A
G
F
F
PCB Pattern
Unit:m/m
A
B
C
D
0.38 Ref.
E
0.76 Ref.
F
0.33 Ref.
G
0.86 Ref.
H
1.02 Ref.
I
0.64 Ref.
J
0.64 Ref.
1.80 Max. 1.12 Max. 1.02 Max.
3. SCHEMATIC :
4. MATERIALS :
a
(a) Core : Ceramic U core
(b) Wire : Enamelled Copper Wire
b
(c) Terminal Metallization : Ag + Ni + Au
c
NOTE : Specifications subject to change without notice. Please check our website for latest information.
H
15.01.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
WIREWOUND CHIP INDUCTORS
5. GENERAL SPECIFICATION :
a) Storage temp. : -25°C to +80°C
b) Operating temp. : -40°C to +125°C
c) Temperature rise : 40°C Max.
d) Rated current : Base on temp. rise & L/L0A=10% Max.
e) Resistance to solder heat : 260°C.10sec
SCI0603S SERIES
6. ELECTRICAL CHARACTERISTICS :
Part No.
SCI0603S-1N6 F
SCI0603S-1N8 F
SCI0603S-2N2 F
SCI0603S-3N3 F
SCI0603S-3N6 F
SCI0603S-3N9 F
SCI0603S-4N3 F
SCI0603S-4N7 F
SCI0603S-5N1 F
SCI0603S-5N6 F
SCI0603S-6N8 F
SCI0603S-7N5 F
SCI0603S-8N2 F
SCI0603S-8N7 F
SCI0603S-9N5 F
SCI0603S-10N F
SCI0603S-11N F
SCI0603S-12N F
SCI0603S-15N F
SCI0603S-16N F
SCI0603S-18N F
SCI0603S-22N F
SCI0603S-23N F
SCI0603S-24N F
SCI0603S-27N F
Tolerance
Available
K, J
K, J
K, J
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
L
( nH )
1.6
1.8
2.2
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.8
7.5
8.2
8.7
9.5
10
11
12
15
16
18
22
23
24
27
Test
Freq
( MHz )
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
Q
Min.
16
16
20
22
22
22
22
20
20
20
27
27
27
27
27
31
31
35
35
35
35
38
38
36
40
SRF
( MHz )
Min.
12500
12500
6000
>6000
5800
>6000
5800
5800
5800
5800
5800
4800
4800
4800
4800
4800
4000
4000
4000
3300
3100
3000
2850
2800
2800
DCR
( )
Max.
0.040
0.045
0.100
0.080
0.063
0.080
0.063
0.120
0.160
0.170
0.110
0.110
0.110
0.110
0.130
0.130
0.086
0.130
0.170
0.110
0.170
0.190
0.190
0.130
0.220
IDC
( mA )
Max.
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
700
600
900MHz
L
Typ.
1.53
1.63
2.18
3.35
3.53
3.95
4.32
4.65
5.13
5.53
6.75
7.39
8.25
8.84
9.64
10.0
11.3
12.3
15.4
16.5
18.7
22.8
24.1
25.7
29.2
900MHz
Q
Typ.
35
35
41
47
49
49
49
53
47
56
60
62
64
62
59
66
53
72
64
55
70
73
71
45
74
1.7GHz
L
Typ.
1.58
1.66
2.20
3.40
3.58
3.96
4.43
4.80
5.36
5.86
7.10
7.71
8.40
9.38
10.50
10.60
12.10
13.50
16.80
18.00
21.40
26.10
28.00
30.90
34.60
1.7GHz
Q
Typ.
55
50
64
65
65
67
67
67
56
77
81
81
81
58
61
83
56
83
89
52
69
71
71
40
65
NOTE : Specifications subject to change without notice. Please check our website for latest information.
15.01.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
WIREWOUND CHIP INDUCTORS
6. ELECTRICAL CHARACTERISTICS :
Part No.
SCI0603S-30N F
SCI0603S-33N F
SCI0603S-36N F
SCI0603S-39N F
SCI0603S-43N F
SCI0603S-47N F
SCI0603S-51N F
SCI0603S-56N F
SCI0603S-68N F
SCI0603S-72N F
SCI0603S-82N F
SCI0603S-R10 F
SCI0603S-R11 F
SCI0603S-R12 F
SCI0603S-R15 F
SCI0603S-R18 F
SCI0603S-R22 F
SCI0603S-R26 F
SCI0603S-R27 F
SCI0603S-R33 F
SCI0603S-R39 F
Inductance tolerance :
: G : ±2%
J : ±5%
K : ±10%
Tolerance
Available
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
K, J, G
L
( nH )
30
33
36
39
43
47
51
56
68
72
82
100
110
120
150
180
220
260
270
330
390
Test
Freq
( MHz )
250
250
250
250
200
200
200
200
200
150
150
150
150
150
100
100
100
100
100
100
100
Q
Min.
37
40
37
40
38
38
35
38
37
34
34
34
32
32
32
25
25
25
25
25
25
SRF
( MHz )
Min.
2800
2300
2300
2200
2000
2000
1900
1900
1700
1700
1700
1400
1350
1300
1300
1250
1200
1200
900
900
900
DCR
( )
Max.
0.150
0.220
0.250
0.250
0.280
0.280
0.280
0.310
0.340
0.490
0.540
0.580
0.610
0.650
0.950
1.400
1.600
2.000
2.100
3.800
4.350
IDC
( mA )
Max.
600
600
600
600
600
600
600
600
600
400
400
400
300
300
280
250
250
200
200
100
100
SCI0603S SERIES
900MHz
L
Typ.
31.4
36.0
39.1
42.7
46.9
52.2
55.5
62.5
80.5
82.0
96.2
124
138
166
230
305
-
-
-
-
-
900MHz
Q
Typ.
47
67
47
60
44
62
69
56
54
53
54
49
43
39
25
22
-
-
-
-
-
1.7GHz
L
Typ.
39.80
49.50
48.90
60.20
60.30
77.20
82.20
97.00
168.00
135.00
177.00
-
-
-
-
-
-
-
-
-
-
1.7GHz
Q
Typ.
28
42
24
40
21
35
34
26
21
20
21
-
-
-
-
-
-
-
-
-
-
NOTE : Specifications subject to change without notice. Please check our website for latest information.
15.01.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
WIREWOUND CHIP INDUCTORS
7. ELECTRICAL CHARACTERISTICS :
CONFIGURATTION :
SCI0603S SERIES

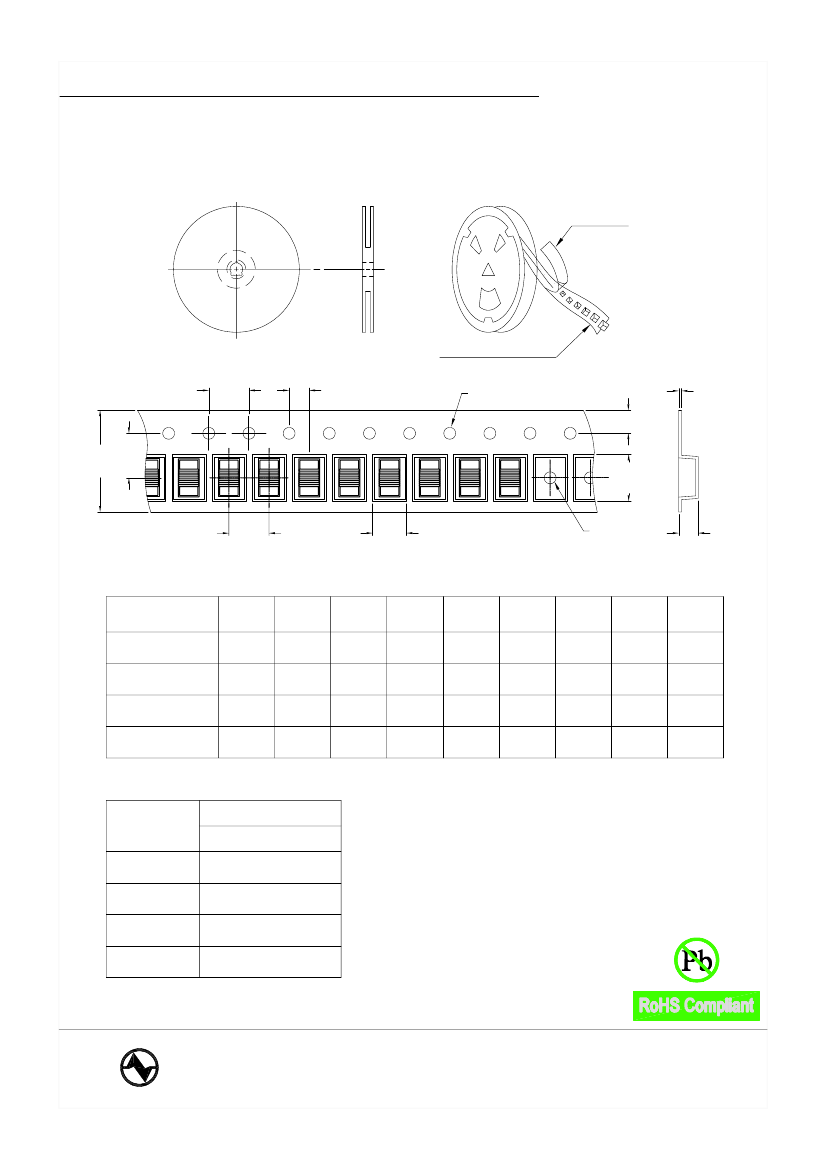

COVER TAPE
EMBOSSED CARRIER
F±0.1
4±0.1
G±0.05
Ø1.5
I±0.05
A±0.2
E±0.05
C±0.1
B±0.1
Ø1.5
DIMENSION (unit: mm)
SERIES
SCI0402
SCI0603
SCI0805
SCI1008
A
8.0
8.0
8.0
8.0
B
0.71
1.10
1.88
2.73
C
2.0
4.0
4.0
4.0
D
1.16
1.75
2.38
2.88
E
3.5
3.5
3.5
3.5
F
1.75
1.75
1.75
1.75
G
0
2
2
2
H
0.65
1.15
1.48
2.33
I
0.23
0.25
0.20
0.20
PACKING QUANTITY
INNER REEL
SERIES
Q'TY (PCS)
4000
4000
2000
2000
SCI0402
SCI0603
SCI0805
SCI1008
NOTE : Specifications subject to change without notice. Please check our website for latest information.
D±0.1
H±0.05
15.01.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
WIREWOUND CHIP INDUCTORS
8. ENVIRONMENTAL CHARACTERISTICS :
Electrical Performance Test :
SCI0603S SERIES
ITEM
1
Inductance
SPECIFICATION
TEST CONDITIONS / TEST METHODS
HP4291B
2
Q
Refer to Electrcal
Characteristics List
HP4291B
3
SRF
HP8753D
4
DC Resistance Rdc
Mico-Ohmmeter (GOM-801G)
5
Rated Current IDC
The device should be REFLOW soldered (230±5°C for
10 seconds) to a tinned copper subs rate. A dynamiter
6
Over Load Test
After test, inductors shall
have no evidence of
electrical and mechanical
damage
Applied 2 times of rated allowed DC current to inductor
for a period of 5 minute.
7
Withstanding
Voltage Test
After test, inductors shall
have no evidence of
electrical and mechanical
damage
AC voltage of 500VAC applied between inductors
terminal and case for 1 minute.
8
Insulation
Resistance Test
1000 MOhm min.
100VDC applied between inductor terminal and case
NOTE : Specifications subject to change without notice. Please check our website for latest information.
15.01.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 5
