84696-004 datasheet, PDF - EEWORLD Datasheet

84696-004: DescriptionBoard Connector, 68 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size163KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

84696-004 Overview

Board Connector, 68 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STAGGERED CONFIGURATION
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	84696
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SOLDER
Total number of contacts	68
UL Flammability Code	94V-0
Base Number Matches	1

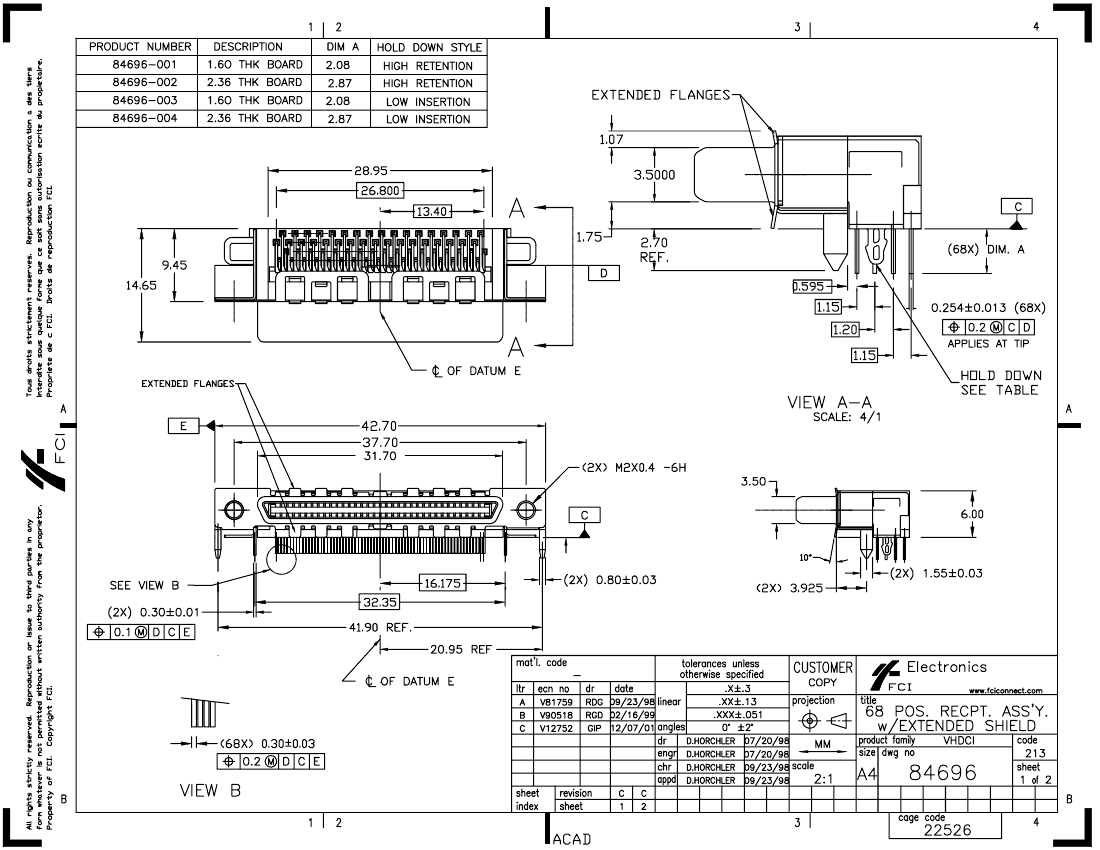

PDM: Rev:C

STATUS:

Released

Printed: Aug 05, 2006

.

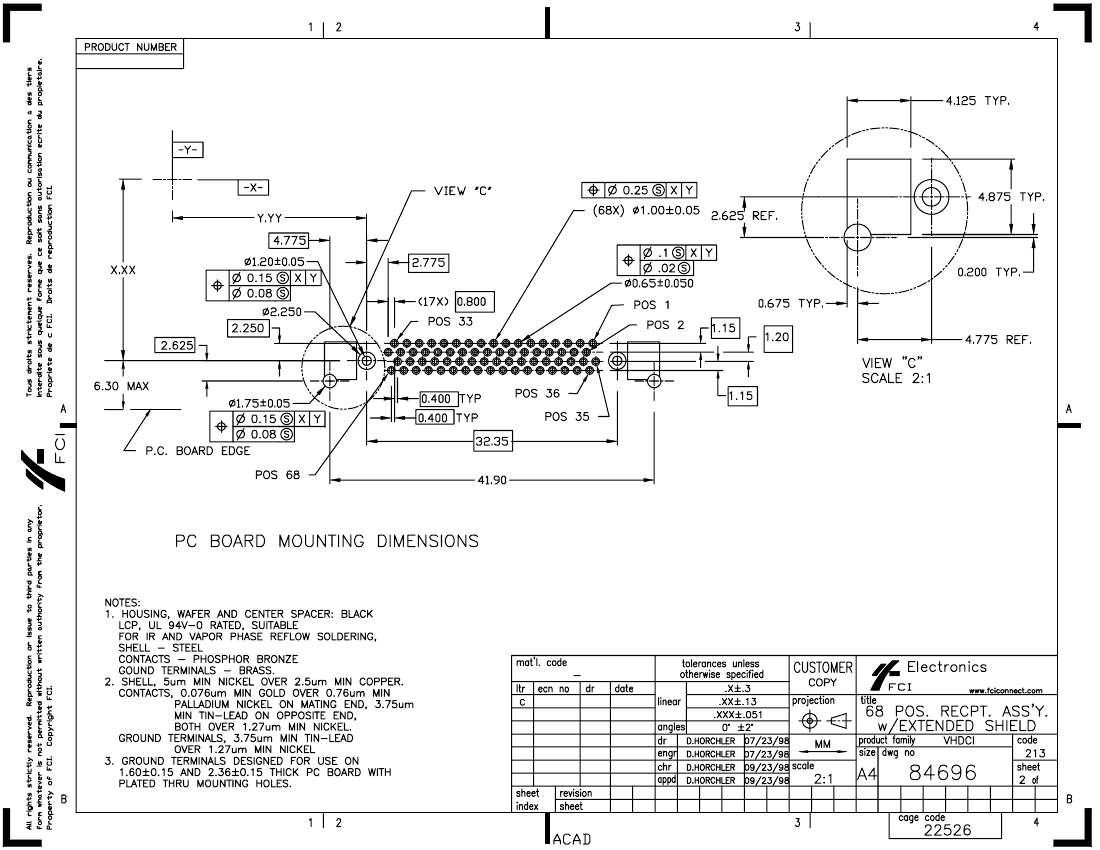

	84696-004	84696-001	84696-002	84696-003
Description	Board Connector, 68 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle	Board Connector, 68 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle	Board Connector, 68 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle	Board Connector, 68 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	84696	84696	84696	84696
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	68	68	68	68
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
