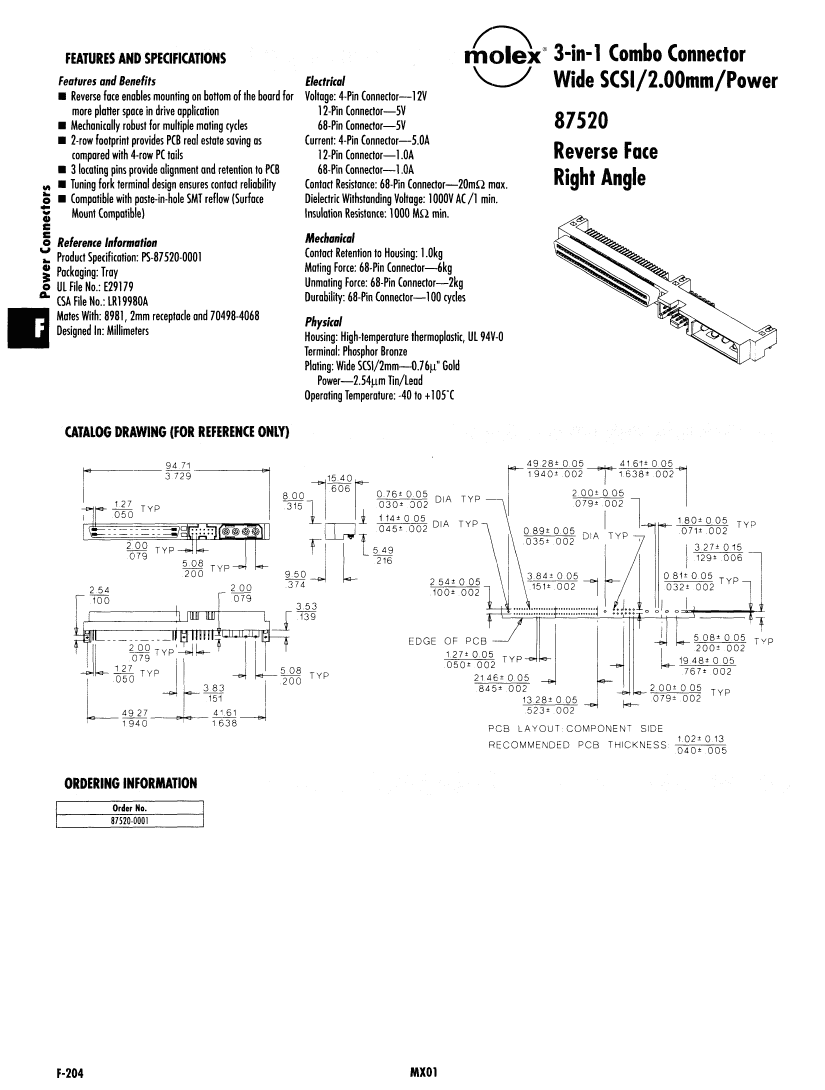

Rectangular Connector, 84 Contact(s), Male, Receptacle
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | 3-IN-1 COMBO CONNECTOR |
| Board mount options | LOCATING POSTS |
| body width | 0.315 inch |
| subject depth | 0.606 inch |
| body length | 3.729 inch |
| Body/casing type | RECEPTACLE |
| Connector type | RECTANGULAR CONNECTOR |
| Contact arrangement | S80P4 |
| Contact to complete cooperation | GOLD |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 100 Cycles |
| IEC compliance | NO |
| maximum insertion force | .8618 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| MIL compliance | NO |
| Mixed contacts | YES |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| Plating thickness | 30u inch |
| Rated current (signal) | 1 A |
| Guideline | CSA, UL |
| reliability | COMMERCIAL |
| Termination type | SOLDER |
| Total number of contacts | 84 |
| Evacuation force-minimum value | .278 N |
| Base Number Matches | 1 |
