SCM205K601H2N29-F

Description
CAPACITOR, FILM/FOIL, 1200 V, 1 uF, CHASSIS MOUNT
CategoryPassive components
File Size67KB,2 Pages
ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]
Download Datasheet Parametric View All

SCM205K601H2N29-F Overview

CAPACITOR, FILM/FOIL, 1200 V, 1 uF, CHASSIS MOUNT

SCM205K601H2N29-F Parametric

Parameter NameAttribute value
Rated DC voltage urdc1200 V
Processing package descriptionROHS COMPLIANT
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
terminal coatingtin
Installation featuresChassis installation
Manufacturer SeriesSCM
capacitance1 uF
packaging shapeRectangular PACKAGE
Capacitor typeFilm/FOIL
Terminal shapeFLEXIBLE 线 AND LUG

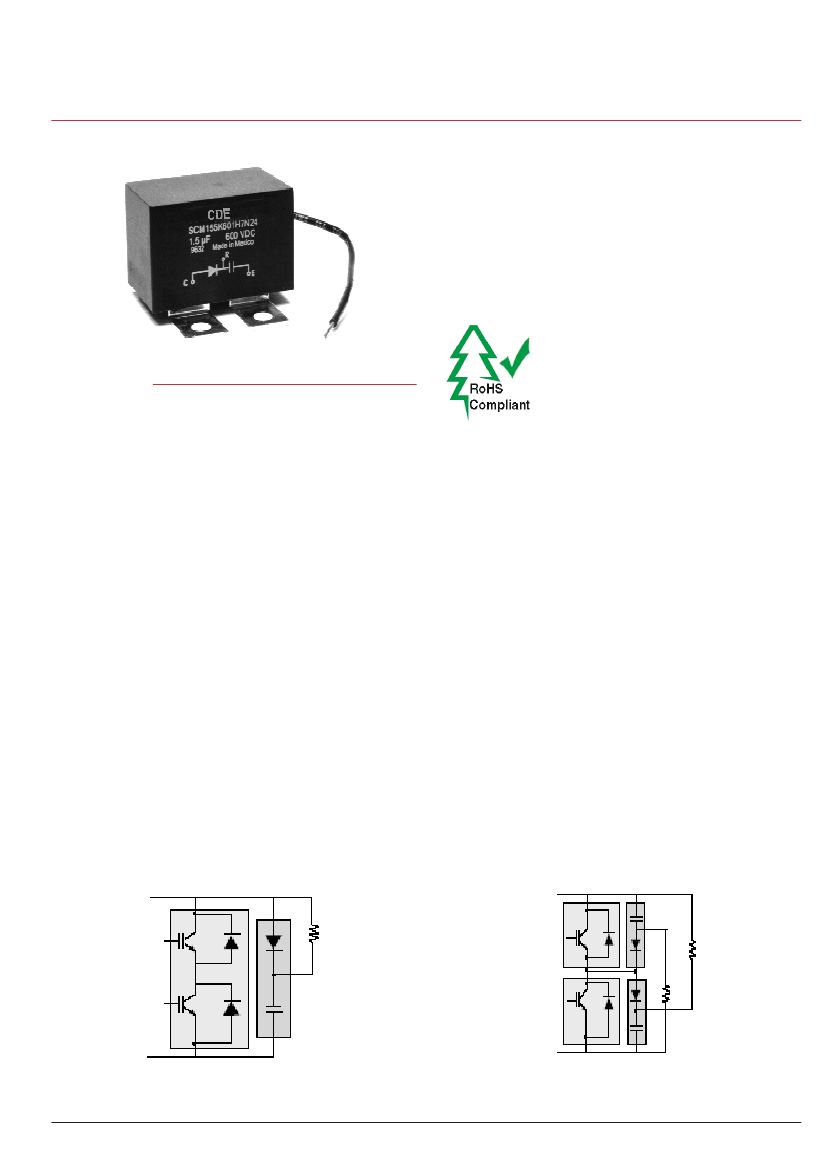

Type SCM
Single/Dual IGBT Snubber Capacitor Modules
Applications
Use style SCM as a discharge restrictive de-coupling to
protect dual IGBT modules from overvoltage, Figure
1. Style SCM may also be used as an “N” or “P” type
snubber component for a clamp snubber where single
IGBT modules are used, Figure 2.
Highlights
Mount directly to the IGBT module
Low inductance
Low Loss
Hyperfast diodes integrated into package
Complies with the EU Directive 2002/95/EC re-
quirement restricting the use of Lead (Pb), Mer-
cury (Hg), Cadmium (Cd), Hexavalent chromium
(Cr(VI)), PolyBrominated Biphenyls (PBB) and
PolyBrominated Diphenyl Ethers (PBDE).
Discharge Restrictive De-coupling
The circuit in Figure 1 operates on the same principles
as the de-coupling capacitor, but only during turn-off
switching. As the IGBT turns off, energy trapped in
the loop inductance is transferred to the capacitor. The
diode blocks oscillations from occurring and excess
charge on the capacitor is discharged through the
external resistor.
1 or 2 wire taps for connecting external resistor
Flame resistant case and epoxy, meets UL 94V0
Other terminal pitches and capacitance values
available.
RCD Clamp
The function of this snubber is similar to a clamp, Figure
2. At turn-off, the snubber diode is forward biased and
the snubber is activated. The energy trapped in the stray
inductance is absorbed by the snubber capacitor. During
turn-on the snubber caps that were fully charged to
bus voltage have a discharge path through the forward
biased free-wheel diode, the IGBT, and the snubber
resistors. This reduces the reverse recovery voltage
transient.
Figure 2
Style SCM “P” type and “N” type used as a clamp
to protect an inverter using two “single” IGBT modules
SCM
“P” Type
Module
Figure 1
Style SCM Discharge restrictive decoupling used
to protect dual IGBT modules
External
Resistor
Dual
IGBT
Module
Single
IGBT
Module
External
Resistor
SCM
“N” Type
Module
Single
IGBT
Module
SCM
“N” Type
Module
CDE Cornell Dubilier•1605 E. Rodney French Blvd•New Bedford, MA 02744•Phone: (508)996-8561•Fax: (508)996-3830•www.cde.com
