D15S24B4GX00 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> D15S24B4GX00

D15S24B4GX00: DescriptionD Subminiature Connector, 15 Contact(s), Female, Solder Terminal; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D15S24B4GX00 Overview

D Subminiature Connector, 15 Contact(s), Female, Solder Terminal

D15S24B4GX00 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	D
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

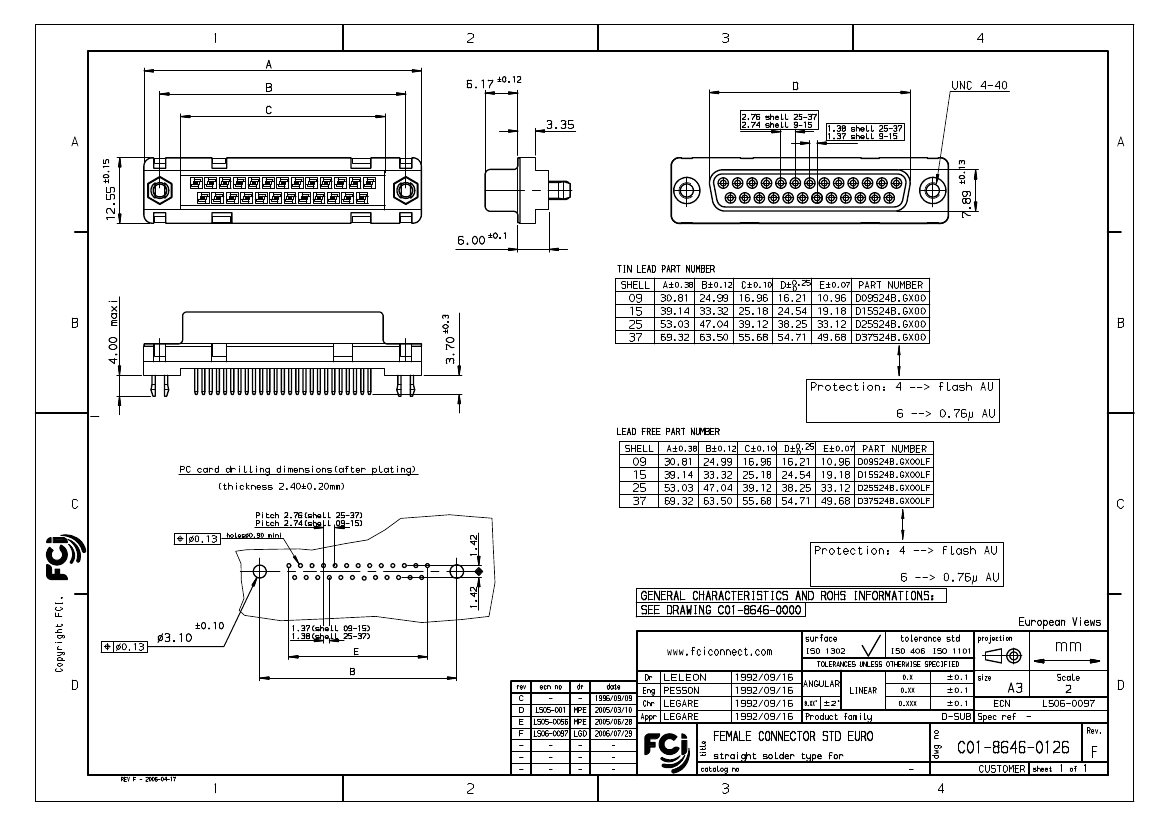

Preview

Download Datasheet

View All

PDM: Rev:F

STATUS:

Released

Printed: Jan 18, 2011

D15S24B4GX00 Related Products

	D15S24B4GX00	D37S24B6GX00LF	D15S24B6GX00	D09S24B6GX00	D09S24B4GX00
Description	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal
Reach Compliance Code	unknown	compliant	unknown	compliant	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	NOT SPECIFIED	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	2/A	4/C	2/A	1/E	1/E
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	37	15	9	9
Maker	Amphenol	-	Amphenol	Amphenol	Amphenol
Contact completed and terminated	TIN OVER NICKEL	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
insulator material	POLYETHYLENE	-	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e3	-	e3	e3	e3
Manufacturer's serial number	D	-	D	D	D
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Shell surface	TIN	-	TIN	TIN	TIN
Shell material	STEEL	-	STEEL	STEEL	STEEL
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	-	-
