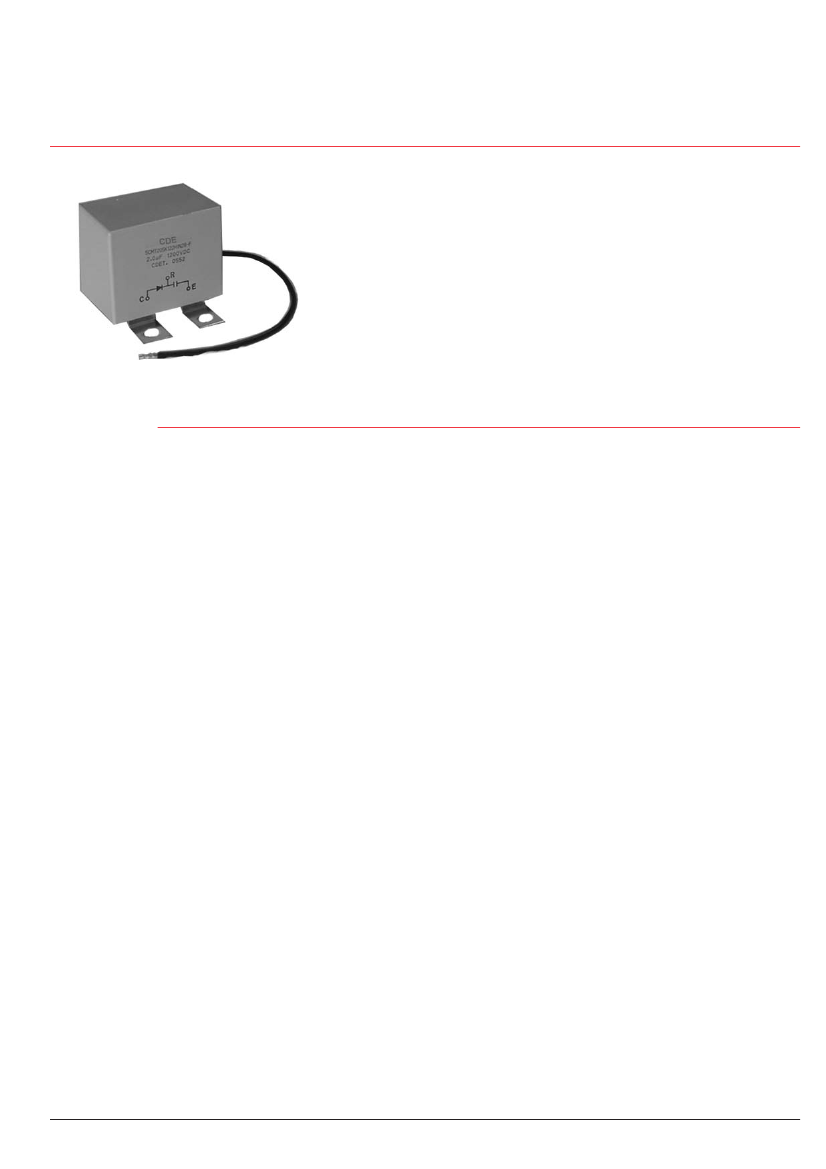

Type SCMT
Single/Dual IGBT Snubber Capacitor Modules
Applications
Use style SCMT as a discharge restrictive de-coupling to protect
dual IGBT modules from overvoltage, Figure 1. Style SCMT
may also be used as an “N” or “P” type snubber component for a
clamp snubber where single IGBT modules are used, Figure 2.
Highlights
•
•
•
•
Mount directly to the IGBT module
Low inductance
Low Loss
Hyperfast diodes integrated into
package
•
•
•
•
1 or 2 wire taps for connecting external resistor
Flame resistant case and epoxy, meets UL 94VO
Other terminal pitches and capacitance values available.
RoHS Compliant
Discharge Restrictive De-coupling
The circuit in Figure 1 operates on the same
principles as the de-coupling capacitor, but only
during turn-off switching. As the IGBT turns
off, energy trapped in the loop inductance is
transferred to the capacitor. The diode blocks
oscillations from occurring and excess charge on
the capacitor is discharged through the external
resistor.
RCD Clamp
The function of this snubber is similar to a clamp,
Figure 2. At turn-off, the snubber diode is forward
biased and the snubber is activated. The energy
trapped in the stray inductance is absorbed by the
snubber capacitor. During turn-on the snubber
caps that were fully charged to bus voltage have
a discharge path through the forward biased
free-wheel diode, the IGBT, and the snubber
resistors. This reduces the reverse recovery voltage
transient.
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type SCMT
Single/Dual IGBT Snubber Capacitor Mod-
RoHS Compliant
Discharge Restrictive De-coupling

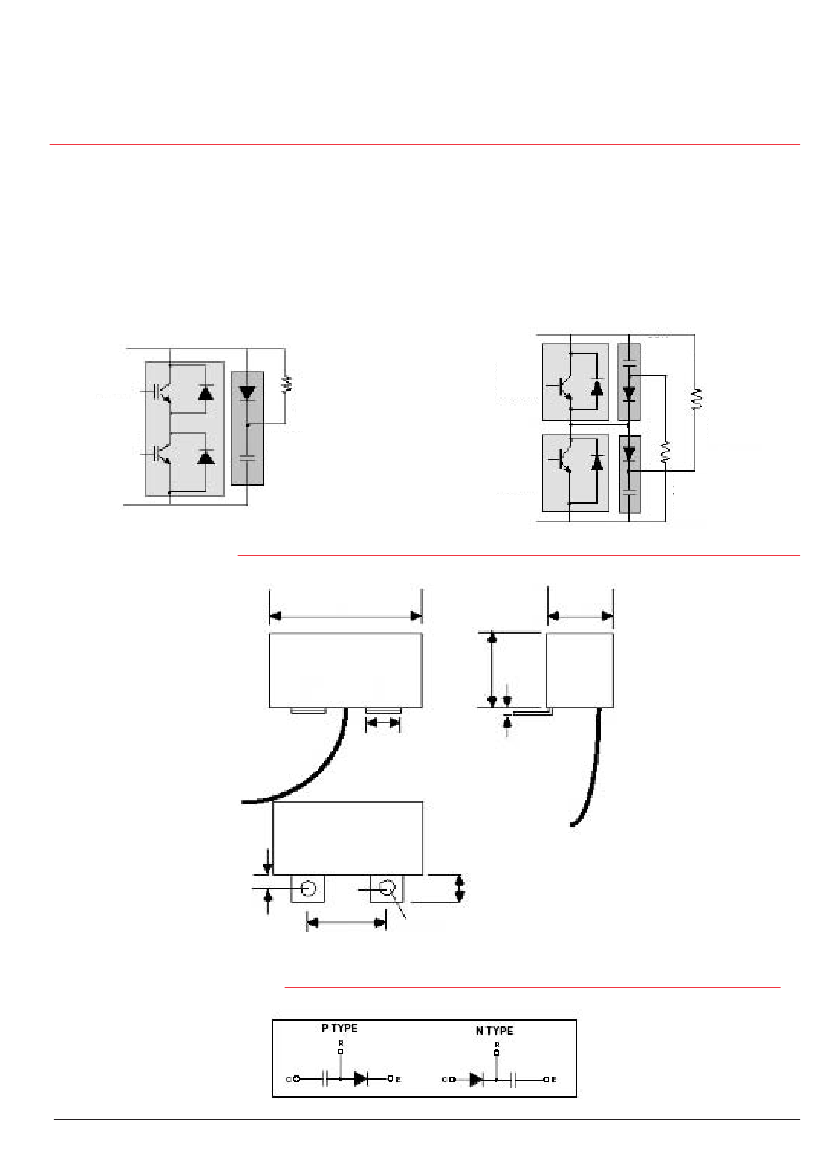

Figure 1
Style SCMT Discharge restrictive decoupling used
to protect dual IGBT modules
RCD Clamp
Figure 2
Style SCMT “P” type and “N” type used as a clamp
to protect an inverter using two “single” IGBT modules.
SCMT
“P” Type
Module
Dual
IGBT
Module
External
Resistor
Single
IGBT
Module
Single
IGBT
Module
External
Resistors
SCMT
“N” Type
Module
SCMT
“N” Type
Module
Outline Drawing
L ±1.0
W
±1.0
H ±1.0
C
E
5 mm
14 mm
UL 1015
AWG 18
L = 200 mm
9 mm
P
Dimensions in millimeters (mm)
16 mm
6.5 to 8.5 mm slot
N and P Type Circuits
CDE Cornell Dubilier
•
1605 E. Rodney French Blvd
•
New Bedford, MA 02744
•
Phone: (508)996-8561
•
Fax: (508)996-3830
•
www.cde.com
Type SCMT
Single/Dual IGBT Snubber Capacitor Modules
Ratings
Typical Application
IGBT Module
Ipk
Catalog
Part Number
(µF)
SCMT474K601H7N28-F
SCMT474K601H7P28-F
SCMT474K601H7[*]25-F
SCMT105K601H5N29-F
SCMT105K601H5P29-F
SCMT105K601H5[*]25-F
SCMT155K601H7N28-F
SCMT155K601H7P28-F
SCMT155K601H7[*]25-F
SCMT205K601H2N29-F
SCMT205K601H2P29-F
SCMT205K601H2[*]25-F
SCMT154K122H8N28-F
SCMT154K122H8P28-F
SCMT154K122H8[*]25-F
SCMT224K122H8N29-F
SCMT224K122H8P29-F
SCMT224K122H8[*]25-F
SCMT334K122H8N28-F
SCMT334K122H8P28-F
SCMT334K122H8[*]25-F
SCMT474K122H8N29-F
SCMT474K122H8P29-F
SCMT474K122H8[*]25-F
SCMT105K122H4N28-F
SCMT105K122H4P28-F
SCMT105K122H4[*]25-F
SCMT205K122H1N29-F
SCMT205K122H1P29-F
SCMT205K122H1[*]25-F
.47
.47
.47
1.00
1.00
1.00
1.50
1.50
1.50
2.00
2.00
2.00
.15
.15
.15
.22
.22
.22
.33
.33
.33
.47
.47
.47
1.00
1.00
1.00
2.00
2.00
2.00
D=Dual
S
S
D
S
S
D
S
S
D
S
S
D
S
S
D
S
S
D
S
S
D
S
S
D
S
S
D
S
S
D
(A)
200–300
200–300
200–300
300–400
300–400
300–400
200–300
200–300
200–300
400–600
400–600
400–600
(V) Type
600
600
600
600
600
600
600
600
600
600
600
600
N
P
[*]
N
P
[*]
N
P
[*]
N
P
[*]
N
P
[*]
N
P
[*]
P
N
[*]
N
P
P
N
P
[*]
N
P
[*]
(V)
600
600
600
600
600
600
600
600
600
(A)
(µs)
(A)
300
300
300
500
500
500
300
300
300
(A)
70
70
70
(in) (mm) (in) (mm) (in) (mm) (in) (mm)
0.91 23.0 2.3 58.0 1.38 35.0 1.10 28.0
0.91 23.0 2.3 58.0 1.38 35.0 1.10 28.0
0.91 23.0 2.3 58.0 1.38 35.0 0.98 25.0
30 0.050
30 0.050
30 0.050
50 0.050
50 0.050
50 0.050
30 0.050
30 0.050
30 0.050
Cap S=Single
Ic
Vce
Vrrm
If
Trr
Ipk
W
L
H
P
Diode Characteristics
Dimensions
RoHS Compliant
surge Rep.
100 0.91 23.0 2.3 58.0 1.38 35.0 1.14 29.0
100 0.91 23.0 2.3 58.0 1.38 35.0 1.14 29.0
100 0.91 23.0 2.3 58.0 1.38 35.0 0.98 25.0
70
70
70
0.91 23.0 2.3 58.0 1.38 35.0 1.10 28.0
0.91 23.0 2.3 58.0 1.38 35.0 1.10 28.0
0.91 23.0 2.3 58.0 1.38 35.0 0.98 25.0
600 100 0.050 1000
600 100 0.050 1000
600 100 0.050 1000
1200 30 0.085
1200 30 0.085
1200 30 0.085
1200 30 0.085
1200 30 0.085
1200 30 0.085
1200 30 0.085
1200 30 0.085
1200 30 0.085
1200 30 0.085
1200 30 0.085
1200 30 0.085
1200 50
1200 50
1200 50
1200 100
1200 100
1200 100
0.1
0.1
0.1
0.1
0.1
0.1
300
300
300
300
300
300
300
300
300
300
300
300
500
500
500
1000
1000
1000
200 0.91 23.0 2.3 58.0 1.38 35.0 1.14 29.0
200 0.91 23.0 2.3 58.0 1.38 35.0 1.14 29.0
200 0.91 23.0 2.3 58.0 1.38 35.0 0.98 25.0
60
60
60
60
60
60
60
60
60
60
60
60
0.91 23.0 2.3 58.0 1.38 35.0 1.10 28.0
0.91 23.0 2.3 58.0 1.38 35.0 1.10 28.0
0.91 23.0 2.3 58.0 1.38 35.0 0.98 25.0
0.91 23.0 2.3 58.0 1.38 35.0 1.14 29.0
0.91 23.0 2.3 58.0 1.38 35.0 1.14 29.0
0.91 23.0 2.3 58.0 1.38 35.0 0.98 25.0
0.91 23.0 2.3 58.0 1.38 35.0 1.10 28.0
0.91 23.0 2.3 58.0 1.38 35.0 1.10 28.0
0.91 23.0 2.3 58.0 1.38 35.0 0.98 25.0
0.91 23.0 2.3 58.0 1.38 35.0 1.14 29.0
0.91 23.0 2.3 58.0 1.38 35.0 1.14 29.0
0.91 23.0 2.3 58.0 1.38 35.0 0.98 25.0
200–300 1200
200–300 1200
200–300 1200
200–300 1200
200–300 1200
200–300 1200
200–300 1200
200-300 1200
200-300 1200
200–300 1200
200–300 1200
200–300 1200
300–400 1200
300–400 1200
300–400 1200
400–600 1200
400–600 1200
400–600 1200
100 1.38 35.0 2.3 59.0 1.77 45.0 1.10 28.0
100 1.38 35.0 2.3 59.0 1.77 45.0 1.10 28.0
100 1.38 35.0 2.3 59.0 1.77 45.0 0.98 25.0
200 1.54 39.0 2.3 59.0 1.85 47.0 1.14 29.0
200 1.54 39.0 2.3 59.0 1.85 47.0 1.14 29.0
200 1.54 39.0 2.3 59.0 1.85 47.0 0.98 25.0
lpk surge at 25 ºC and lpk repetitive at 25 ºC and 20 kHz.
[*] Specify “N’ or “P” Type
Part Numbering System
SCMT
Type
105
Cap.
105
= 1.0 µF
K
Tol.
K
= 10%
J
= 5%
122
Voltage
601
= 600V
122
= 1200V
H1
Diode
See ratings
table for
N
Polarity
“N” or “P”
28
Pitch
25
= 25mm
28
= 28mm
–F
RoHS
–F =
RoHS
Compliant
