Datasheet> All Categories > The connector> The connector> DA-15PA-NR

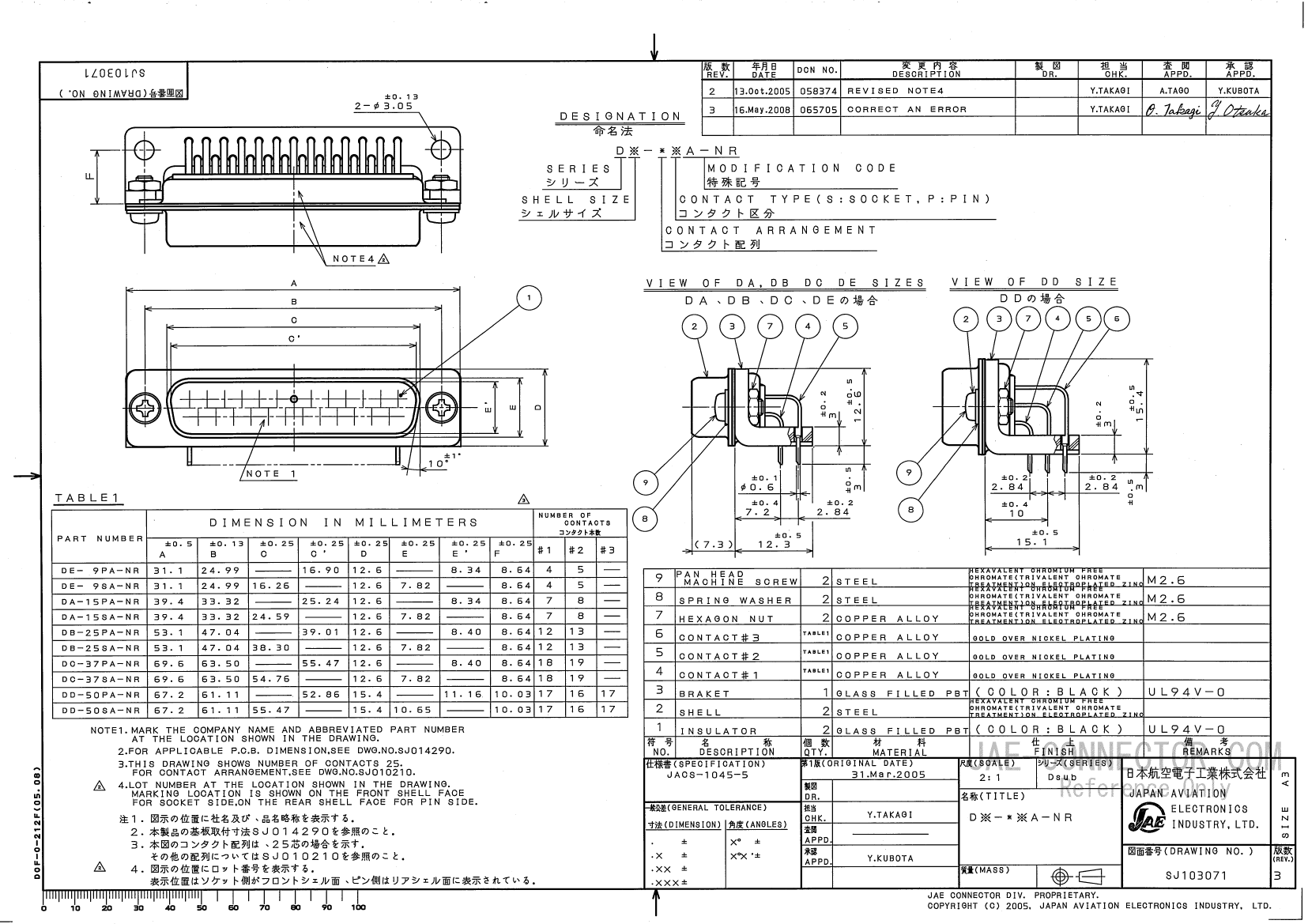

Preview

DA-15PA-NR: DescriptionD Subminiature Connector, 15 Contact(s), Male, Solder Terminal,; CategoryThe connector The connector; File Size162KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric Compare View All

DA-15PA-NR Overview

D Subminiature Connector, 15 Contact(s), Male, Solder Terminal,

DA-15PA-NR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	CHROMATE
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

DA-15PA-NR Related Products

	DA-15PA-NR	DA-15SA-NR	DC-37SA-NR	DE-9PA-NR
Description	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal,	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal,
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown	unknown	unknown	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	FEMALE	FEMALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CHROMATE	CHROMATE	CHROMATE	CHROMATE
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	2/A	2/A	4/C	1/E
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	37	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
