LP339N/NOPB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LP339N/NOPB

LP339N/NOPB: DescriptionComparator, 4 Func, 9000uV Offset-Max, 8000ns Response Time, BIPolar, PDIP14, DIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size838KB，4 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Environmental Compliance

Download Datasheet Parametric View All

LP339N/NOPB Overview

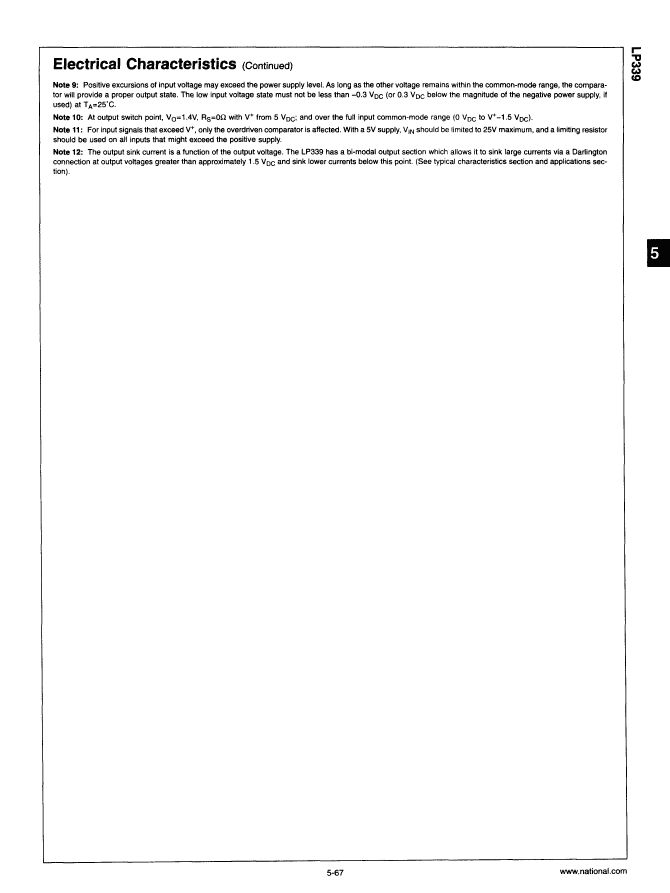

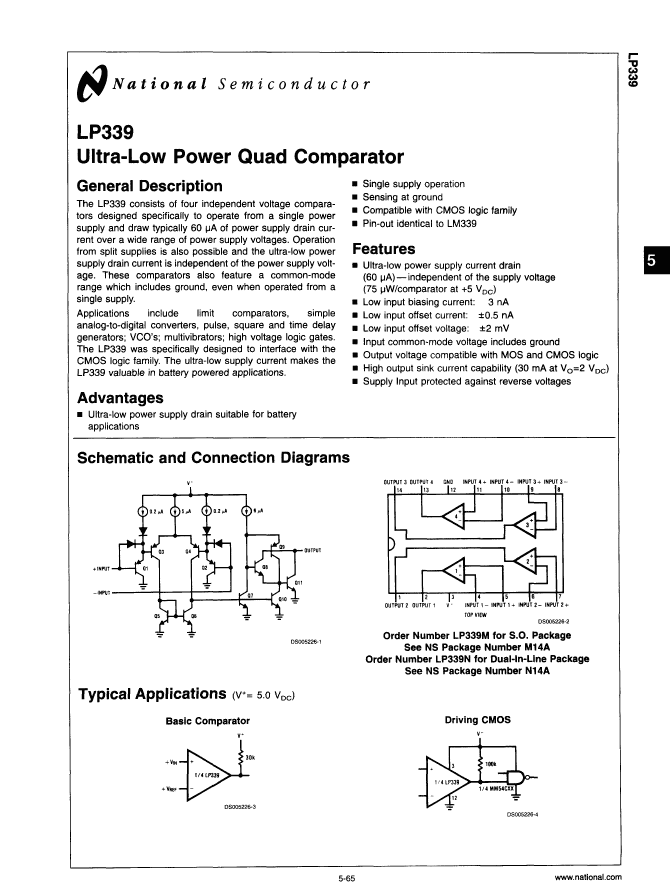

Comparator, 4 Func, 9000uV Offset-Max, 8000ns Response Time, BIPolar, PDIP14, DIP-14

LP339N/NOPB Parametric

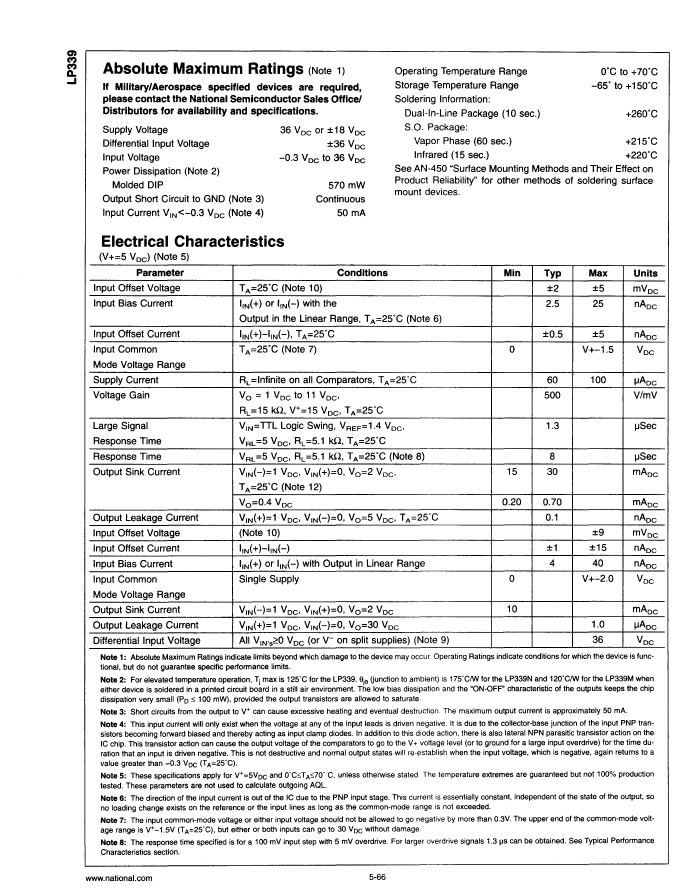

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rochester Electronics
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.04 µA
Maximum input offset voltage	9000 µV
JESD-30 code	R-PDIP-T14
JESD-609 code	e3
length	19.18 mm
Humidity sensitivity level	1
Negative supply voltage upper limit
Nominal Negative Supply Voltage (Vsup)
Number of functions	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output type	OPEN-DRAIN
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Nominal response time	8000 ns
Maximum seat height	5.08 mm
Supply voltage upper limit	36 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	TIN
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	7.62 mm
Base Number Matches	1
