SCW1643US-50 Overview

High Flux Type LED

Preview

Download Datasheet

View All

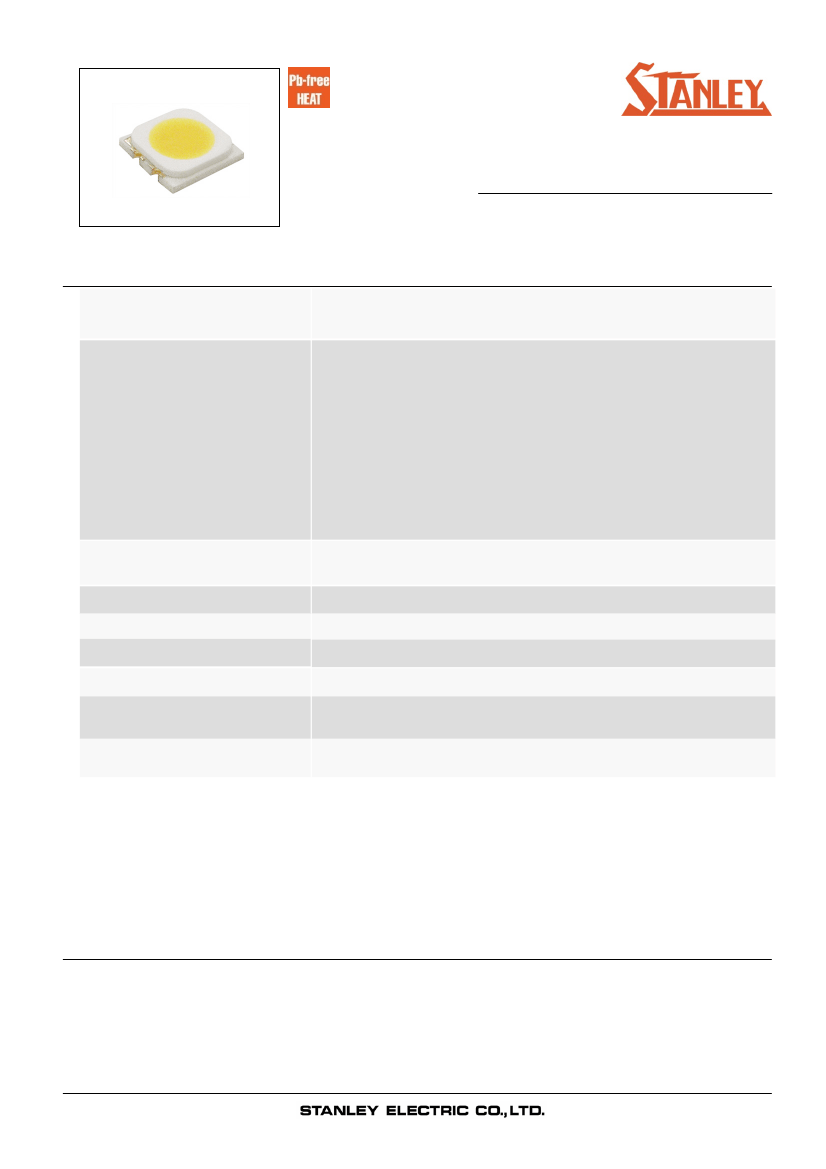

SCW16□3US Series

High Flux Type LED

Features

Package

Ceramic LCC Type

SCW1643US (High efficiency type)

: Pale yellow resin

SCW1653US (High color rendering type) : Pale orange resin

・100lm/W(High

efficiency type) of environmentally friendly like

CO2 reduction, white color source.

・Wide

variety of color temperatures correspond to general lighting uses.*

・High

color rendering type :Color Rendering Properties 1A group(Ra≧90)*

・Outer

dimension : 5.0 x 5.0 x 1.0 mm ( L x W x H )

・Long

life : 40,000h / 70% (retention of initial luminosity)

・Storage

temperature :-40℃½100℃

・Operating

temperature :-40℃½ 85℃

・Lead-free

soldering compatible

・RoHS

compliant

* Efficiency varies with optical color

*High efficiency type

: 6,500K, 5,000K

*High color rending type : 5,000K, 4,200K, 3,500K, 3,000K, 2,600K

120 deg.

InGaN

Sorted by luminous flux and chromaticity per rank taping

Auto pick & place machine (Auto Mounter)

Recommendation of Reflow soldering / Dip soldering: Not recommended

1,000pcs per reel in a 12mm width tape. (Standard)

Reel diameter:

φ180mm

Product features

Color temperature

Half Intensity Angle

Die materials

Rank grouping parameter

Assembly method

Soldering methods

Taping and reel

Recommended Applications

・Residential

lighting, Office lighting, Plant lighting, Store lighting, and Special lighting etc.

2009.5.30

Page 1
