DE-9P-T-N-S1E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DE-9P-T-N-S1E

DE-9P-T-N-S1E: DescriptionD Subminiature Connector, 9 Contact(s), Male, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size155KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric Compare View All

DE-9P-T-N-S1E Overview

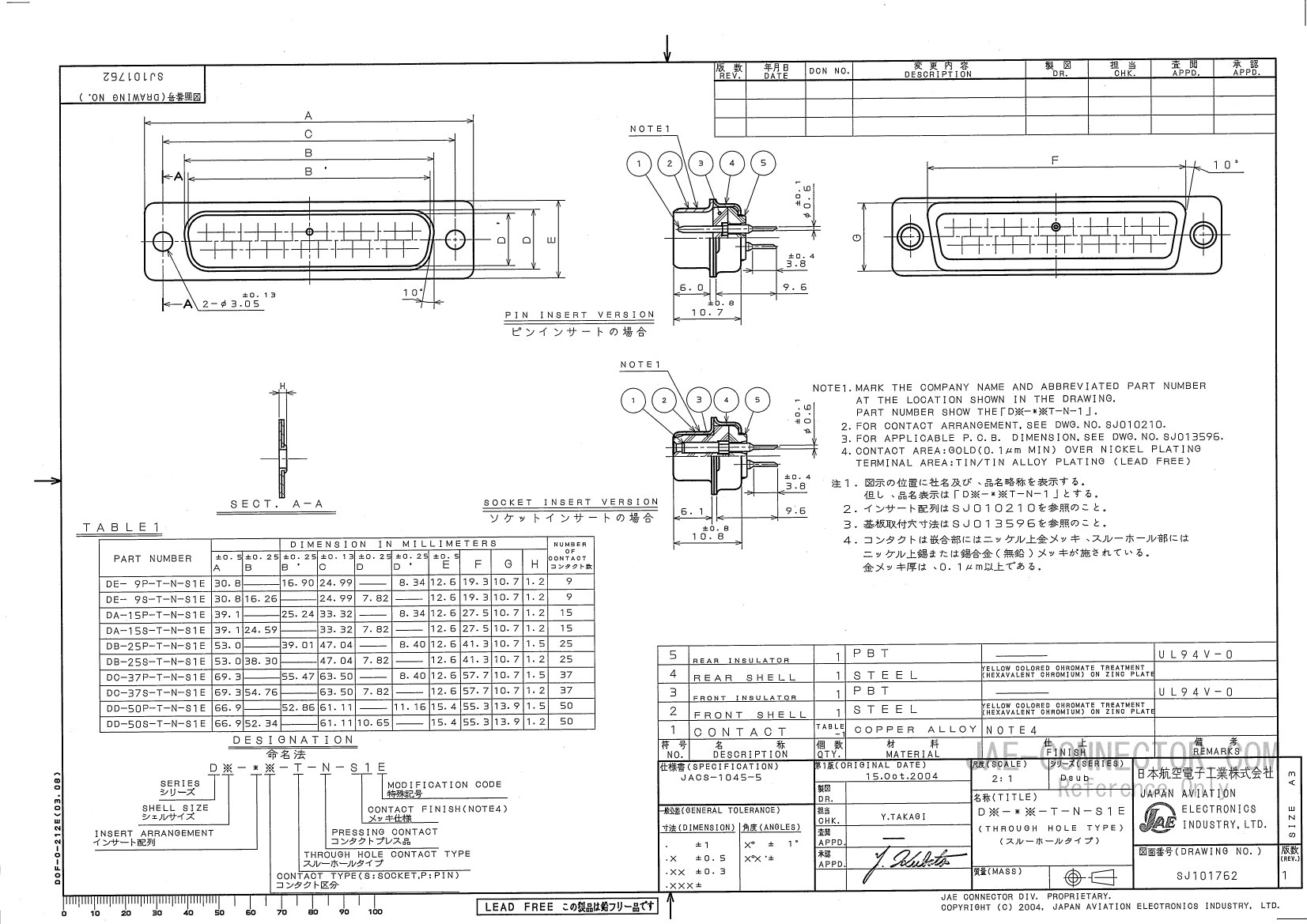

D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, LEAD FREE

DE-9P-T-N-S1E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Japan Aviation Electronics Industry Limited
package instruction	LEAD FREE
Reach Compliance Code	unknown
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	ZINC
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

DE-9P-T-N-S1E Related Products

	DE-9P-T-N-S1E	DC-37P-T-N-S1E	DC-37S-T-N-S1E	DD-50S-T-N-S1E	DE-9S-T-N-S1E	DA-15P-T-N-S1E	DA-15S-T-N-S1E	DB-25P-T-N-S1E	DB-25S-T-N-S1E
Description	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, LEAD FREE	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, LEAD FREE	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 50 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, LEAD FREE	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, LEAD FREE	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, LEAD FREE
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL	NOT SPECIFIED	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL	GOLD (4) OVER NICKEL
Contact point gender	MALE	MALE	FEMALE	FEMALE	FEMALE	MALE	FEMALE	MALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC	ZINC
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	1/E	4/C	4/C	5/D	1/E	2/A	2/A	3/B	3/B
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	37	37	50	9	15	15	25	25
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	-	-	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
Base Number Matches	1	1	1	1	1	-	-	-	-
Contact completed and terminated	-	TIN	TIN	TIN	-	TIN	TIN	TIN	TIN
JESD-609 code	-	e3	e3	e3	-	e3	e3	e3	e3
Manufacturer's serial number	-	D	D	D	-	D	D	D	D
