CMR2U-06BKLEADFREE datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> CMR2U-06BKLEADFREE

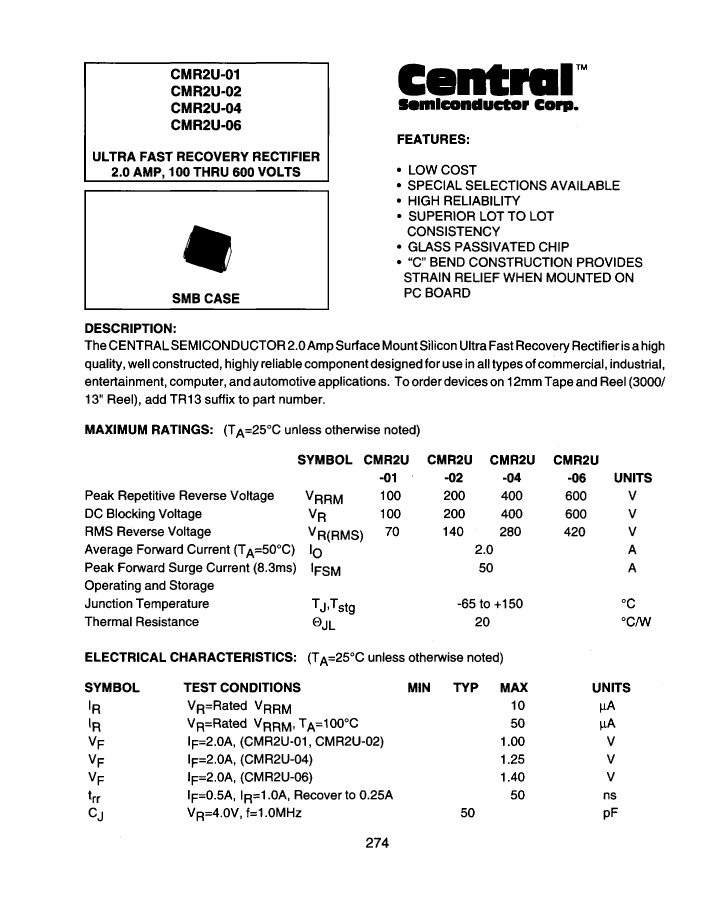

CMR2U-06BKLEADFREE: DescriptionRectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size39KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CMR2U-06BKLEADFREE Overview

Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon,

CMR2U-06BKLEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	ULTRA FAST RECOVERY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10

Preview

Download Datasheet

View All

CMR2U-06BKLEADFREE Related Products

	CMR2U-06BKLEADFREE	CMR2U-01BK	CMR2U-06BK	CMR2U-02BK	CMR2U-02BKLEADFREE	CMR2U-01BKLEADFREE	CMR2U-04BKLEADFREE	CMR2U-04BK
Description	Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 2A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 2A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon,
Is it lead-free?	Lead free	Contains lead	Contains lead	Contains lead	Lead free	Lead free	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible	incompatible	incompatible	conform to	conform to	conform to	incompatible
Reach Compliance Code	compliant	not_compliant	not_compliant	not_compliant	compliant	compliant	compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.7 V	1 V	1.7 V	1 V	1 V	1 V	1.4 V	1.4 V
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e3	e0	e0	e0	e3	e3	e3	e0
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	260	260	260	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	100 V	600 V	200 V	200 V	100 V	400 V	400 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Tin/Lead (Sn80Pb20)	Tin/Lead (Sn80Pb20)	Tin/Lead (Sn80Pb20)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Tin/Lead (Sn80Pb20)
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	10	10	10	NOT SPECIFIED
Maker	Central Semiconductor	-	-	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor
