REVISIONS
DESCRIPTION
ECN 3150: UPDATE DWG FORMAT
1
DATE
1/10/08
CHANGED BY
D.GRIFFIN
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
L-COM, INC. ANY REPRODUCTIONS IN PART OR WHOLE WITHOUT THE WRITTEN
PERMISSION OF L-COM, INC. IS PROHIBITED.
D
.375 9.53
.83 21.08
D
.13 .01 [
3.3 .25]
.024 0.61
.236 5.99
.188 4.78
.451 11.46
C
.128 3.25
.256 6.50
RECOMMENDED
MOUNTING HOLE
RECOMMENDED
FERRULE CRIMP SIZE.
CENTER PIN TO BE SOLDERED
BRAID
DIELECTRIC
RECOMMENDED
CABLE STRIPPING
DIMENSIONS
.098 2.49
C
CENTER CONDUCTOR
B
NOTES:
MATERIAL:
BODY: BRASS
FERRULE: BRASS OR COPPER ALLOY
PIN: BERYLLIUM COPPER
LOCKWASHER: BRASS
HEX NUT: BRASS
INSULATION: PTFE
FINISH:
BODY: GOLD PLATE
FERRULE: GOLD PLATE
PIN: GOLD PLATE
LOCKWASHER: GOLD PLATE
HEX NUT: GOLD PLATE
ELECTRICAL:
IMPEDANCE: 50 OHM
PACKAGING:
INDIVIDUALLY PACKAGE EACH ASSEMBLY UTILIZING APPROPRIATE SIZED BAG
APPLICATION:
RG174 COAX CABLE ASSEMBLIES.
ADDITIONAL
SHRINK TUBING SHALL BE SUPPLIED WITH CONNECTOR.
FERRULE
CENTER PIN
BODY
LOCKWASHER
HEX NUT
B
RoHS Compliant
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
TOLERANCES TO BE:
.X .1 [2.5]
.XX .01 [.25]
.XXX .005 [.13]
ANGLES 2
APPROVALS
DRAWN BY
T.CLARK
CHECKED BY
D.PARHAM
APPROVED BY
C.MCCORMICK
DATE
05/17/2002
05/17/2002

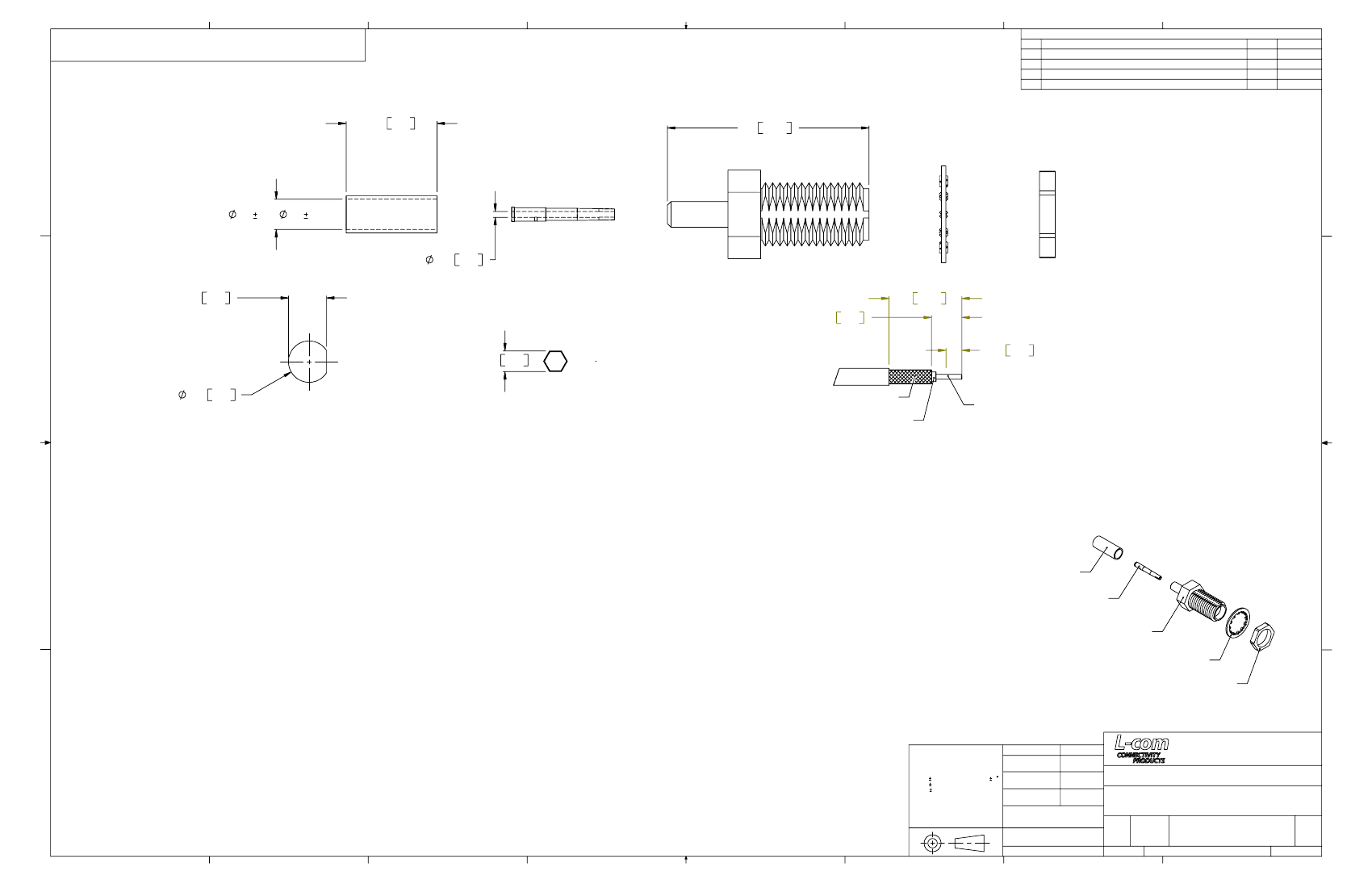

PRODUCT DESCRIPTION
05/17/2002
SIZE
CATEGORY
A
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
A
COAXIAL
OVERALL CABLE LENGTH TOL:
≤
60 [1524] +3 [76.2] / - 0
> 60 [1524] +5% / -0%
PROJ
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR
CONN SMA F BHD RG174 CRIMP NK
B
FSCM NO.
43321
DWG. NO.
REV.
BAC06A
1
E
8
7
6
5
4
3
2
SCALE: 1:2
CAD FILE: BAC06A.SLDDRW
SHEET 1 OF 1
