Data Sheet
Preliminary
110W 10xxnm High Power Laser Diode Bar on
Microchannel Cooler
BAC110C-10xx-01/02

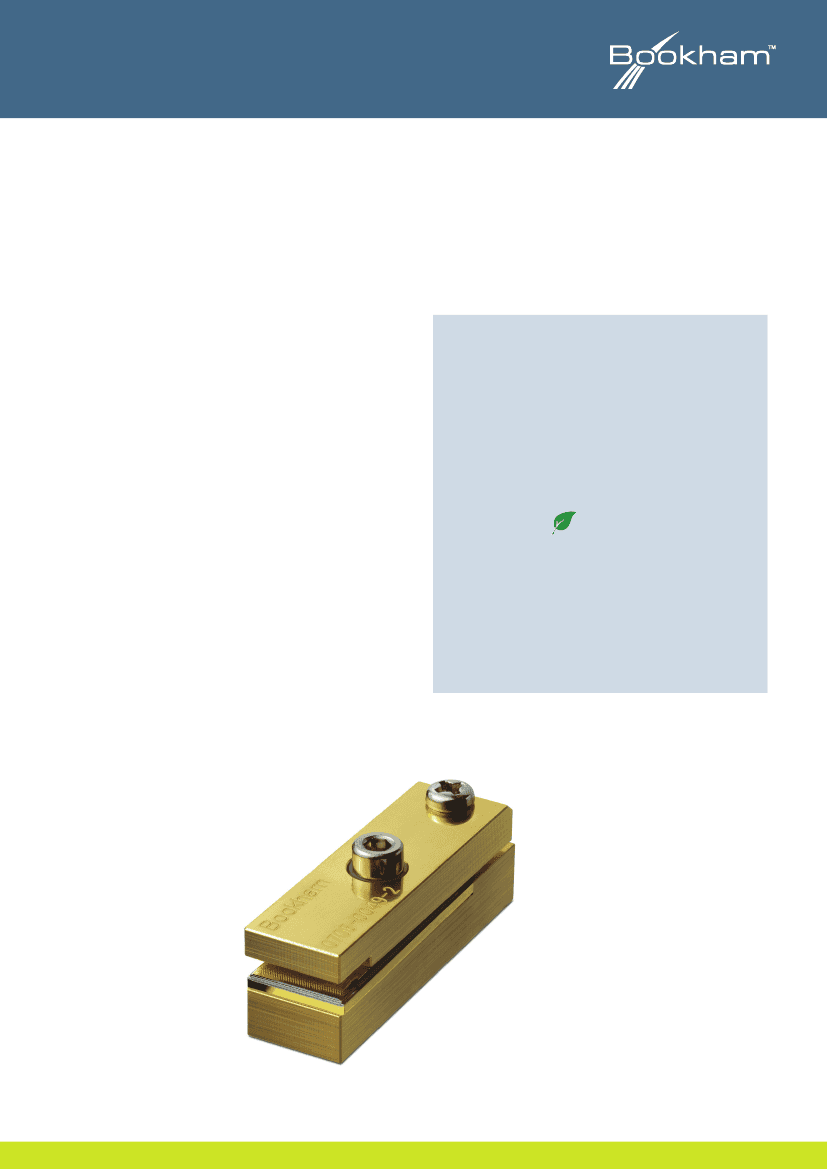

The Bookham BAC110C-10xx-01/02 50% fill factor laser diode
bar on microchannel cooler series has been designed to
provide the increased brightness and reliability required for
direct diode applications and as replacement for Nd:YAG
lasers. The proprietary E2 front mirror passivation process,
developed at our Zurich site, prevents Catastrophic Optical
Damage (COD) to the laser diode facet even at extremely high
output powers. The laser diode bars are mounted on an
expansion matched CuW submount onto a water-cooled
microchannel package providing very high reliability in CW and
pulsed (1-Hz type) applications.
Features:
• Mounted 10mm x 2.4mm laser diode bar
• Active microchannel cooler (water-cooled)
• 110W operating power
• Highly reliable single quantum well MBE structure
• Telecom grade AuSn mounting technology
• Assembly option with Cu base and cover
• Standard wavelength at 1030nm
(others available on request)
• RoHS compliant
Applications:
• Direct applications such as material processing
• Nd:YAG laser replacement
• Medical
• Printing
1
Data Sheet
Characteristics
Parameter
CW Output Power
Central Wavelength
[1]
BAC110C-1030-01/02
Spectral Width (FWHM)
Wavelength Shift with Temperature
Beam Divergence
Parallel to Junction (90% of Power)
Perpendicular to Junction (FWHM)
Polarization
Threshold Current
Slope Efficiency
Conversion Efficiency
Series Resistance
Operating Current
Operating Voltage
Operating Temperature
Watercooler Flow
Microchannel Cooler Differential Pressure
Notes:
[1] Reduced wavelength window/extended range available on request (900-1060nm).
Symbol
P
op
λ
c1030
∆λ
dλ
c
/dT
op
θ
//
θ⊥
–
I
th
η
D
= P
op
/(I
op
-I
th
)
H = P
op
/(V
op
xI
op
)
R
s
I
op
V
op
T
op
Q
w
P
w
Typical
110
1030 ± 10
4
0.3
7
27
TE
14
0.9
58
1.3
140
1.4
25 ± 5
22 ± 4
0.7
Unit
W
nm
nm
nm/°C
deg
–
A
W/A
%
mΩ
A
V
°C
l/hrs
bar
Bar Dimensions
Parameter
Bar Width
Resonator Length
Number of Emitters
Emitter Spacing
Emitter Width
Fill Factor
Symbol
b
l
n
p
w
f
Typical
10
2.4
48
200
100
50
Unit
mm
mm
–
µm
µm
%
2
Data Sheet

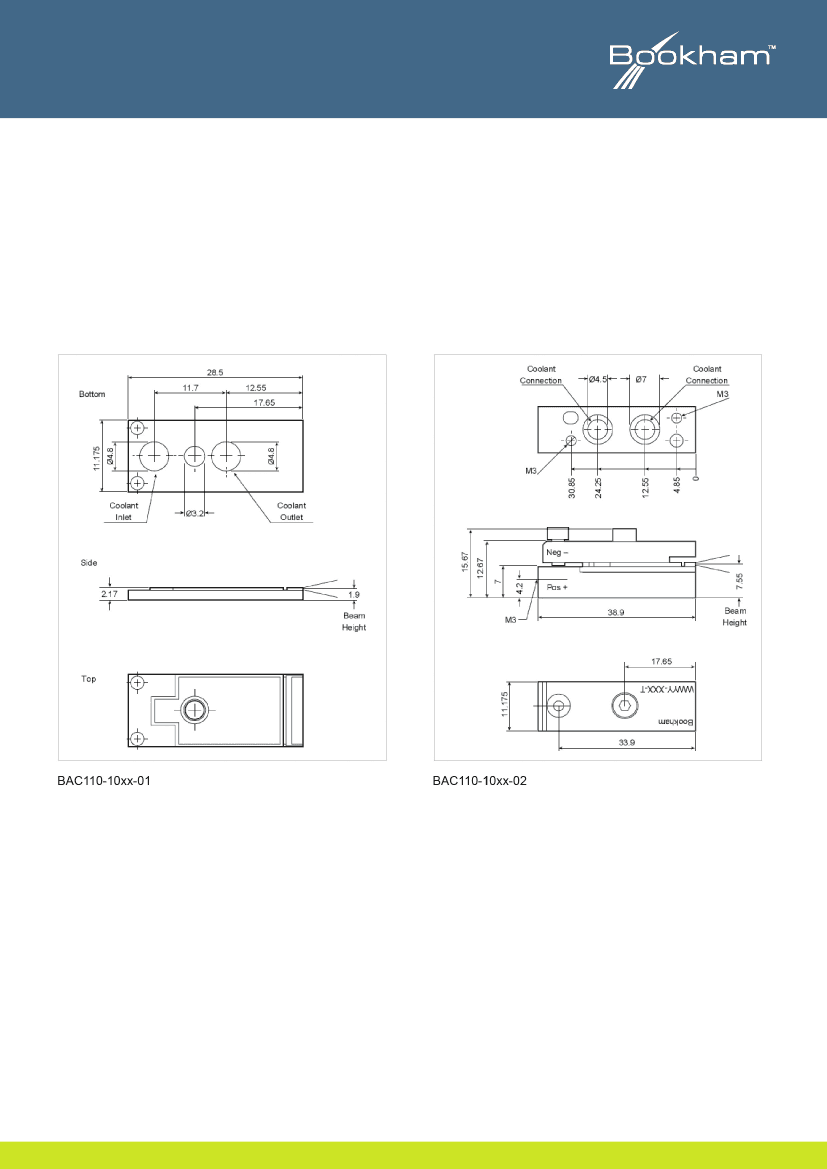

Microchannel Cooler
Dimensions (mm)
Microchannel Cooler with Base
and Cover Dimensions (mm)
3
Data Sheet
RoHS Compliance
Bookham is fully committed to environment
protection and sustainable development and has
set in place a comprehensive program for
removing polluting and hazardous substances from
all of its products. The relevant evidence of RoHS
compliance is held as part of our controlled
documentation for each of our compliant products.
RoHS compliance parts are available to order,
please refer to the ordering information section for
further details.
Ordering Information:
BAC110C-1030-01
BAC110C-1030-02
110W 1030nm Laser Diode Bar on Microchannel Cooler
110W 1030nm Laser Diode Bar on Microchannel Cooler with Base and Cover
Contact Information
Bookham
(Switzerland) AG
Binzstrasse 17
8045 Zurich
Switzerland
• Tel: +41 44 455 8787
• Fax: +41 44 455 8586
EMEA Sales Contact
Gunnar Stolze
• Tel: +41 79 635 3777
ASIA Sales Contact
Patrick Lee
• Tel: +852 9197 7014
North America
Sales Contact
Michael Cutler
• Tel: +1 678 763 0777
Japan Sales Contact
Japan Laser Corporation
• Tel: +813 5285 0861
Important Notice
Performance figures, data and any illustrative material
provided in this data sheet are typical and must be
specifically confirmed in writing by Bookham before
they become applicable to any particular order or
contract. In accordance with the Bookham policy of
continuous improvement specifications may change
without notice. The publication of information in this
data sheet does not imply freedom from patent or other
protective rights of Bookham or others. Further details
are available from any Bookham sales representative.
www.bookham.com
highpower@bookham.com
DANGER
INVISIBLE LASER RADIATION - AVOID
EYE OR SKIN EXPOSURE TO DIRECT
OR SCATTERED RADIATION
ISO 9001:2000
Certified
INVISIBLE LASER
RADIATION DO NOT VIEW
DIRECTLY WITH OPTICAL
INSTRUMENTS
CLASS 1M LASER PRODUCT
MAX POWER 110W
WAVELENGTH 900-1060nm
CLASS IV LASER PRODUCT
FM 68159
REFERENCE IEC
60825-1 Edition 1.2
THIS PRODUCT
COMPLIES WITH
21CFR 1040.10
4
BH13575 Rev 1.0 June 2007.
©Bookham 2005. Bookham is a registered trademark of Bookham Inc.
