BAC502 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BAC502

BAC502: DescriptionCOAX CRIMP REV-POL SMA M RG316; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerL-com Global Connectivity; Environmental Compliance

Download Datasheet Parametric View All

BAC502 Overview

COAX CRIMP REV-POL SMA M RG316

BAC502 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	L-com Global Connectivity
Reach Compliance Code	unknown
Connector type	RF SMA CONNECTOR

Preview

Download Datasheet

View All

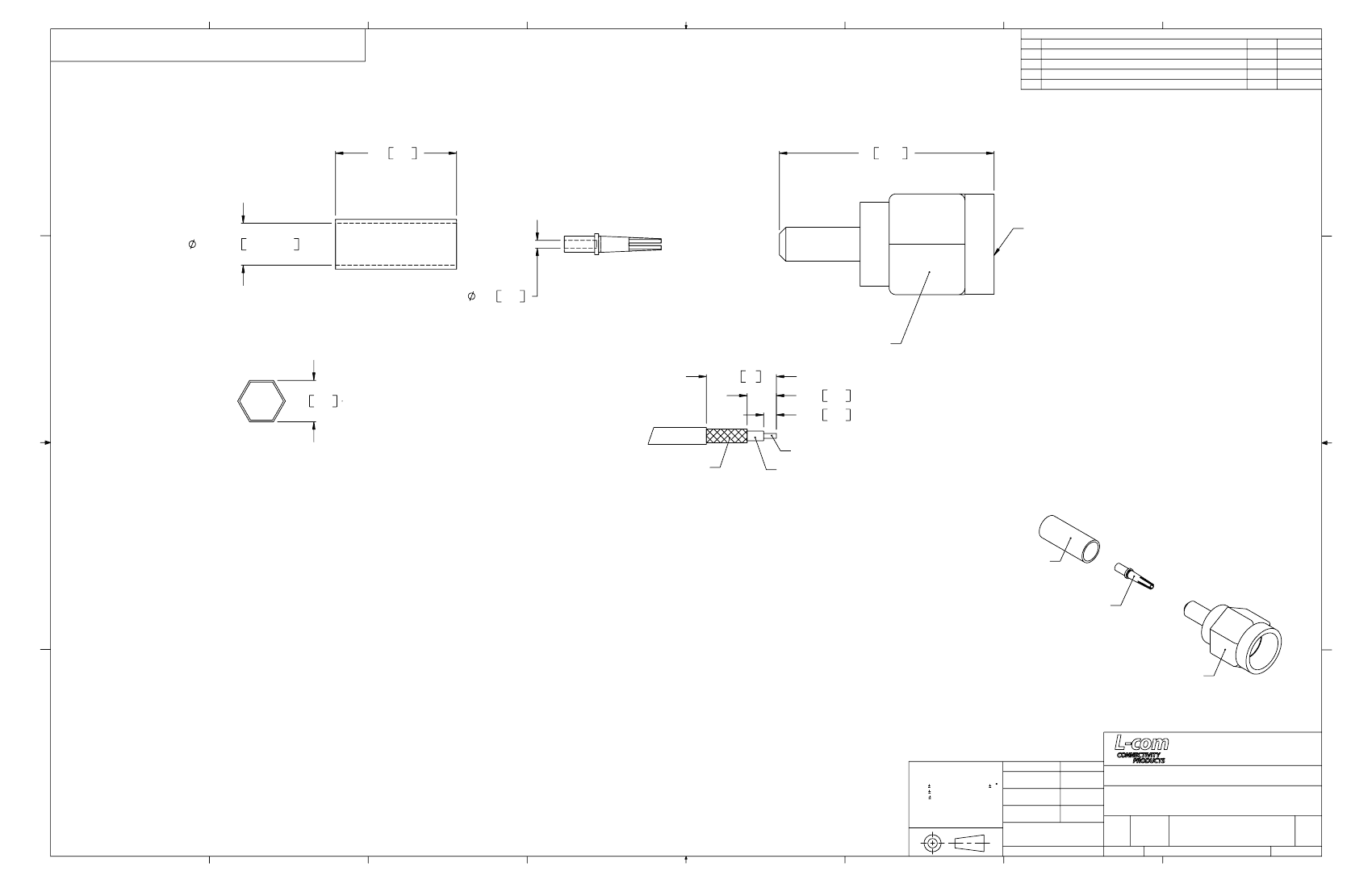

REV

REVISIONS

DESCRIPTION

ECN 3155: UPDATE DWG FORMAT

DATE

1/18/08

CHANGED BY

D.GRIFFIN

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF

L-COM, INC. ANY REPRODUCTIONS IN PART OR WHOLE WITHOUT THE WRITTEN

PERMISSION OF L-COM, INC. IS PROHIBITED.

.38 9.65

.7 17.78

1/4-36 THREAD

.130±.010 3.30±0.254

.024 0.61

7.92

.312 HEX

.433 11

.128 3.25

.165 4.19

.098 2.49

CENTER CONDUCTOR

BRAID

DIELECTRIC

RECOMMENDED FERRULE

CRIMP SIZE

CENTER PIN: SOLDER

RECOMMENDED

CABLE STRIPPING

DIMENSIONS

FERRULE

NOTES:

MATERIAL:

BODY: BRASS

FERRULE: BRASS OR COPPER ALLOY

PIN: BRASS

INSULATOR: PTFE

FINISH:

BODY: GOLD PLATE

FERRULE: GOLD PLATE

PIN: GOLD PLATE

BODY

ELECTRICAL:

IMPEDANCE: 50 OHM

PACKAGING:

INDIVIDUALLY PACKAGE EACH ASSEMBLY UTILIZING APPROPRIATE SIZED BAG

APPLICATION:

RG316, RG188 & RG174 COAX CABLE ASSEMBLIES

APPROVALS

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES [mm] DRAWN BY

TOLERANCES TO BE:

C.MCCORMICK

ANGLES 2

.X .1 [2.5]

.XX .01 [.25]

CHECKED BY

.XXX .005 [.13]

D.PARHAM

OVERALL CABLE LENGTH TOL:

APPROVED BY

≤

60 [1524] +3 [76.2] / - 0

R.CARRICK

> 60 [1524] +5% / -0%

PROJ

RoHS Compliant



DATE
