BCX74 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BCX74

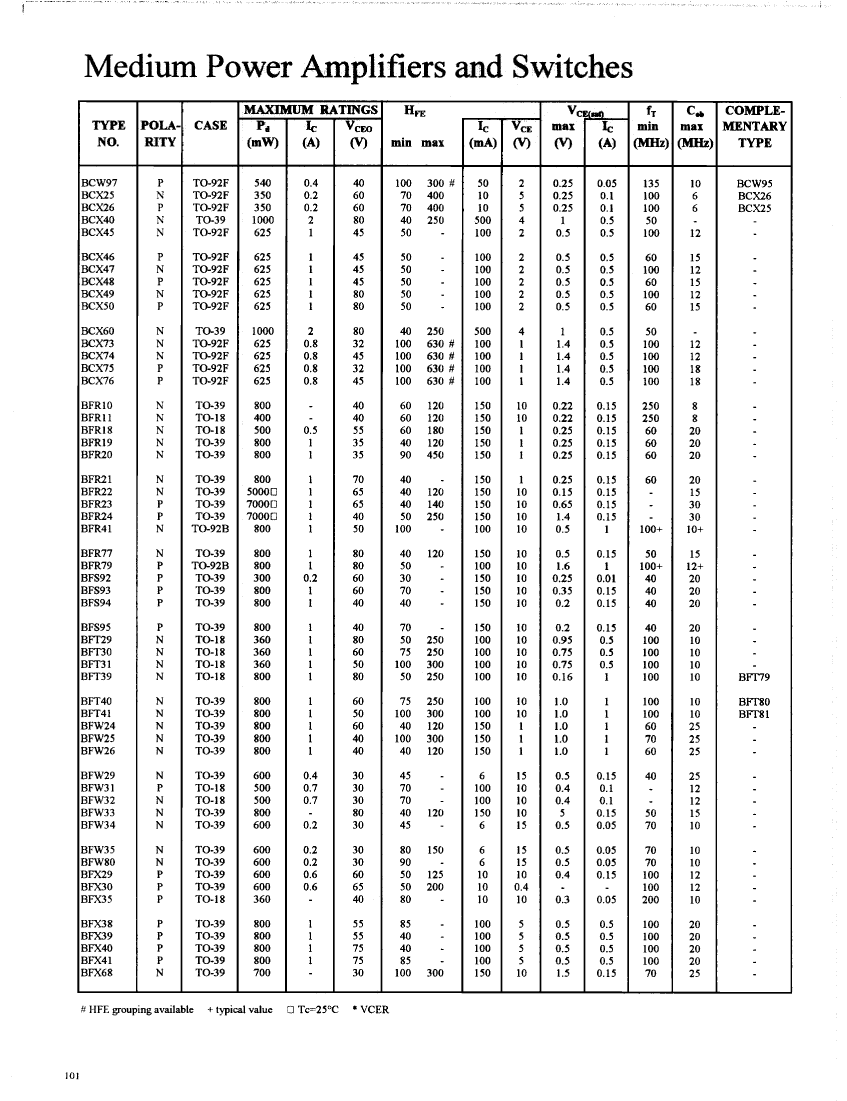

BCX74: DescriptionSmall Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-92,; CategoryDiscrete semiconductor The transistor; File Size65KB，1 Pages; ManufacturerMicro Electronics; Websitehttp://www.microelectr.com.hk

Download Datasheet Parametric Compare View All

BCX74 Overview

Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-92,

BCX74 Parametric

Parameter Name	Attribute value
Maker	Micro Electronics
package instruction	CYLINDRICAL, O-PBCY-W3
Reach Compliance Code	unknown
Maximum collector current (IC)	0.8 A
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-W3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.625 W
Certification status	Not Qualified
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz

Preview

Download Datasheet

View All

BCX74 Related Products

	BCX74	BCX45	BCX73	BCX49	BCX25	BFR41
Description	Small Signal Bipolar Transistor, 0.8A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-92,	Small Signal Bipolar Transistor, 1A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-92,	Small Signal Bipolar Transistor, 0.8A I(C), 32V V(BR)CEO, 1-Element, NPN, Silicon, TO-92,	Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92,	Small Signal Bipolar Transistor, 0.2A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, TO-92,	Small Signal Bipolar Transistor, 1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, TO-92,
Maker	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
package instruction	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	CYLINDRICAL, O-PBCY-W3	-	CYLINDRICAL, O-PBCY-W3
Maximum collector current (IC)	0.8 A	1 A	0.8 A	-	0.2 A	1 A
Collector-emitter maximum voltage	45 V	45 V	32 V	-	60 V	50 V
Configuration	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE
Minimum DC current gain (hFE)	100	50	100	-	70	100
JEDEC-95 code	TO-92	TO-92	TO-92	-	TO-92	TO-92
JESD-30 code	O-PBCY-W3	O-PBCY-W3	O-PBCY-W3	-	O-PBCY-W3	O-PBCY-W3
Number of components	1	1	1	-	1	1
Number of terminals	3	3	3	-	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	-	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	-	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	-	NPN	NPN
Maximum power dissipation(Abs)	0.625 W	0.625 W	0.625 W	-	0.35 W	0.8 W
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
surface mount	NO	NO	NO	-	NO	NO
Terminal form	WIRE	WIRE	WIRE	-	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	-	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	-	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	-	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz	100 MHz	-	100 MHz	100 MHz
