BQ2002PN

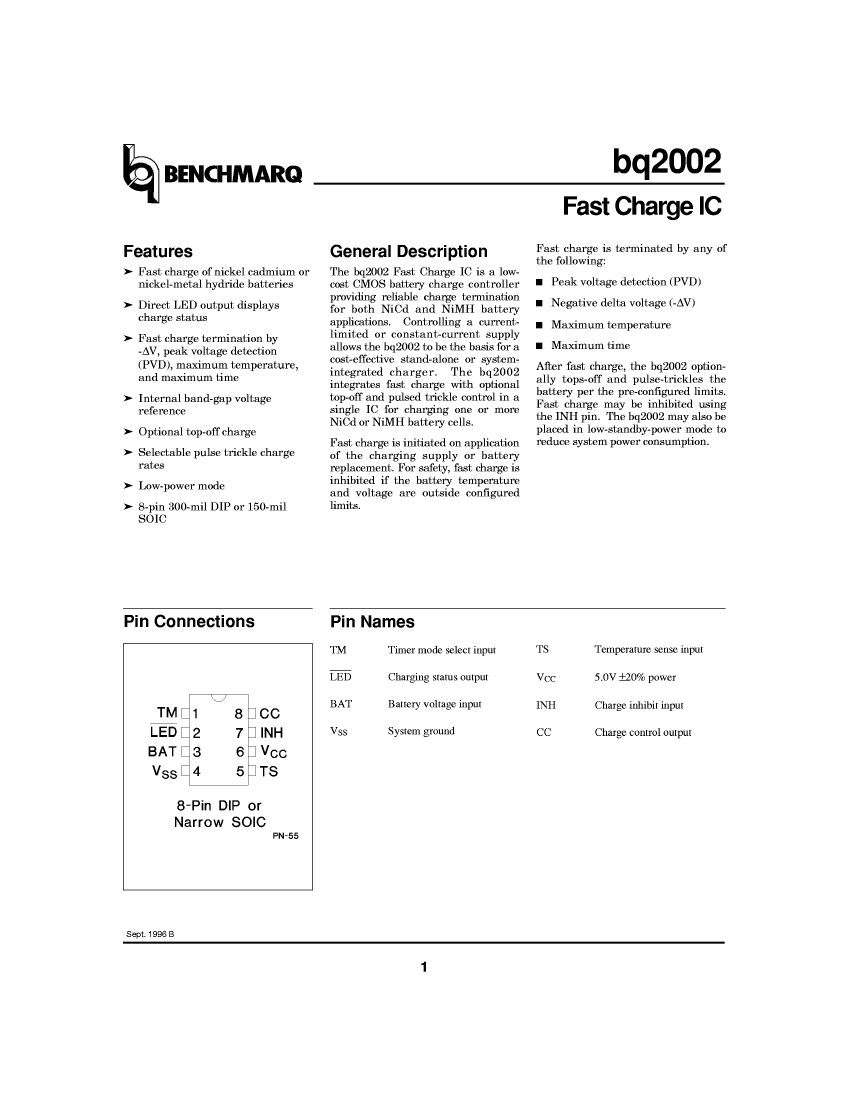

Description
Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PDIP8, 0.300 INCH, PLASTIC, DIP-8
CategoryPower/power management    The power supply circuit
File Size275KB,12 Pages
ManufacturerBenchmarq Microelectronics Inc
Download Datasheet Parametric Compare View All

BQ2002PN Online Shopping

Suppliers Part Number Price MOQ In stock
BQ2002PN - - View Buy Now

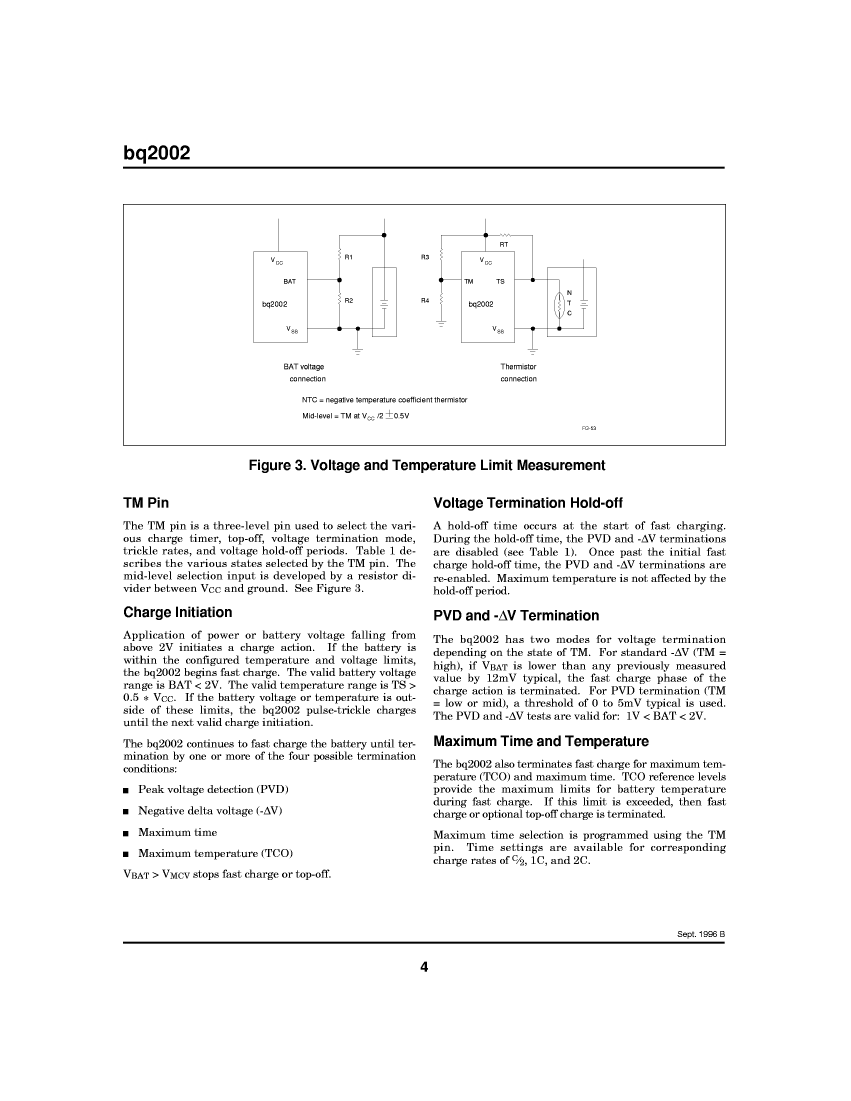

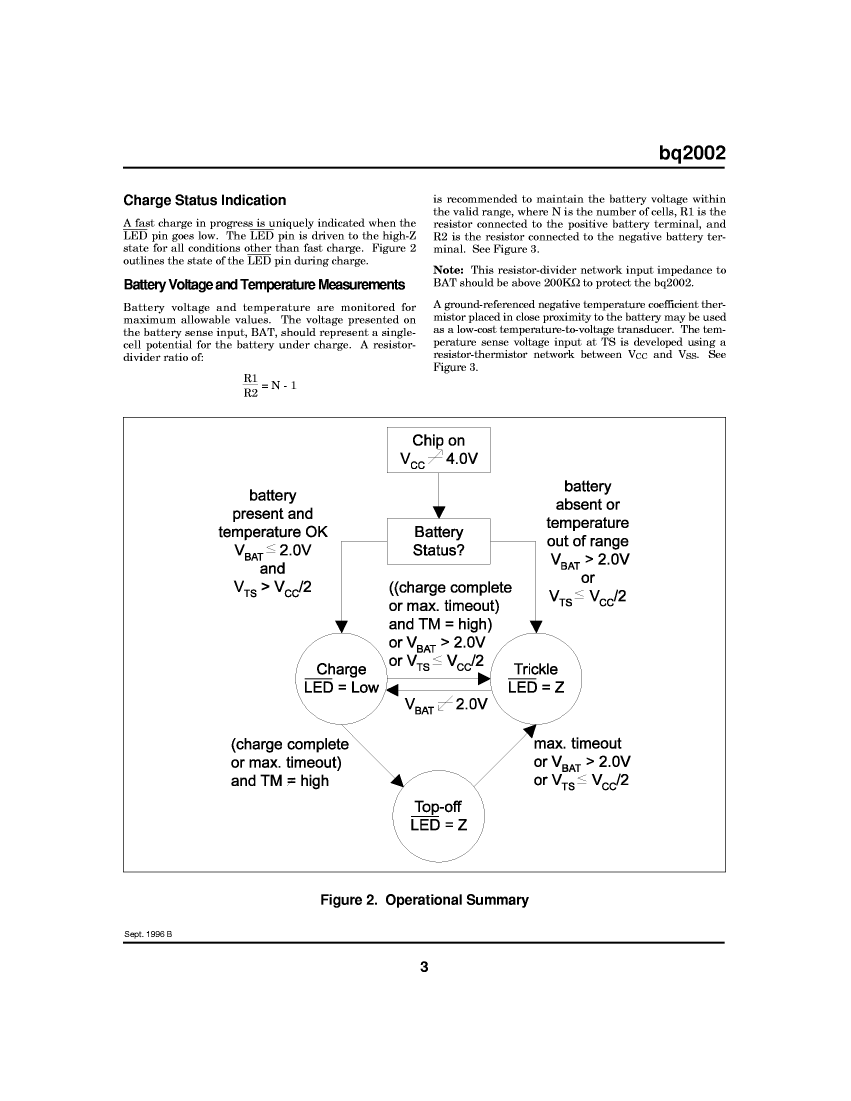

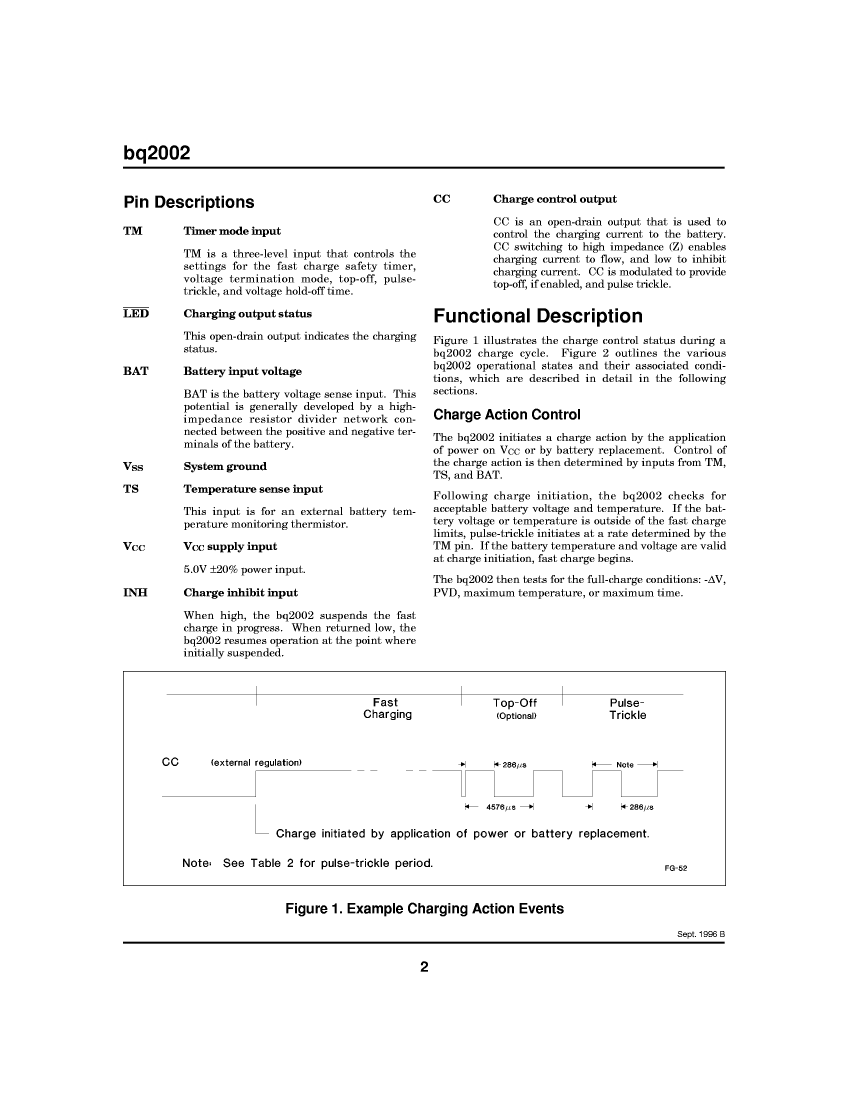

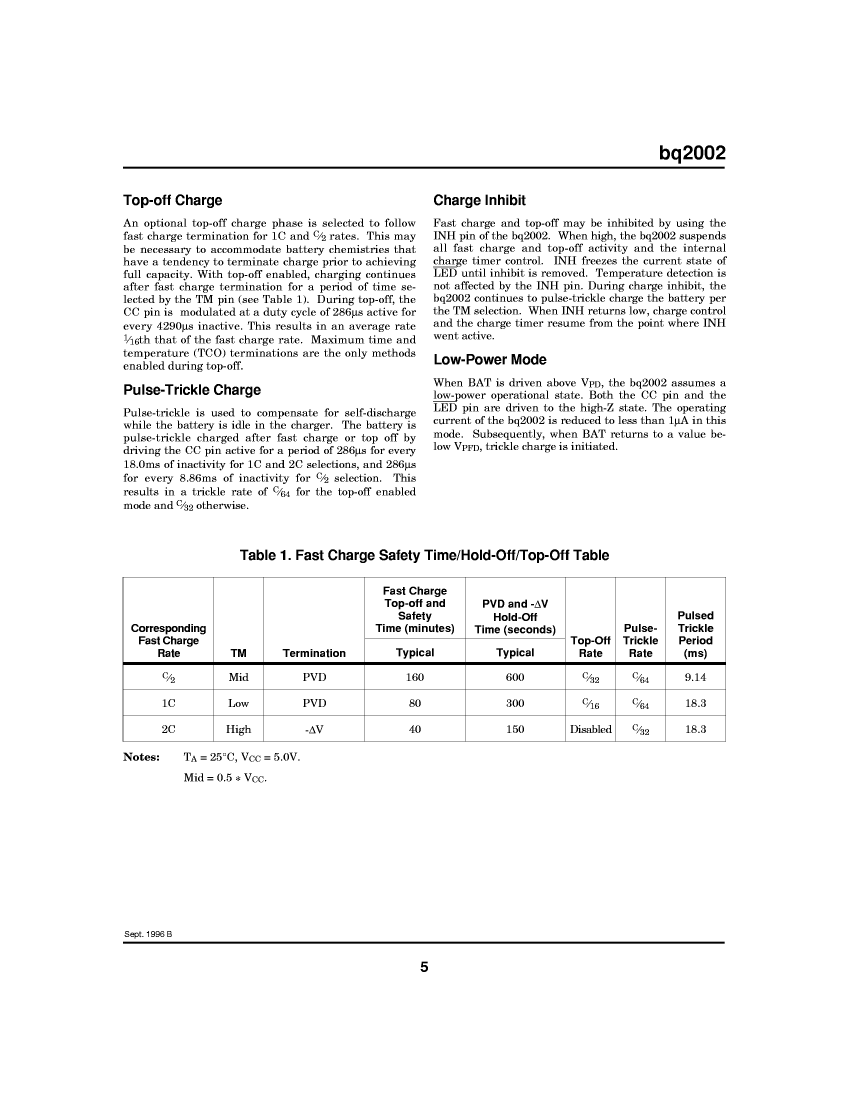

BQ2002PN Overview

Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PDIP8, 0.300 INCH, PLASTIC, DIP-8

BQ2002PN Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerBenchmarq Microelectronics Inc
package instructionDIP, DIP8,.3
Reach Compliance Codeunknown
Adjustable thresholdNO
Analog Integrated Circuits - Other TypesPOWER SUPPLY SUPPORT CIRCUIT
JESD-30 codeR-PDIP-T8
JESD-609 codee0
length9.27 mm
Number of channels1
Number of functions1
Number of terminals8
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP8,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Certification statusNot Qualified
Maximum seat height4.57 mm
Maximum supply current (Isup)0.25 mA
Maximum supply voltage (Vsup)6 V
Minimum supply voltage (Vsup)4 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm

BQ2002PN Related Products

BQ2002PN BQ2002SN
Description Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PDIP8, 0.300 INCH, PLASTIC, DIP-8 Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PDSO8, 0.150 INCH, SOIC-8
Is it Rohs certified? incompatible incompatible
Maker Benchmarq Microelectronics Inc Benchmarq Microelectronics Inc
package instruction DIP, DIP8,.3 0.150 INCH, SOIC-8
Reach Compliance Code unknown unknown
Adjustable threshold NO NO
Analog Integrated Circuits - Other Types POWER SUPPLY SUPPORT CIRCUIT POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code R-PDIP-T8 R-PDSO-G8
JESD-609 code e0 e0
length 9.27 mm 4.89 mm
Number of channels 1 1
Number of functions 1 1
Number of terminals 8 8
Maximum operating temperature 70 °C 70 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIP SOP
Encapsulate equivalent code DIP8,.3 SOP8,.25
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V
Certification status Not Qualified Not Qualified
Maximum seat height 4.57 mm 1.78 mm
Maximum supply current (Isup) 0.25 mA 0.25 mA
Maximum supply voltage (Vsup) 6 V 6 V
Minimum supply voltage (Vsup) 4 V 4 V
Nominal supply voltage (Vsup) 5 V 5 V
surface mount NO YES
technology CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE GULL WING
Terminal pitch 2.54 mm 1.27 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED
width 7.62 mm 3.935 mm
