THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
D
1.1 [27.94]
.50 [12.7]
D
C
COLOR-CODE
NYLON CAP
BLACK PVC
INSULATION
BNC JACK
C
B
B
NOTES:
RoHS Compliant
APPROVALS
UNLESS OTHERWISE SPECIFIED,
DRAWN BY
DIMENSIONS ARE IN INCHES [mm]
MCCORMICK
TOLERANCES TO BE:
.X .1 [2.5]
ANGLES 2 CHECKED BY
.XX .01 [.25]
D.PARHAM
.XXX .005 [.13]
OVERALL CABLE LENGTH TOL:
≤
60 [1524] +3 [76.2] / - 0
> 60 [1524] +5% / -0%
PROJ
APPROVED BY
R.CARRICK
DATE
CATEGORY
11/19/01
11/19/01
11/19/01
SIZE
PRODUCT DESCRIPTION
A
ELECTRICAL:
TERMINATING RESISTOR: 1/4 WATT @70°C METAL FILM TYPE, ±1% TOLERANCE.
PACKAGING:
INDIVIDUALLY PACKAGE EACH COMPONENT UTILIZING APPROPRIATE SIZED BAG
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845

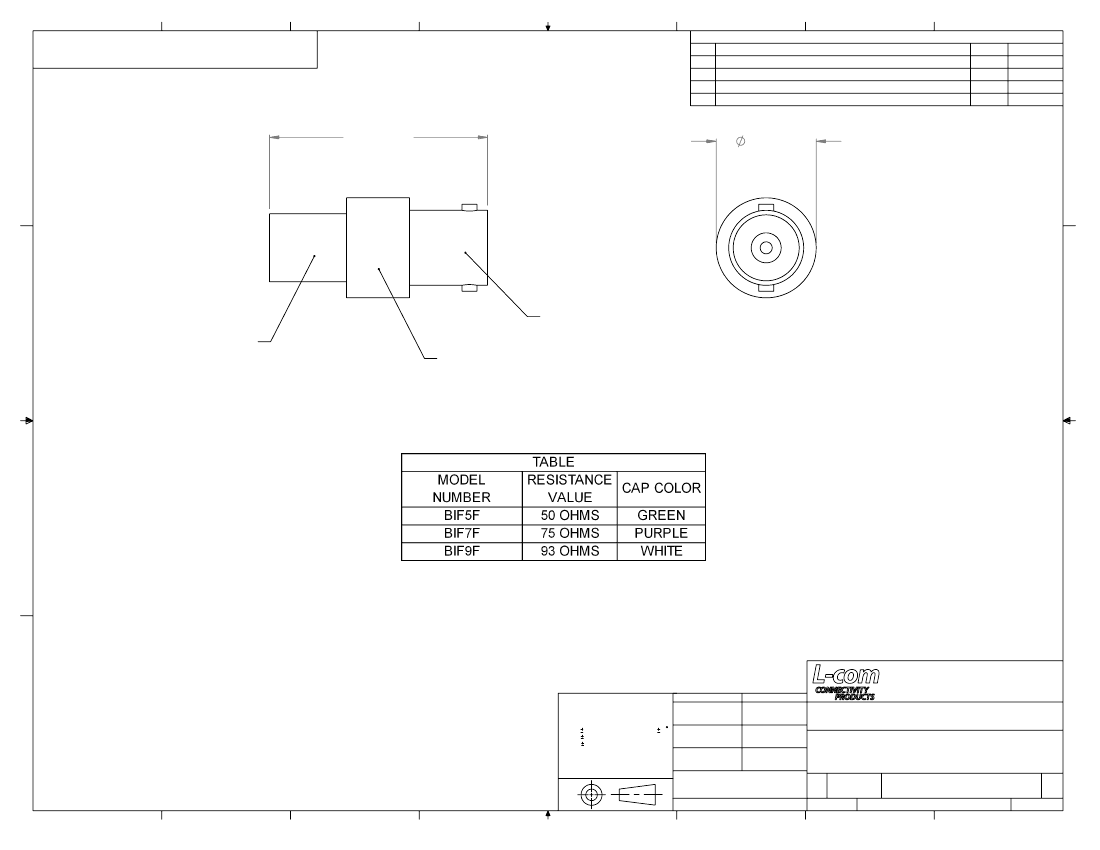

COAXIAL
TERMINATOR BNC F RG58
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
SCALE: NONE CAD FILE:
A
43321
FSCM NO.
DWG. NO.
BIF5F.SLDDRW
BIF5F
1
SHEET 1 OF 1
C
REV.
