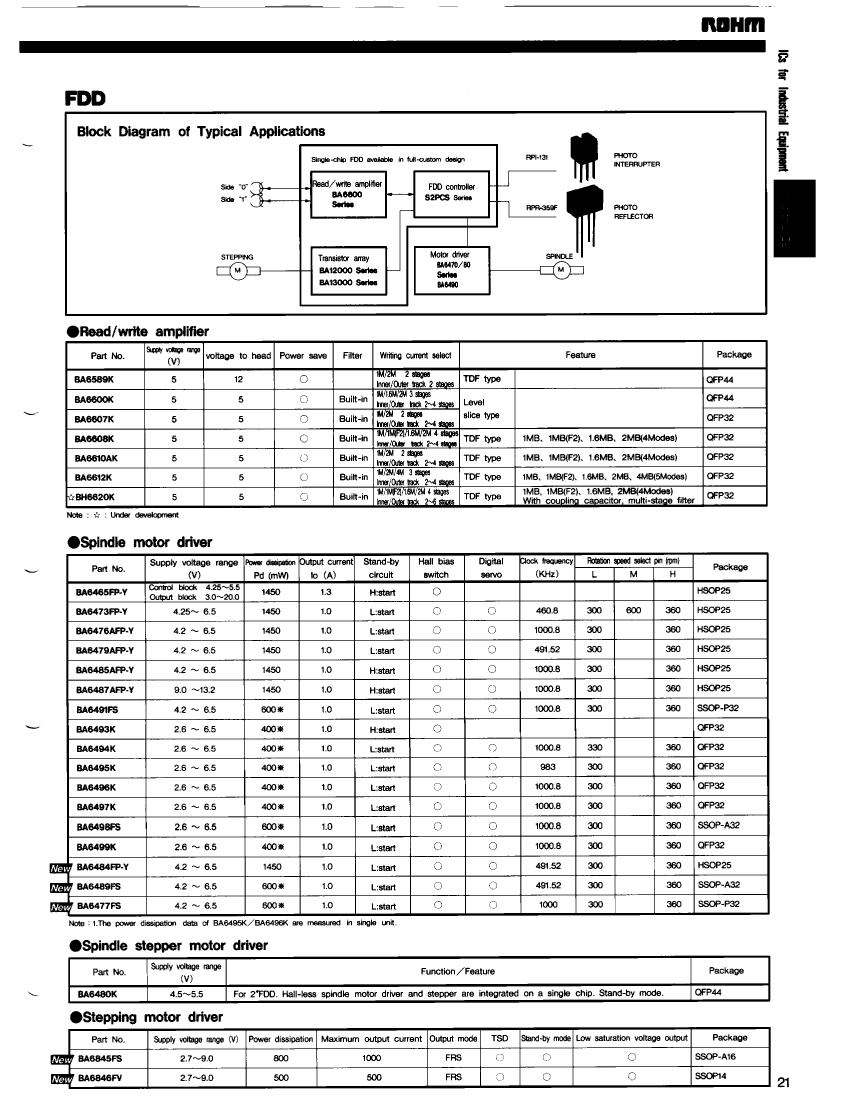

Download Datasheet Parametric View All

BA6487AFP-YE2 Overview

Brushless DC Motor Controller, 1A, PDSO27, HSOP-25

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HSSOP,
Contacts	25
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G27
length	13.6 mm
Number of functions	1
Number of terminals	27
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Certification status	Not Qualified
Maximum seat height	2.11 mm
Maximum supply voltage (Vsup)	13.2 V
Minimum supply voltage (Vsup)	9 V
surface mount	YES
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	5.4 mm
