CTLL1005-FH1N8S datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CTLL1005-FH1N8S

CTLL1005-FH1N8S: DescriptionGeneral Purpose Inductor, 0.0018uH, 1 Element, Ceramic-Core, SMD, 0402, CHIP; CategoryPassive components inductor; File Size522KB，1 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CTLL1005-FH1N8S Overview

General Purpose Inductor, 0.0018uH, 1 Element, Ceramic-Core, SMD, 0402, CHIP

CTLL1005-FH1N8S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	CT [ Central Technologies ]
package instruction	0402
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	0402
structure	Multilayer Chip
core material	CERAMIC
DC Resistance	0.1 Ω
Nominal inductance(L)	0.0018 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	CTLL1005FH
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	0.5 mm
Package length	1 mm
Package form	SMT
Package width	0.5 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	28
Maximum rated current	0.3 A
self resonant frequency	9400 MHz
series	CTLL1005-FH(S TOL)
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	TOLERANCE IS MEASURED AT 0.3 NANO HENRY
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz

Preview

Download Datasheet

View All

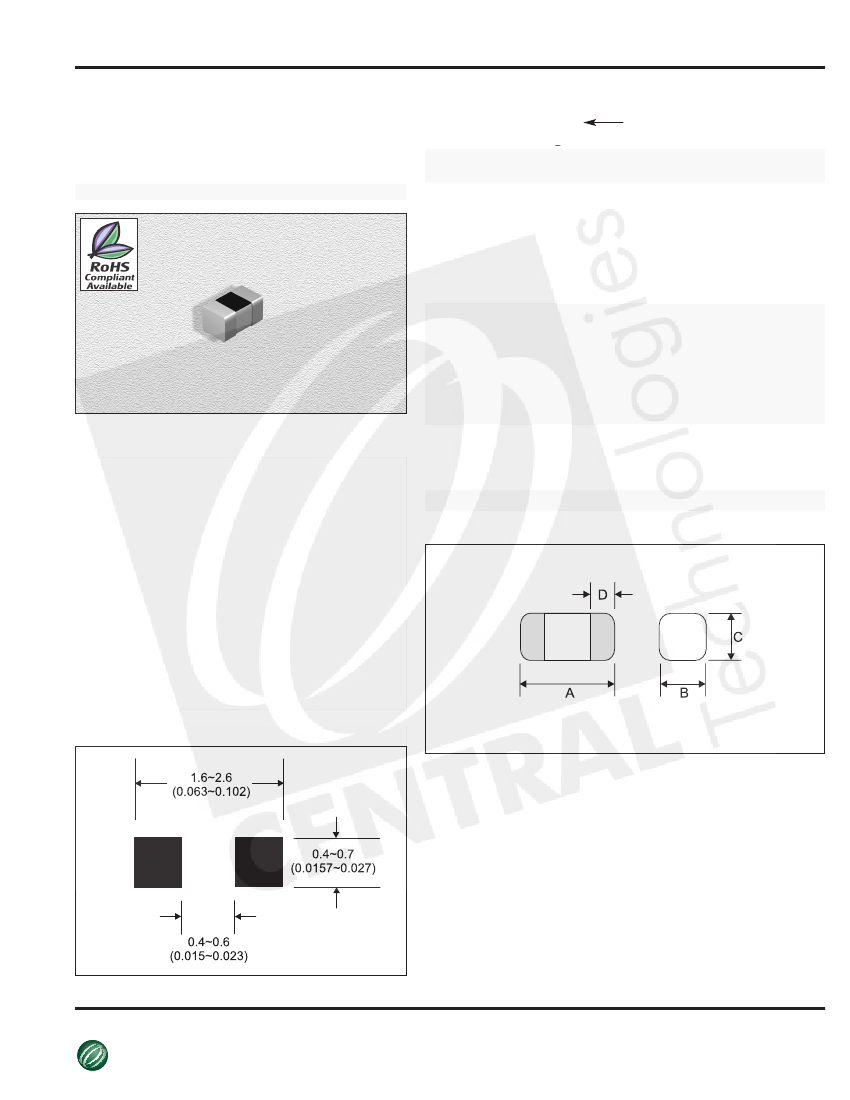

Multi-layer Chip Inductors - Ceramic

ctparts.com

CTLL1005FH Series

From 1.0 nH to 120 nH

Part

Number

SPECIFICATIONS

Please specify tolerance code when ordering.

CTLL1005_-FH5N6_

S = ±0.3nH, J = ±5%, K = ±10%

* S or K only, ** J or K only

CTLL1005F-FH

Please specify “F” for RoHS Compliant

Inductance

(nH)

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

L Test

Freq.

(MHz)

100

Factor

Typ.

Q Test

Freq.

(MHz)

800

100

SRF

Min.

(MHz)

13500

12000

10500

9400

8700

7700

6800

6300

5700

5100

4550

4100

3750

2950

2600

2350

1950

1750

1700

1650

1300

1250

1150

1000

850

750

DCR

Max.

(Ω)

.10

.12

.15

.18

.25

.30

.40

.50

.60

1.5

1.8

2.0

2.2

2.5

Rated

(mA)

300

200

180

150

100

ENGINEERING KIT #6F

Not shown at actual size.

CTLL1005_-FH1N0S

CTLL1005_-FH1N2S

CTLL1005_-FH1N5S

CTLL1005_-FH1N8S

CTLL1005_-FH2N2S

CTLL1005_-FH2N7S

CTLL1005_-FH3N3_*

CTLL1005_-FH3N9_*

CTLL1005_-FH4N7_*

CTLL1005_-FH5N6_*

CTLL1005_-FH6N8_**

CTLL1005_-FH8N2_**

CTLL1005_-FH10N_**

CTLL1005_-FH12N_**

CTLL1005_-FH15N_**

CTLL1005_-FH18N_**

CTLL1005_-FH22N_**

CTLL1005_-FH27N_**

CTLL1005_-FH33N_**

CTLL1005_-FH39N_**

CTLL1005_-FH47N_**

CTLL1005_-FH56N_**

CTLL1005_-FH68N_**

CTLL1005_-FH82N_**

CHARACTERISTICS

Description:

Ceramic core, multi-layer chip inductor for high

frequency applications

Applications:

Portable telephones, PMS, pagers and

miscellaneous high frequency circuits

Temperature Coefficient:

+250ppm/°C

Operating Temperature:

-40°C to + 100°C

Inductance Tolerance:

±0.3 nH, ±5% & ±10%

Testing:

Inductance and Q are tested on an HP4286A at

specified frequency

Packaging:

Tape & Reel

Marking:

Reels marked with inductance code and tolerance

Miscellaneous:

RoHS Compliant available

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

CTLL1005_-FHR10_**

CTLL1005_-FHR12_**

PHYSICAL DIMENSIONS

Size

inches

1.0±0.15

0.04±0.006

0.5±0.15

0.02±0.006

0.5±0.15

0.02±0.006

0.25±0.1

0.01±0.004

PAD LAYOUT

08.14.08

CENTRAL

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

TECHNOLOGIES
