Description
The SE5167 is an efficient linear voltage
regulator. It has extra low dropout voltage. At light
loads the typical dropout voltage is 15mV, at full
load the typical dropout voltage is 380mV. The
output voltage accuracy is better than 2%.
The SE5167 has low ground current at 65uA,
so it can help prolong battery life. The SE5167 is
specially designed for hand-held, battery-powered
devices.
Features
Typical 175mV dropout voltage at 150mA.
Low Ground current at 65uA. (Typ.)
Guaranteed 300mA output over the full
operating temperature range.
Extremely tight load and line regulation.
Low temperature coefficient.
Current and thermal limiting.
No-load stability.
Available in SOT-23-3L and TO-92 Packages.
Applications
CD/DVD-ROM, CD/RW
Wireless LAN card, Keyboard, Mouse
Battery Powered Equipments
PCMCIA Card
Ordering/Marking Information
Package
Ordering Information
3.3V
2.8V
2.5V
1.8V
1.5V
3.0V
3.3V
2.8V
2.5V
1.8V
1.5V
3.0V
Revision
12/5/2008
Preliminary and all contents are subject to change without prior notice.
© Seaward Electronics, Inc., 2006. • www.seawardinc.com.cn • Page 1
Marking Information
SE5167AHN
YYWW-LF
SE5167BHN
YYWW-LF
SE5167CHN
YYWW-LF
SE5167DHN
YYWW-LF
SE5167EHN
YYWW-LF
SE5167FHN
YYWW-LF
SE5167AHG
YYWW-LF
SE5167BHG
YYWW-LF
SE5167CHG
YYWW-LF
SE5167DHG
YYWW-LF
SE5167EHG
YYWW-LF
SE5167FHG
YYWW-LF
SE5167AHN-LF
SE5167BHN-LF
SE5167CHN-LF
SE5167DHN-LF
SE5167EHN-LF
SE5167FHN-LF
SE5167AHG-LF
SE5167BHG-LF
SE5167CHG-LF
SE5167DHG-LF
SE5167EHG-LF
SE5167FHG-LF
YY: year code
WW: week code.
LF: lead free.
Ordering/Marking Information (Continued)
Package
Ordering Information
3.3V
2.8V
2.5V
1.8V
1.5V
3.0V
3.3V
2.8V
2.5V
1.8V
1.5V
3.0V
SE5167ALN-LF
SE5167BLN-LF
SE5167CLN-LF
SE5167DLN-LF
SE5167ELN-LF
SE5167FLN-LF
SE5167ALG-LF
SE5167BLG-LF
SE5167CLG-LF
SE5167DLG-LF
SE5167ELG-LF
SE5167FLG-LF
167AN_
167BN_
167CN_
167DN_
167EN_
167FN_
167AG_
167BG_
167CG_
167DG_
167EG_
167FG_
Marking Information
Starting with 1, a bar on top of 1 is
for production year 2001, and
underlined 1 is for year 2002.
The
next character is marked on top for
2003, and underlined for 2004. The
naming pattern continues with
consecutive characters for later
years.
The last character is the week
code. (
A-Z:
1-26, a-z: 27-52)
A dot on top right corner is for
lead-free process.
LF: lead free.
Revision
12/5/2008
Preliminary and all contents are subject to change without prior notice.
© Seaward Electronics, Inc., 2006. • www.seawardinc.com.cn • Page 2
Absolute Maximum Ratings
(1)
Supply Input Voltage (VIN) ..……...……………....+6V
Power Dissipation (PD) ……….. Internally Limited
(3)
Operating Ratings
(2)
Supply Input Voltage (VIN) ……...….. +2.8V to +6V
Junction Temperature (TJ) …….….. 0°C to +125°C
Package Thermal Resistance
160°C/W (TO-92)
250°C/W (SOT-23-3L)
Junction Temperature (TJ) …….….... 0°C to +125°C
Lead Temperature (soldering, 5 sec.) …....…. 260°C
Storage Temperature (TS) ……….. -40°C to +150°C
Electrical Characteristics
V
IN
= 5V; C
IN
= 2.2μF; C
OUT
= 2.2μF
（
Electrolytic capacitor
）
; I
OUT
= 10mA; T
J
= 25°C, unless otherwise specified.
Symbol
Parameter
Conditions
SE5167 – 1.5V(V
IN
=1.8V,I
OUT
=1mA)
SE5167 – 1.8V(V
IN
=3.3V,I
OUT
=10mA)
V
OUT
Output Voltage
Accuracy
SE5167-2.5V
SE5167-2.8V
SE5167-3.0V
SE5167-3.3V
Output Voltage
ΔV
OUT
/ΔT
Temperature
Coefficient
ΔV
OUT
/ V
OUT
ΔV
OUT
/ V
OUT
Line Regulation
Load Regulation
(5)
V
IN
= (V
OUT
+0.8)V or 2.5V to 5.5V
V
IN
= (V
OUT
+0.8)V or 2.5V
I
OUT
=1mA to 300mA
I
OUT
=10mA
V
IN
- V
OUT
Dropout Voltage
(6)
I
OUT
=150mA
I
OUT
=300mA
T
PROTECTION
PSRR
I
GROUND
I
LIMIT
Thermal Protection
Ripple Rejection
Ground Current
Current Limit
Thermal Protection Temperature
Protection Hysterisys
f =120Hz
I
OUT
=10mA
V
OUT
=0V
--
--
--
--
--
--
--
--
--
--
1.0
1.0
15
175
380
150
20
59
65
600
--
--
--
--
--
--
--
--
--
--
℃
℃
Min
1.470
1.764
2.450
2.744
2.940
3.234
Typ
1.5
1.8
2.5
2.8
3.0
3.3
Max
1.530
1.836
2.550
2.856
3.060
3.366
Units
V
Note 4
--
0.025
--
mV/
℃
%/V
%
mV
dB
uA
mA
Revision
12/5/2008
Preliminary and all contents are subject to change without prior notice.
© Seaward Electronics, Inc., 2006. • www.seawardinc.com.cn • Page 3
Note 1:
Exceeding the absolute maximum rating may damage the device.
Note 2:
The device is not guaranteed to function outside its operating rating.
Note 3:
The maximum allowable power dissipation at any TA (ambient temperature) is calculated using: P
D(MAX)
= (T
J(MAX)
- T
A
)/θ
JA
. Exceeding the maximum allowable power dissipation will result in excessive die temperature, and the
regulator will go into thermal shutdown. See Table 1 and the “Thermal Considerations” section for details.
Note 4:
Output voltage temperature coefficient is the worst-case voltage change divided by the total temperature range.
Note 5:
Regulation is measured at constant junction temperature using low duty cycle pulse testing. Parts are tested for
load regulation in the load range from 100μA to 300mA. Changes in output voltage due to heating effects are
covered by the thermal regulation specification.
Note 6:
Dropout voltage is defined as the input to output differential at which the output voltage drops 2% below its
nominal value measured at 1V differential.
Note 7:
The Cin or Cout should be chosen carefully. Please refer to the Application Hints

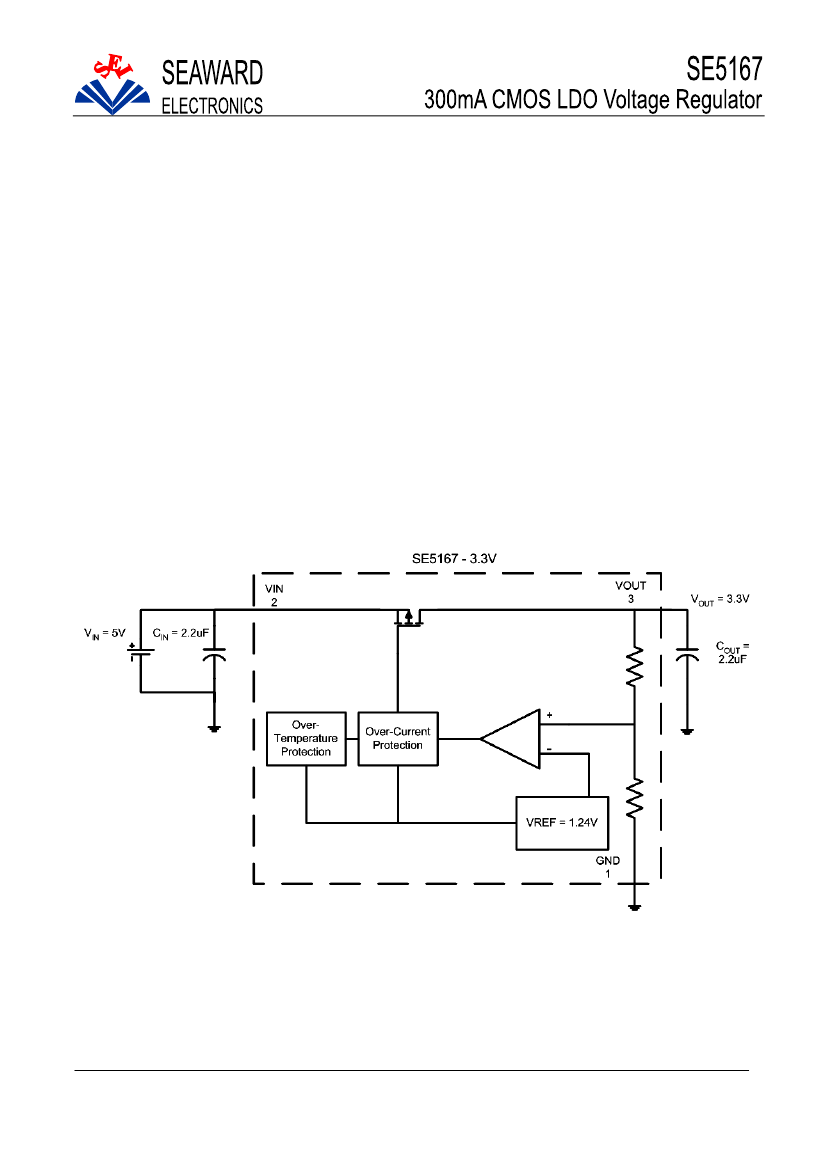

Typical Application
Revision
12/5/2008
Preliminary and all contents are subject to change without prior notice.
© Seaward Electronics, Inc., 2006. • www.seawardinc.com.cn • Page 4
Line Regulation (VOUT = 3.3V)
(VIN = 4.3V to 6V, IOUT = 1mA)
3.6000
3.600
Load Regulation (VOUT = 3.3V)
(VIN = 5V, IOUT = 1mA to 500mA)
3.5000
3.500
3.4000
3.400
VOUT (V)
3.3000
VOUT (V)
3.300
3.2000
3.200
3.1000
3.100
3.0000
4.2
4.7
5.2
5.7
3.000
0
100
200
300
400
500
VIN (V)
IOUT (mA)
Output Voltage vs Temperature
(VIN = 5V, IOUT = 10mA)
3.330
3.320
3.310
100
160
140
120
IQ vs IOUT (VOUT = 3.3V)
(VIN = 5V, IOUT = 10mA to 500mA)
VOUT (V)
3.300
3.290
3.280
3.270
0
20
40
60
80
100
120
IQ (uA)
80
60
40
20
0
Temperature (C)
0
100
200
300
400
500
IOUT (mA)
Transient Response (V
OUT
= 1.5V)
PSRR (VOUT = 3.3)
(VIN = 5V, VPP = 1V)
70
(I
OUT
= 1mA to 150mA)
60
50
PSRR (dB)
40
30
20
10
0
100
1000
10000
Frequency (Hz)
Revision
12/5/2008
Preliminary and all contents are subject to change without prior notice.
© Seaward Electronics, Inc., 2006. • www.seawardinc.com.cn • Page 5
