3010 POWER INDUCTORS

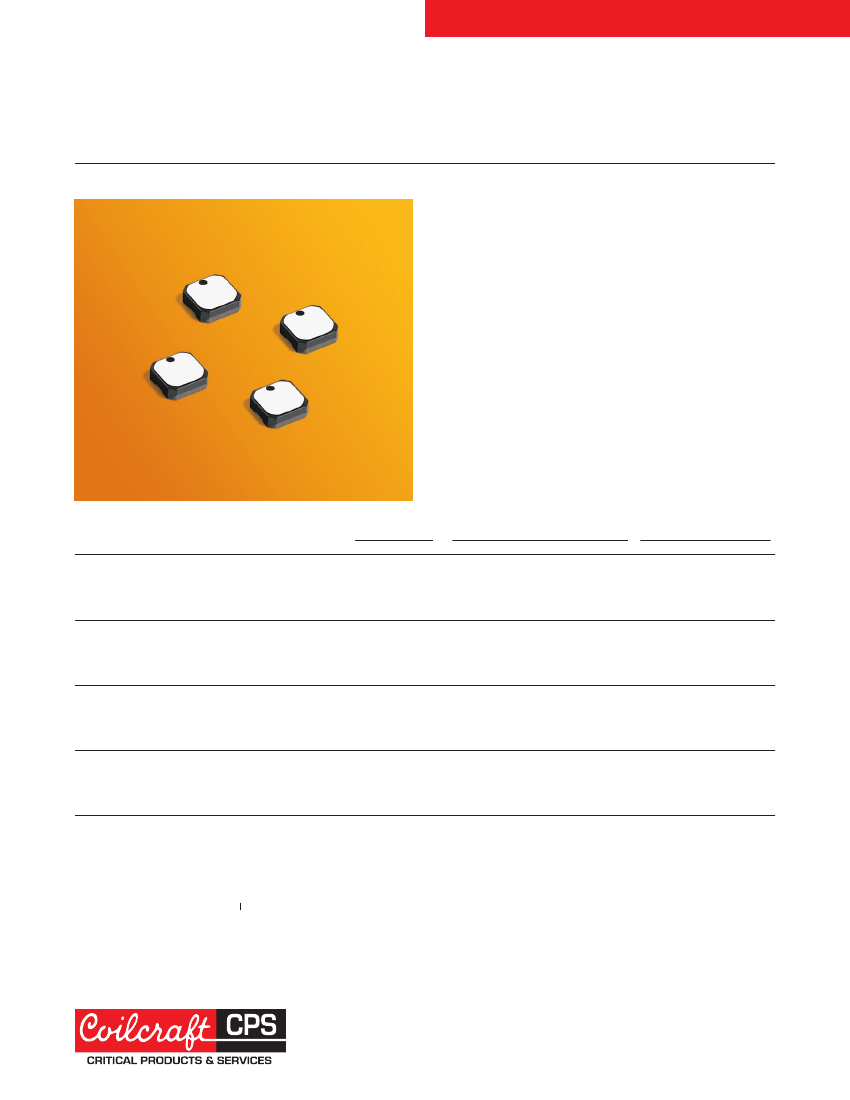

High-Reliability Power Inductors
ML378PJB
■
High temperature materials allow operation in ambient
temperatures up to 155°C
■
Special construction allows it to pass vibration testing to
80 G and shock testing to 1000 G.
Core material
Ferrite
Terminations
Silver-palladium-platinum-glass frit
Weight
25 – 32 mg
Ambient temperature
–55°C to +105°C with
Irms
current, +105°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Tape and reel packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
1000/7″ reel
Plastic tape: 12 mm wide, 0.23 mm thick, 8 mm pocket spacing,
1.4 mm pocket depth
Recommended pick and place nozzle
OD: 3 mm; ID:
≤1.5
mm
Part number
1
ML378PJB471MLZ
ML378PJB681MLZ
ML378PJB102MLZ
ML378PJB152MLZ
ML378PJB182MLZ
ML378PJB222MLZ
ML378PJB332MLZ
ML378PJB472MLZ
ML378PJB562MLZ
ML378PJB682MLZ
ML378PJB822MLZ
ML378PJB103MLZ
ML378PJB123MLZ
ML378PJB153MLZ
ML378PJB183MLZ
ML378PJB223MLZ
ML378PJB333MLZ
ML378PJB473MLZ
ML378PJB683MLZ
ML378PJB104MLZ
ML378PJB124MLZ
ML378PJB154MLZ
ML378PJB184MLZ
ML378PJB224MLZ
ML378PJB334MLZ
Inductance
2
±20% (µH)
0.47
0.68
1.0
1.5
1.8
2.2
3.3
4.7
5.6
6.8
8.2
10
12
15
18
22
33
47
68
100
120
150
180
220
330
DCR max
3
(Ohms)
0.070
0.080
0.085
0.120
0.150
0.220
0.220
0.300
0.400
0.450
0.500
0.540
0.700
0.950
1.00
1.20
2.00
3.20
3.50
5.25
6.10
9.15
10.1
12.5
18.5
SRF (MHz)
4
min
typ
259
370
189
270
161
230
115
165
105
150
91.0
130
77.0
110
64.4
92
56.0
80
49.0
70
43.4
62
40.6
58
32.9
47
30.1
43
27.0
40
25.2
36
18.9
27
14.7
21
14.7
21
9.8
14
8.4
12
7.7
11
6.3
9
5.6
8
4.9
7
Isat
(A)
5
10% drop 20% drop 30% drop
2.3
2.4
2.4
1.8
1.9
1.9
1.6
1.7
1.7
1.3
1.3
1.4
1.2
1.2
1.3
1.3
1.4
1.4
0.83
0.88
0.90
0.72
0.75
0.77
0.67
0.69
0.71
0.61
0.63
0.64
0.56
0.59
0.60
0.50
0.53
0.55
0.46
0.49
0.50
0.41
0.43
0.44
0.38
0.40
0.41
0.32
0.35
0.36
0.25
0.27
0.28
0.23
0.24
0.25
0.20
0.21
0.22
0.14
0.16
0.17
0.13
0.15
0.15
0.13
0.14
0.14
0.11
0.12
0.13
0.10
0.11
0.12
0.10
0.105
0.115
Irms
(A)
6
20°C rise 40°C rise
1.4
1.8
1.2
1.6
1.0
1.4
0.96
1.3
0.80
1.1
0.72
0.88
0.68
0.88
0.56
0.76
0.48
0.62
0.45
0.59
0.42
0.57
0.38
0.51
0.35
0.46
0.30
0.42
0.26
0.38
0.24
0.33
0.21
0.28
0.18
0.25
0.16
0.22
0.14
0.19
0.12
0.16
0.10
0.14
0.090
0.12
0.080
0.10
0.070
0.090
1. When ordering, please specify
testing
code:
ML378PJB334MLZ
Testing: Z
= COTS
H
= Group A screening per Coilcraft CP-SA-10001
N
= Group A screening per Coilcraft CP-SA-10004
2. Inductance tested at 100 kHz, 0.1 Vrms using an Agilent/HP 4192A.
Inductance at 1 MHz is the same for parts with SRF
≥10
MHz.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using an Agilent/HP 8753ES or equivalent.
5. DC current that causes the specified inductance drop from its value
without current.
6. Current that causes the specified temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
®
Document ML428-1 Revised 06/11/13
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2013
3010 POWER INDUCTORS
ML378PJB Series (3010)

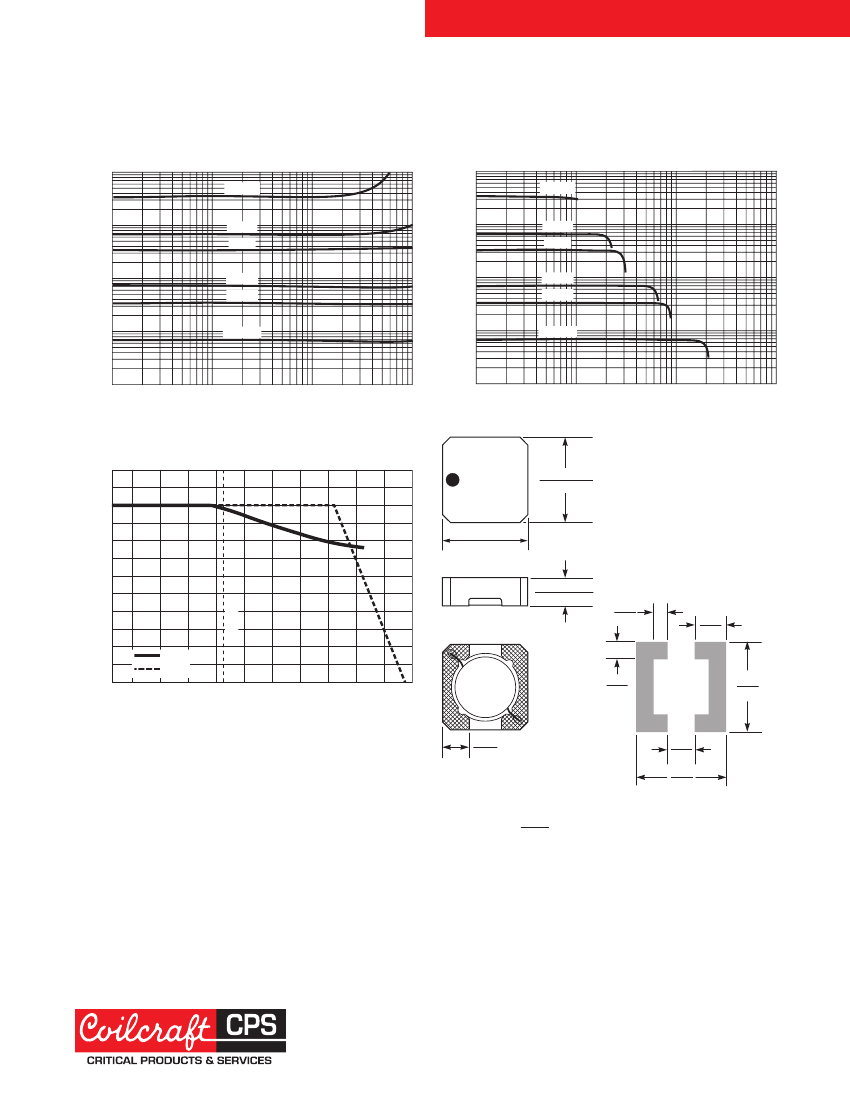

Typical L vs Frequency
1000
330 µH
Typical L vs Current
1000
330 µH
Inductance (µH)
Inductance (µH)
100
68 µH
33 µH
100
68 µH
33 µH
10
6.8 µH
3.3 µH
10
6.8 µH
3.3 µH
1
0.68 µH
1
0.68 µH
0.1
0.01
0.1
Frequency (MHz)
1
10
0.1
0.01
0.1
Current (A)
1
10
Typical Current Derating
120
110
100
90
80
70
60
50
40
30
20
10
0
-55 -40
0.0394 ±0.004
1,0 ±0,1
0.116 ±0.003
*
2,95 ±0,076
0.116 ±0.003
*
2,95 ±0,076
Percent of rated Current
Suggested
Land Pattern
0.020
0,51
0.045
1,14
Isat
Irms
-20
0
20
40
60
80
100
120
140 160
25°C
0.025
0,64
0.130
3,30
Ambient temperature (°C)
0.035
0,89
0.040
1,02
0.130
3,30
*
Dimensions are of the case not
including the termination. For maximum
overall dimensions including the
termination, add 0.005 in / 0,13 mm.
Dimensions are in
inches
mm
®
Document ML428-2 Revised 06/11/13
1102 Silver Lake Road
Cary, IL 60013
Phone 800-981-0363
Fax 847-639-1508
Email cps@coilcraft.com
www.coilcraft-cps.com
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specifications subject to change without notice.
Please check our web site for latest information.
© Coilcraft, Inc. 2013
