Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LF155H/883C

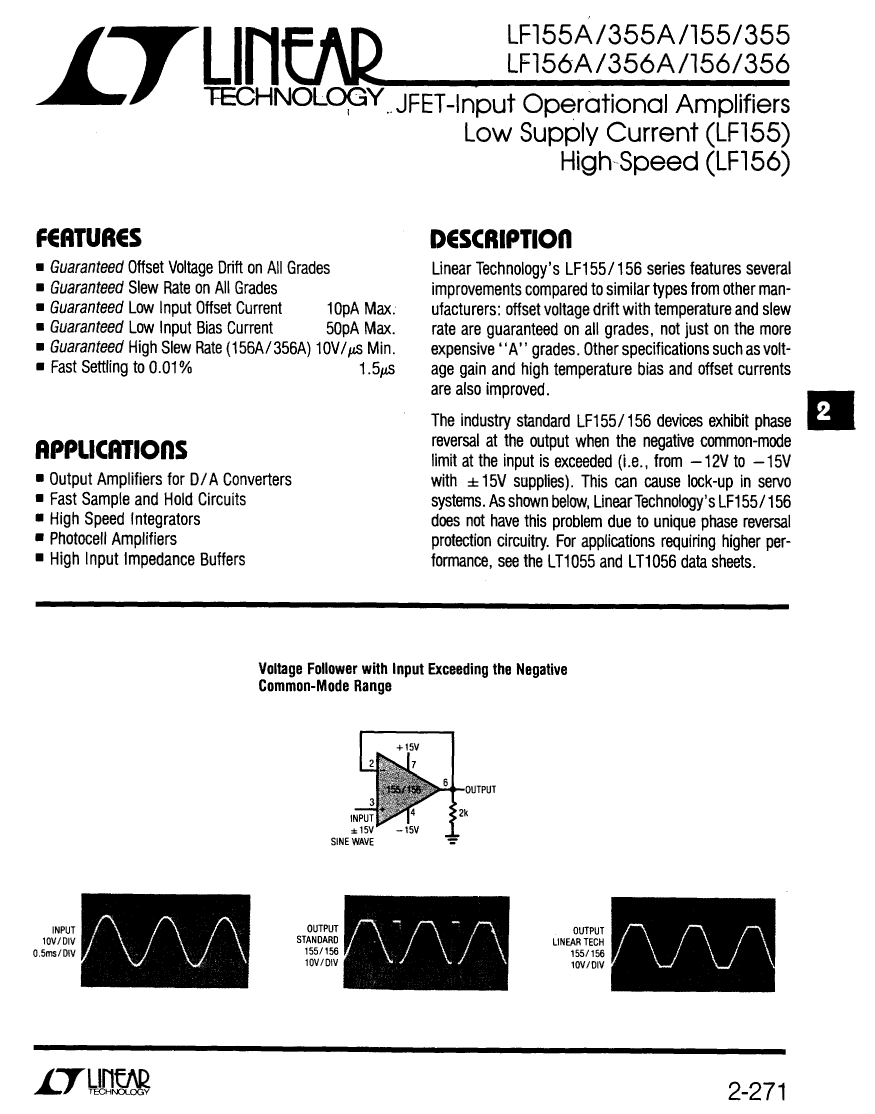

Preview

LF155H/883C: DescriptionOP-AMP, 4800uV OFFSET-MAX, 2.5MHz BAND WIDTH, MBCY8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size417KB，4 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LF155H/883C Overview

OP-AMP, 4800uV OFFSET-MAX, 2.5MHz BAND WIDTH, MBCY8

LF155H/883C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
package instruction	METAL CAN, PACKAGE-8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.0001 µA
Nominal Common Mode Rejection Ratio	100 dB
Maximum input offset voltage	4800 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Filter level	MIL-STD-883
Nominal slew rate	7 V/us
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Nominal Uniform Gain Bandwidth	2500 kHz

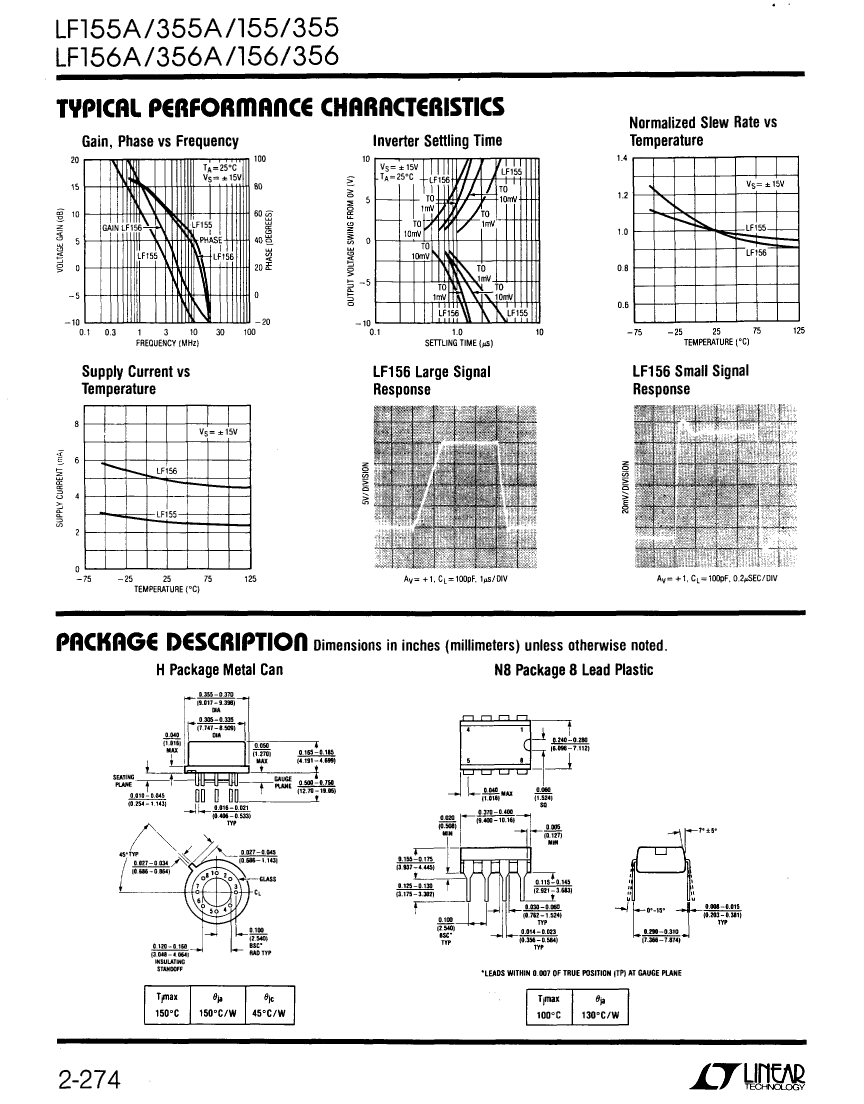

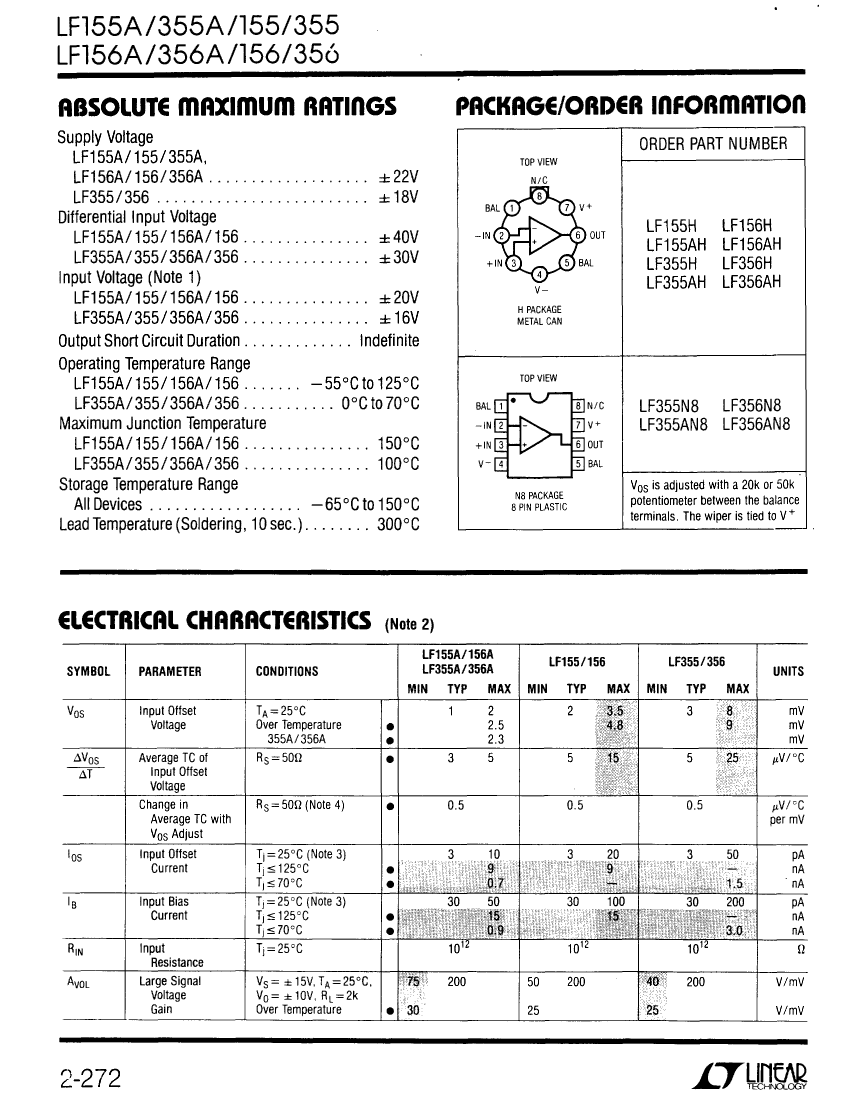

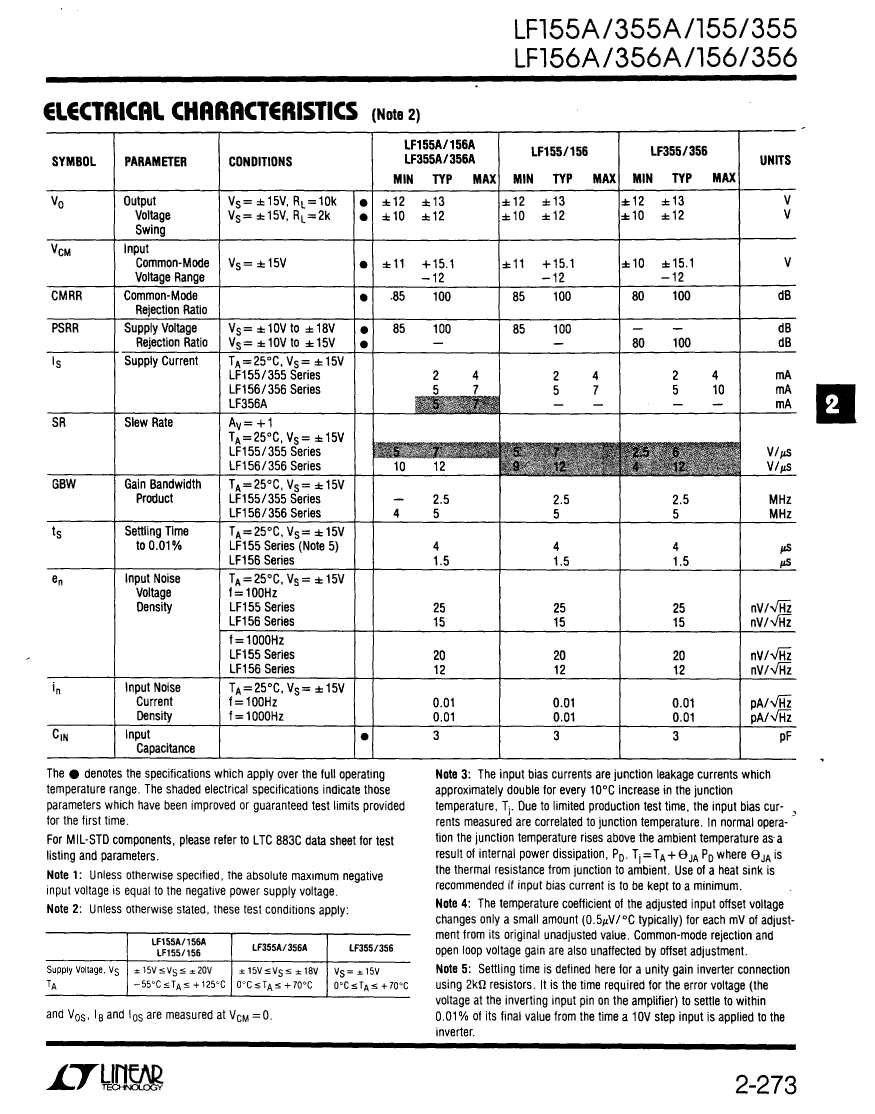

Preview

Download Datasheet

View All

LF155H/883C Related Products

	LF155H/883C	LF155H/883B	LF155AH/883C	LF156AH/883C
Description	OP-AMP, 4800uV OFFSET-MAX, 2.5MHz BAND WIDTH, MBCY8	OP-AMP, 4800uV OFFSET-MAX, 2.5MHz BAND WIDTH, MBCY8	OP-AMP, 2500uV OFFSET-MAX, 2.5MHz BAND WIDTH, MBCY8	OP-AMP, 2500uV OFFSET-MAX, 5MHz BAND WIDTH, MBCY8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
package instruction	METAL CAN, PACKAGE-8	METAL CAN, PACKAGE-8	METAL CAN, PACKAGE-8	METAL CAN, PACKAGE-8
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.0001 µA	0.0001 µA	0.00005 µA	0.00005 µA
Nominal Common Mode Rejection Ratio	100 dB	100 dB	100 dB	100 dB
Maximum input offset voltage	4800 µV	4800 µV	2500 µV	2500 µV
JESD-30 code	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0	e0	e0
Negative supply voltage upper limit	-22 V	-22 V	-22 V	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Filter level	MIL-STD-883	MIL-STD-883 Class B	MIL-STD-883	MIL-STD-883
Nominal slew rate	7 V/us	7 V/us	7 V/us	12 V/us
Supply voltage upper limit	22 V	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Nominal Uniform Gain Bandwidth	2500 kHz	2500 kHz	2500 kHz	5000 kHz
