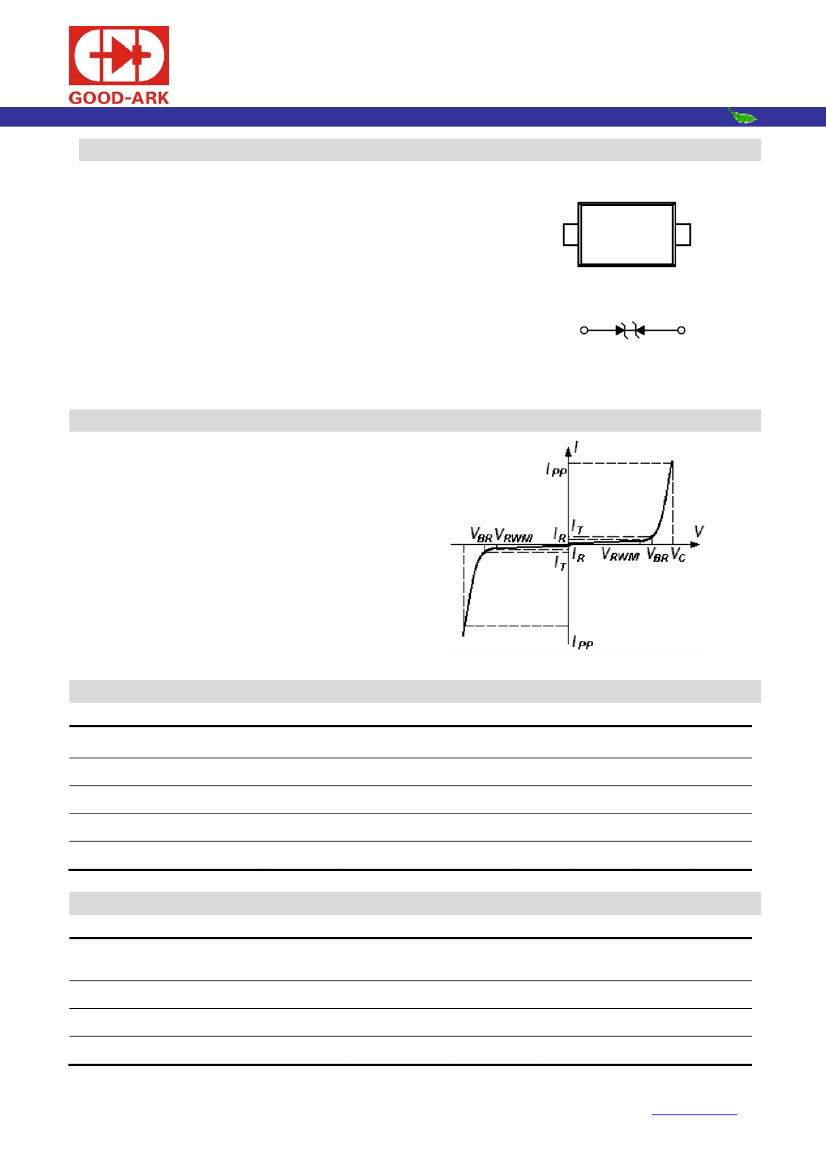

SES Series
ESD Protector
SES5VD523-2B
ROHS
Feature
200W peak pulse power per line (t
P
= 8/20μs)
SOD-523 package
Replacement for MLV(0603)
Bidirectional configurations
Response Time is Typically < 1 ns
ESD protection > 16 kV
Low clamping voltage
RoHS compliant
Transient protection for data lines to IEC 61000-4-2(ESD)
±15KV(air),
±8KV(contact);
IEC 61000-4-4 (EFT) 40A (5/50ns)
5C
Applications
Cellular phones
Portable devices
Digital cameras
Power supplies
Electrical characteristics per line@25℃(unless otherwise specified)
Parameter
Reverse stand-off voltage
Reverse Breakdown voltage
Reverse Leakage Current
Junction Capacitance
Symbol
V
RWM
V
BR
I
R
C
j
Conditions
Min.
Typ.
Max.
5
Units
V
V
μA
pF
I
t
= 1mA
V
RWM
= 5V T=25℃
V
R
=0V f = 1MHz
5.6
6.7
7.8
1.0
32
Absolute maximum rating @25℃
Rating
Unidirectional Peak Pulse Power (t
p
=8/20μＳ)
Operating Temperature
Storage Temperature
Symbol
P
pp
T
J
T
STG
Value
200
-55 to +150
-55 to +150
Units
W
℃
℃
ESD Protector
1
