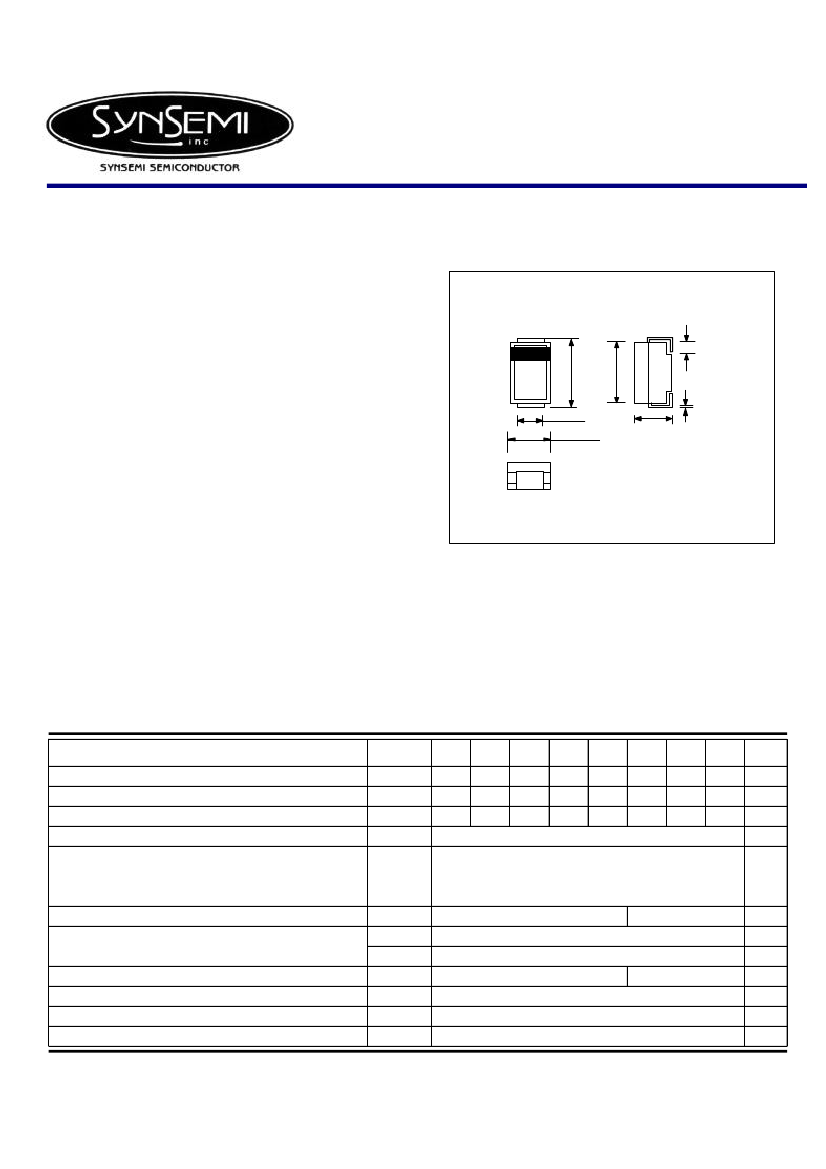

SETA - SETM
PRV : 50 - 1000 Volts
Io : 2.5 Amperes
FEATURES :
*
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
Fast switching for high efficiency
SURFACE MOUNT
HIGH EFFICIENT RECTIFIERS
SMB (DO-214AA)
1.1
±
0.3
5.4
±
0.15
4.8
±
0.15
2.0
±
0.1
3.6
±
0.15
2.3
±
0.2
0.22
±
0.07
* Pb / RoHS Free
MECHANICAL DATA :
* Case : SMB Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Lead Formed for Surface Mount
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.1079 gram
Dimensions in millimeter
Rating at 25
°
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current
Ta = 55
°C
Maximum Peak Forward Surge Current,
8.3ms Single half sine wave superimposed
on rated load (JEDEC Method)
Maximum Peak Forward Voltage at I
F
= 2.5 A
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Ta = 25
°C
Ta = 100
°C
SYMBOL
SETA SETB SETD SETE SETG SETJ SETK SETM
UNIT
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
I
R(H)
Trr
50
35
50
100
70
100
200
140
200
300
210
300
400
280
400
2.5
600
420
600
800
560
800
1000
700
1000
V
V
V
A
A
100
1.1
10
50
50
50
- 65 to + 150
- 65 to + 150
75
1.7
V
µA
µA
ns
pf
°C
°C
Maximum Reverse Recovery Time ( Note 1 )
Typical Junction Capacitance ( Note 2 )
Junction Temperature Range
Storage Temperature Range
C
J
T
J
T
STG
Notes :
( 1 ) Reverse Recovery Test Conditions : I
F
= 0.5 A, I
R
= 1.0 A, Irr = 0.25 A.
( 2 ) Measured at 1.0 MHz and applied reverse voltage of 4.0 V
DC
Page 1 of 2
Rev. 02 : March 24, 2005

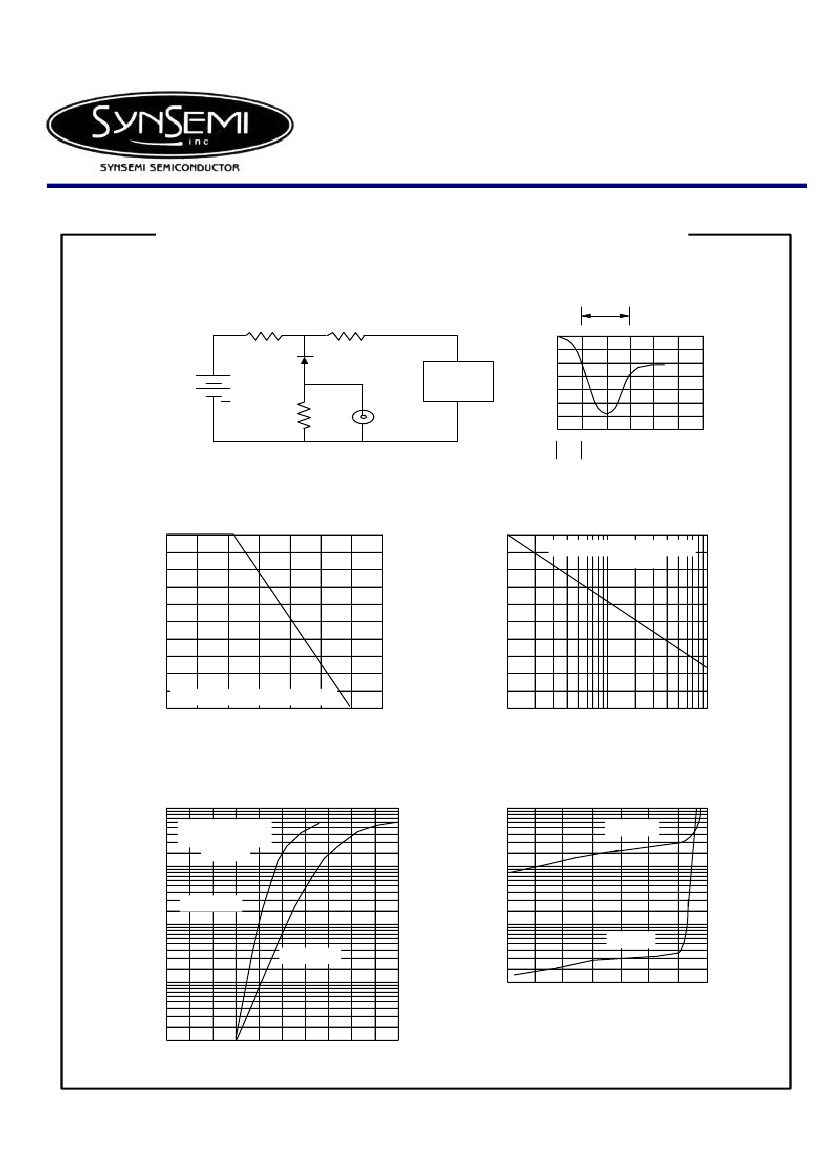

RATING AND CHARACTERISTIC CURVES ( SETA - SETM )
FIG.1 - REVERSE RECOVERY TIME CHARACTERISTIC AND TEST CIRCUIT DIAGRAM
50
Ω
10
Ω
+ 0.5
D.U.T.
50 Vdc
(approx)
1
Ω
PULSE
GENERATOR
( NOTE 2 )
OSCILLOSCOPE
( NOTE 1 )
0
- 0.25
Trr
+
- 1.0 A
SET TIME BASE FOR 25-35 ns/cm
NOTES : 1. Rise Time = 7 ns max., Input Impedance = 1 megaohm, 22 pF.
2. Rise time = 10 ns max., Source Impedance = 50 ohms.
3. All Resistors = Non-inductive Types.
1
FIG.2 - DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
2.5
100
FIG.3 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE
CURRENT, AMPERES
8.3 ms SINGLE HALF SINE WAVE
Ta = 50
°C
80
2.0
1.5
60
1.0
40
0.5
60Hz RESISTIVE OR INDUCTIVE LOAD
0
0
25
50
75
100
125
150
175
20
0
1
2
4
6
10
20
40
60
100
AMBIENT TEMPERATURE, (
°
C)
FIG.4 - TYPICAL FORWARD CHARACTERISTICS
NUMBER OF CYCLES AT 60Hz
FIG.5 - TYPICAL REVERSE CHARACTERISTICS
100
10
FORWARD CURRENT, AMPERES
T
J
= 25
°C
10
REVERSE CURRENT,
MICROAMPERES
Pulse W idth = 300
µs
2% Duty Cycle
T
J
= 100
°C
1.0
SETA - SETG
1.0
0.1
T
J
= 25
°C
SETJ - SETM
0.1
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED REVERSE
VOLTAGE, (%)
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
FORWARD VOLTAGE, VOLTS
Page 2 of 2
Rev. 02 : March 24, 2005
