LT-1001ML/883B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LT-1001ML/883B

LT-1001ML/883B: DescriptionOperational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, CQCC20, LLCC-20; CategoryAnalog mixed-signal IC Amplifier circuit; File Size234KB，9 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric Compare View All

LT-1001ML/883B Overview

Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, CQCC20, LLCC-20

LT-1001ML/883B Parametric

Parameter Name	Attribute value
Maker	Raytheon Company
package instruction	LLCC-20
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.004 µA
Nominal Common Mode Rejection Ratio	123 dB
Maximum input offset voltage	60 µV
JESD-30 code	S-CQCC-N20
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Nominal slew rate	0.3 V/us
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Nominal Uniform Gain Bandwidth	800 kHz

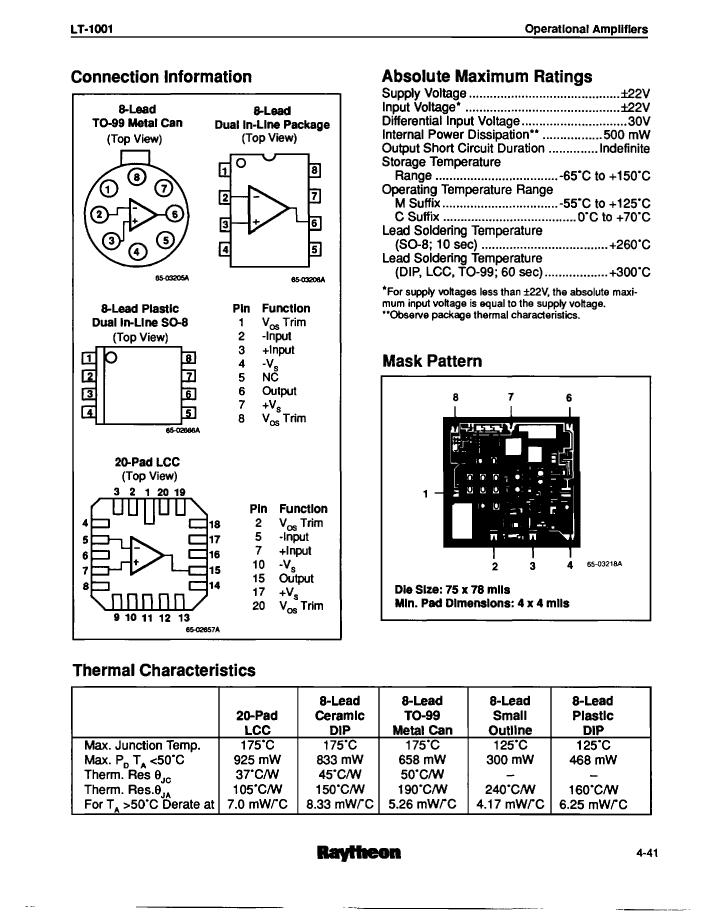

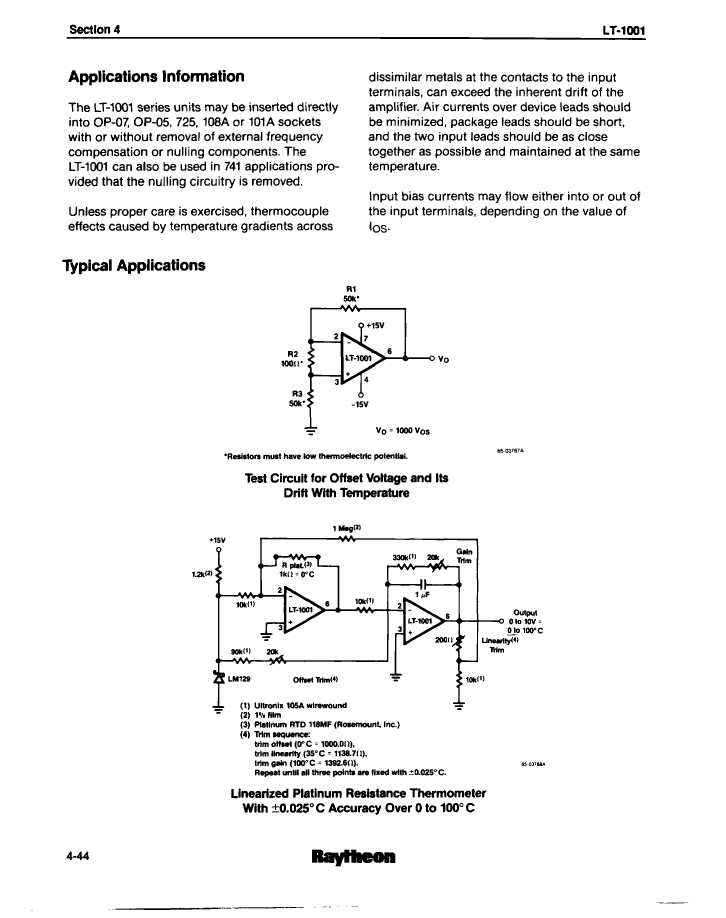

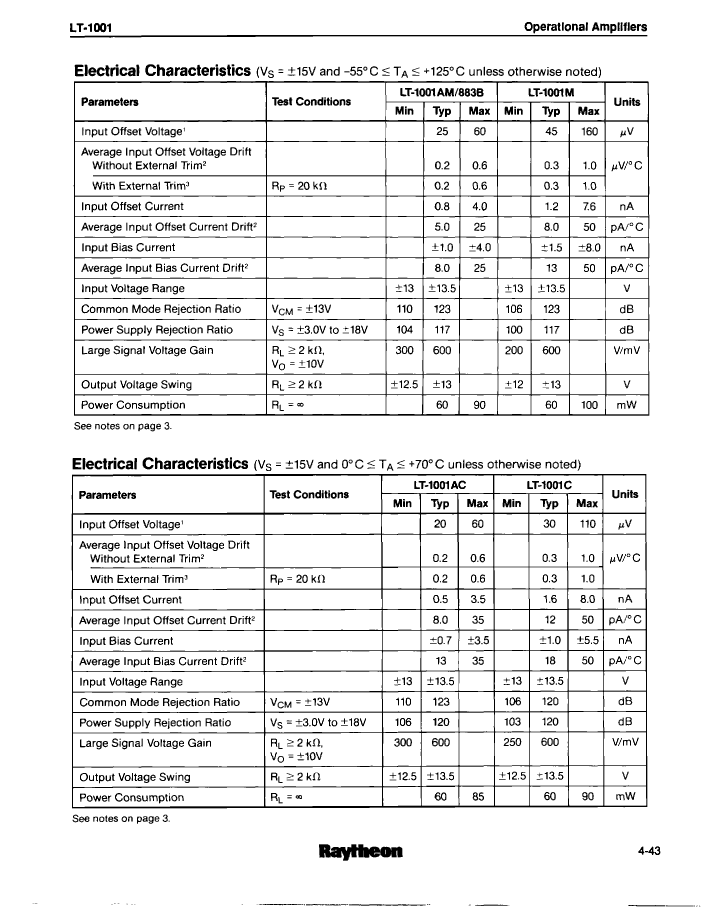

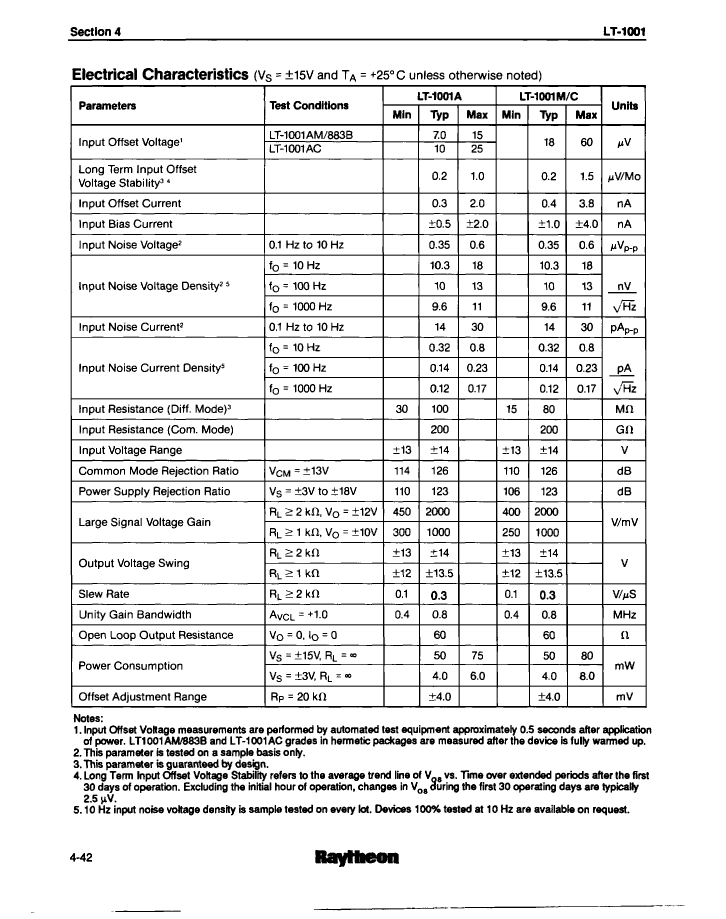

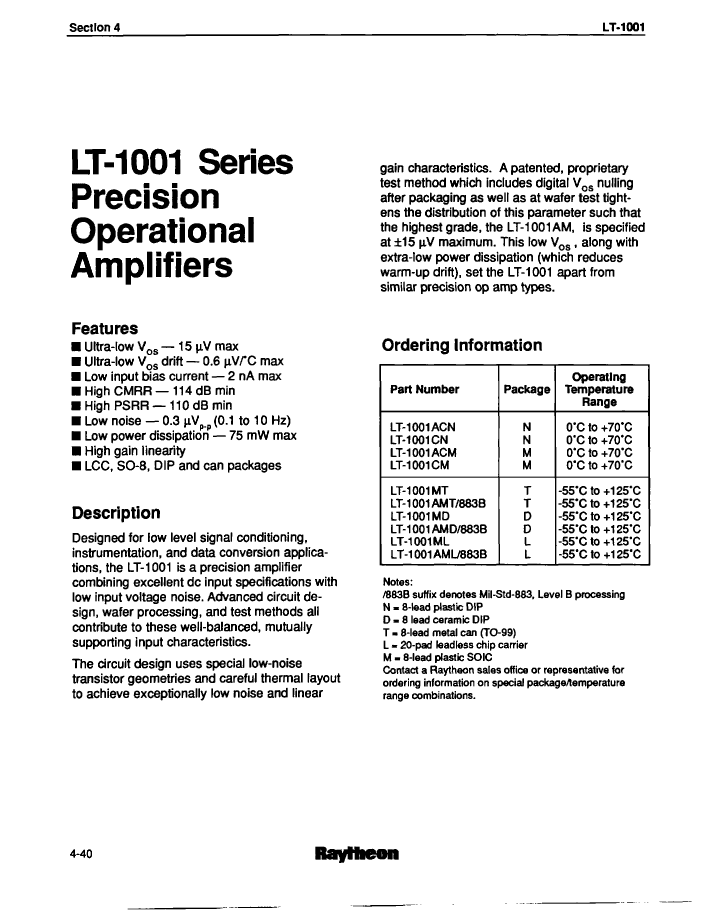

Preview

Download Datasheet

View All

LT-1001ML/883B Related Products

	LT-1001ML/883B	LT-1001AML	LT-1001MT/883B	LT-1001MD/883B
Description	Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, CQCC20, LLCC-20	Operational Amplifier, 1 Func, 160uV Offset-Max, BIPolar, CQCC20, LLCC-20	Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, MBCY8, TO-99, 8 PIN	Operational Amplifier, 1 Func, 60uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8
Maker	Raytheon Company	Raytheon Company	Raytheon Company	Raytheon Company
package instruction	LLCC-20	LLCC-20	TO-99, 8 PIN	CERAMIC, DIP-8
Reach Compliance Code	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.004 µA	0.008 µA	0.004 µA	0.004 µA
Nominal Common Mode Rejection Ratio	123 dB	123 dB	123 dB	123 dB
Maximum input offset voltage	60 µV	160 µV	60 µV	60 µV
JESD-30 code	S-CQCC-N20	S-CQCC-N20	O-MBCY-W8	R-CDIP-T8
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1
Number of terminals	20	20	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	METAL	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	ROUND	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CYLINDRICAL	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal slew rate	0.3 V/us	0.3 V/us	0.3 V/us	0.3 V/us
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	YES	YES	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	WIRE	THROUGH-HOLE
Terminal location	QUAD	QUAD	BOTTOM	DUAL
Nominal Uniform Gain Bandwidth	800 kHz	800 kHz	800 kHz	800 kHz
