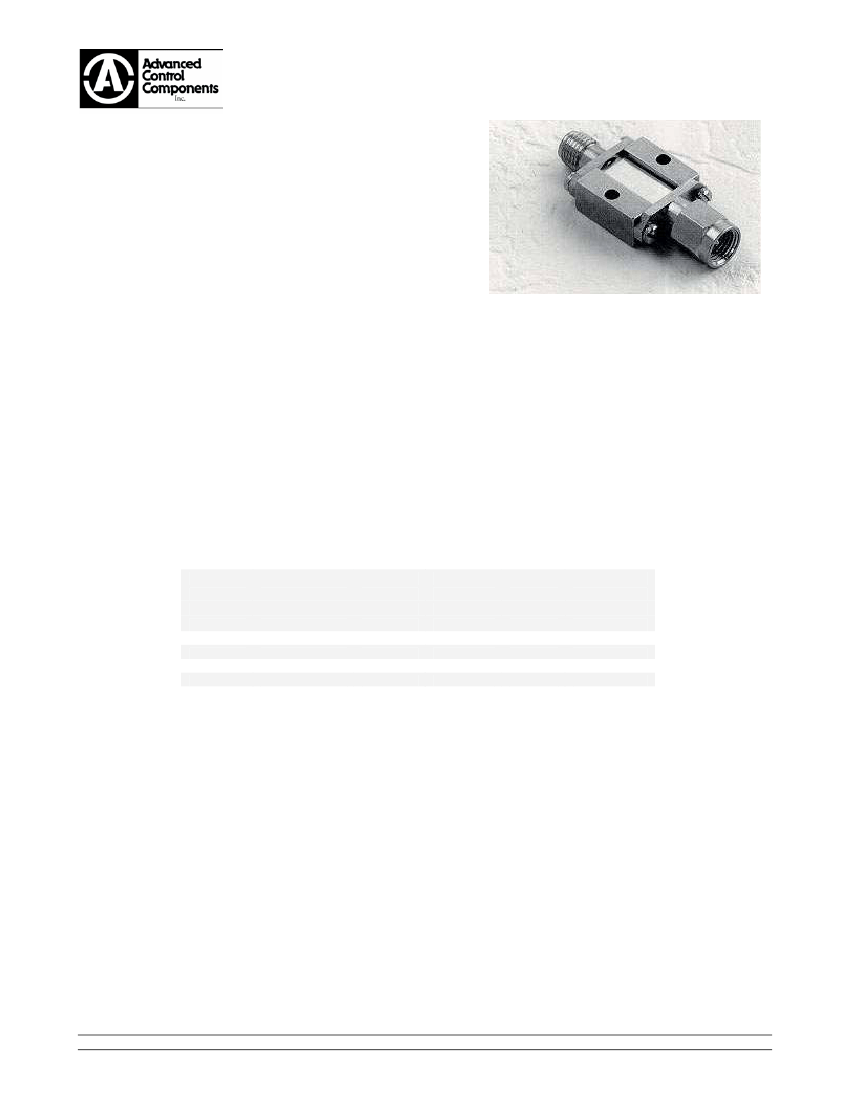

HIGH FREQUENCY TUNNEL DETECTORS
Exceptional thermal stability and flatness vs. frequency characterize these
tunnel detectors from Advanced Control Components, Inc. Several models are
available which operate over all or a portion of the frequency range of 18 to 40
GHz. The temperature stability is +/- 0.3dB over the range of -65°C to +100°C.
The typical output impedance is 115Ω. This allows for extremely fast video
response when operating in the square law range, typically -20dBm or lower.
The input power rating is +14dBm maximum.
Each detector model contains:
•
DC Return
•
RF Bypass Capacitor
•
Detector Diode
Features:
•
Exceptional Temperature Stability
•
Low Video Resistance (115Ω typical)
•
Broadband Performance
•
No Bias Required
Applications:
•
Transmitter Monitoring
•
Missile Guidance Systems
•
Input to Low-Noise Amplifiers
•
Broadband Or Narrowband ECM Receivers
•
Power and Signal Monitors
•
Doppler Radar and Beacon Receivers
•
Matched units available for Multi-channel Receivers, Amplitude Comparator Systems and Discriminators
Frequency
Range
(GHz)
18 - 26
18 - 30
26 - 36
36 - 39
18 - 40
Part
Number
ACTP1799N
ACTP1796N
ACTP1798N
ACTP1797N
ACTP1795N
Flatness
vs
Frequency
(+/-dB)
0.5
0.5
1
0.4
1
Minimum
Output
Voltage
(mV)
4
4
4
4
4
Standard
Case
Styles
C36
C7
C7
C7
C7
Optional
Case
Styles
C37,M22
C63,M22
C63,M22
C63M22
C63,M22
NOTES:
1)
Connectors may be removed leaving a module (M22) for stripline or microstrip mounting.
611 Industrial Way West, Eatontown, NJ 07724
tel: 732-460-0212 fax: 732-460-0214
sales@advanced-control.com
www.advanced-control.com
ENVIRONMENTAL SPECIFICATIONS:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp: -65°C to +100°C
Storage Temp: -65°C to +100°C
Humidity: MIL-STD-202F, M103, Cond B
Shock: MIL-STD-202F, M213, Cond B
Altitude: MIL-STD-202F, M105, Cond B
Vibration : MIL-STD-202F, M204, Cond B
Thermal Shock: MIL-STD-202F, M107, Cond A
Temperature Cycle: MIL-STD-202F, M105C, Cond D
Maximum Input Power: +14dBm
(This allows for 3dB margin from possible burnout at +17dBm)
1.410
0.530
(REF.)
0.21
SCREENING :
Standard Screening:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65°C to +100°C, 10 cycles
Optional High-Rel Screening (Ref MIL-PRF-38534):
Internal Visual per MIL-STD-883, Method 2017
Stabilization Bake per MIL-STD-883, Method 1008
Temperature Cycle per MIL-STD-883, Method 1010
Constant Acceleration per MIL-STD-883, Method 2001
Burn-in per MIL-STD-883, Method 1015
Leak Test per MIL-STD-883, Method 1014
External Visual per MIL-STD-883, Method 2009
1.417
0.07
0.250
0.530
(REF.)
0.26
0.07
0.250
0.48
0.625
0.48
SMA
MALE
INPUT
Ø0.100±.005
THRU (2) PLCS.
0.625
K-MALE
INPUT
Ø0.100±.005
THRU (2) PLCS.
SMA
FEMALE
OUTPUT
SMA
FEMALE
OUTPUT

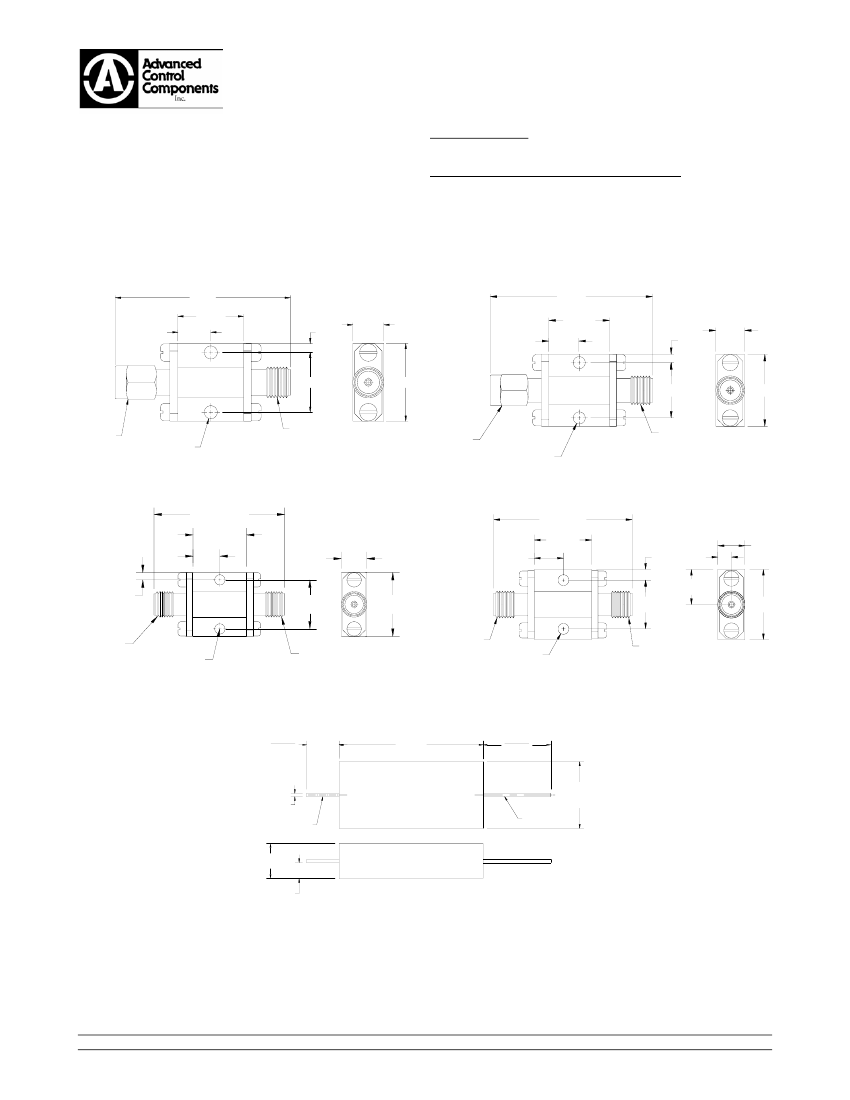

CASE STYLE C7
1.282±.010
0.525
(REF)
0.26
0.250
0.270
CASE STYLE C36
1.28±.050
0.530
(REF.)
0.100
0.326
0.250
0.125
0.07
0.48
0.625
K
FEMALE
INPUT
0.450
0.650
SMA
FEMALE
INPUT
Ø0.100±0.005
THRU (2) PLCS.
SMA
FEMALE
OUTPUT
0.100 THRU
(2) PLCS.
SMA FEMALE
VIDEO OUTPUT
CASE STYLE C37
0.120
0.080
0.250
0.120
CASE STYLE C63
0.532
Ø0.012
TYP.
INPUT
C
L
0.246
±.003
OUTPUT
0.129
0.058
TYP.
CASE STYLE M22
Part Number Ordering Information:
Example: ACTP1795NC7
ACTP1795: High Frequency Tunnel Diode Detector, 18 – 40GHz
N: Negative output polarity
C7: Package type
TPHF-0205
