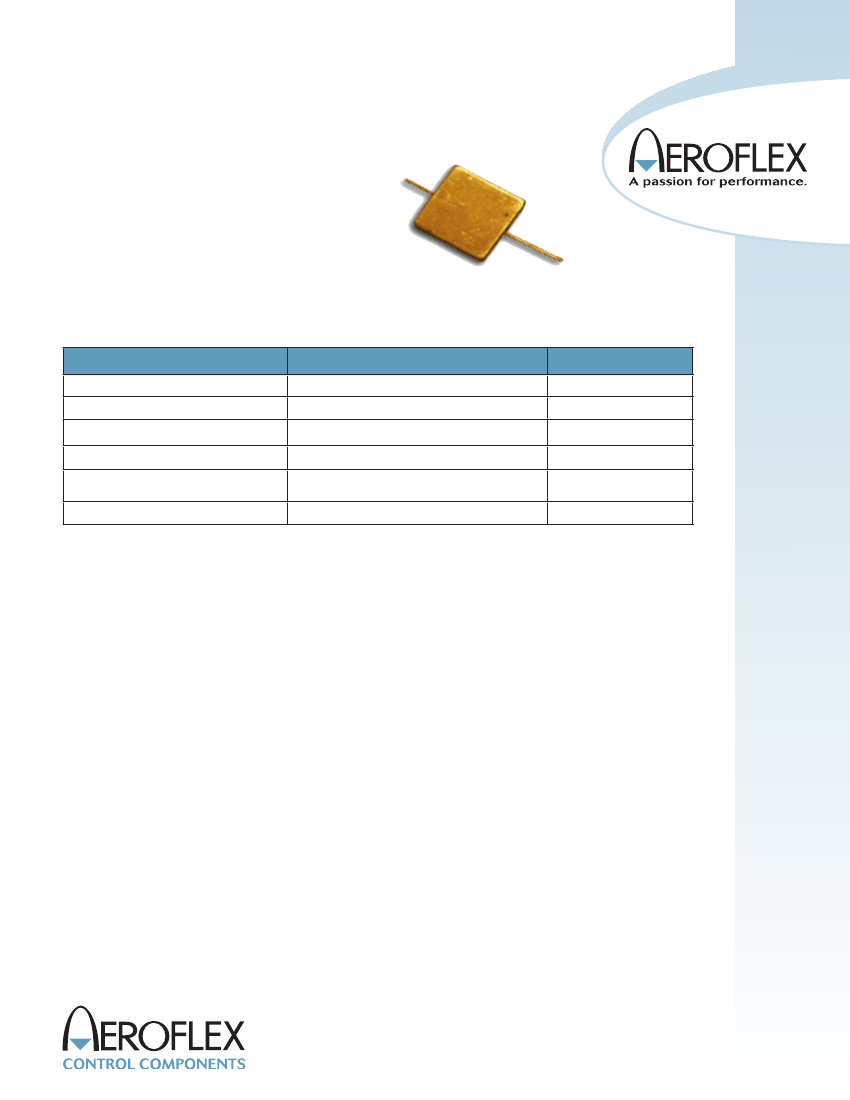

ACTM-1037
Tunnel Diode Detector Modules
Features:
•
Contains hermetically sealed modules, inter-
nal RF matching, DC return, and RF bypass
capacitor.
The video port is protected from static or
transient charges.
Input impedance matching.
Models may be chosen for broadband RF
performance of for optimized narrow bands
•
•
•
Specifications:
Parameter
Frequency Range (min)
Sensitivity (min)
Flatness vs. Frequency (max)
Typical TSS
Typical VSWR
Nominal Video Capacitance
Specification
0.1 – 1
Units
GHz
mV/mW
±dB
dBm
Ratio
pF
900
0.2
-51
2.3:1
270
Notes:
Maximum input power: +14dBm (3dB guardband for
+17dBm possible burnout)
Sensitivity is measured into an open circuit load
(>10k ohm).
VSWR is measured at or below -20dBm input power
level.
Video capacitance is used for RF bypass. This value
can be changed if required for video response time.
Contact the factory for more information.
SCREENING:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65°C to +100°C, 10 cycles
OPTIONAL HIGH-REL SCREENING
(Ref MIL-PRF-38534):
Stabilization Bake per MIL-STD-883, Method 1008
Temperature Cycle per MIL-STD-883, Method 1010
Constant Acceleration per MIL-STD-883, Method
2001
Burn-in per MIL-STD-883, Method 1015
Leak Test per MIL-STD-883, Method 1014
External Visual per MIL-STD-883, Method 2009
Environmental Specifications:
Designed to meet:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp: -55°C to +125°C
Storage Temp: -65°C to +150°C
Humidity: MIL-STD-202F, M103, Cond B
Shock: MIL-STD-202F, M213, Cond B
Altitude: MIL-STD-202F, M105, Cond B
Vibration: MIL-STD-202F, M204, Cond B
Thermal Shock: MIL-STD-202F, M107, Cond A
Temperature Cycle: MIL-STD-202F, M105C, Cond D
40 Industrial Way East, Eatontown , NJ 07724 [USA]
Phone: (732) 460-0212, Fax: (732) 460-0214
www.aeroflex.com/acc, email: acc-sales@aeroflex.com
Revision Date: 2/23/2011

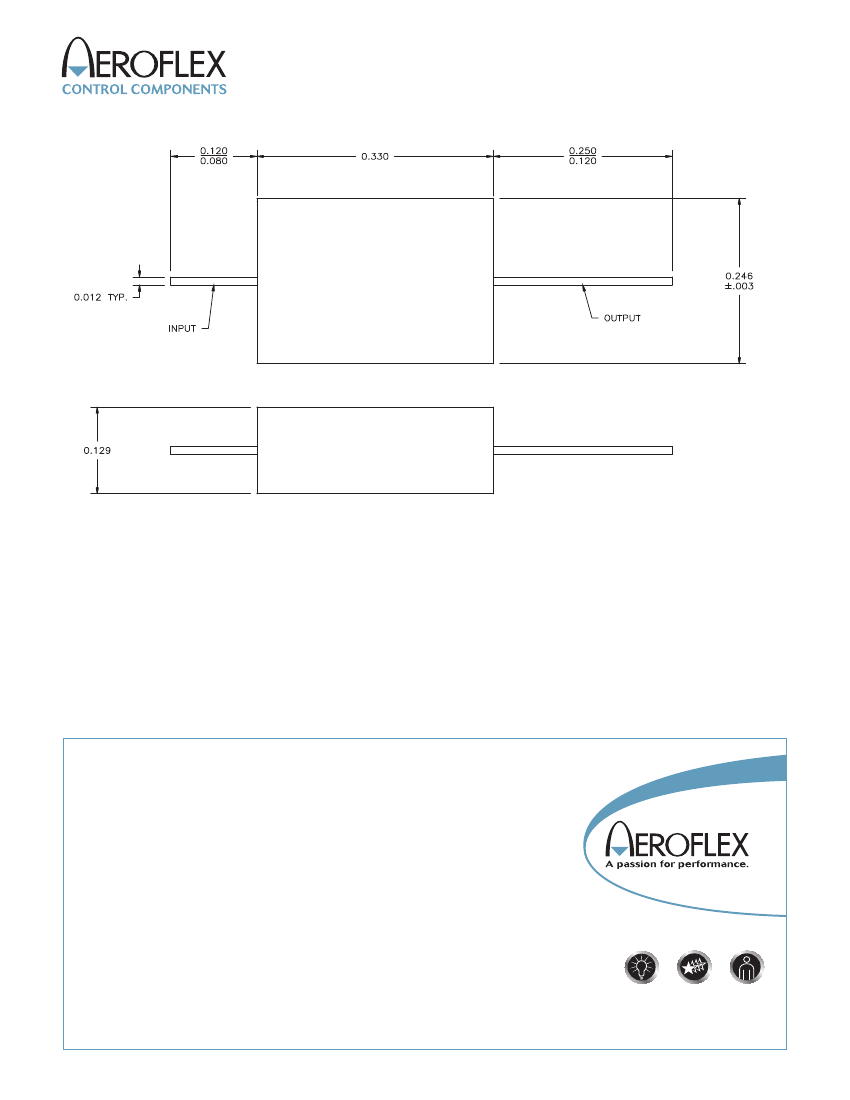

Outline Drawing:
STANDARD CASE STYLE M12
Part Number Ordering Information:
•
•
•
Add desired polarity suffix: “N” for Negative, “P” for Positive (Ex: ACTM-1037N)
Add desired case style suffix: “M22” (Ex: ACTM-1037NM12)
Add “-RC” suffix: RoHS-compliant (Ex: ACTM-1037NM12-RC)
