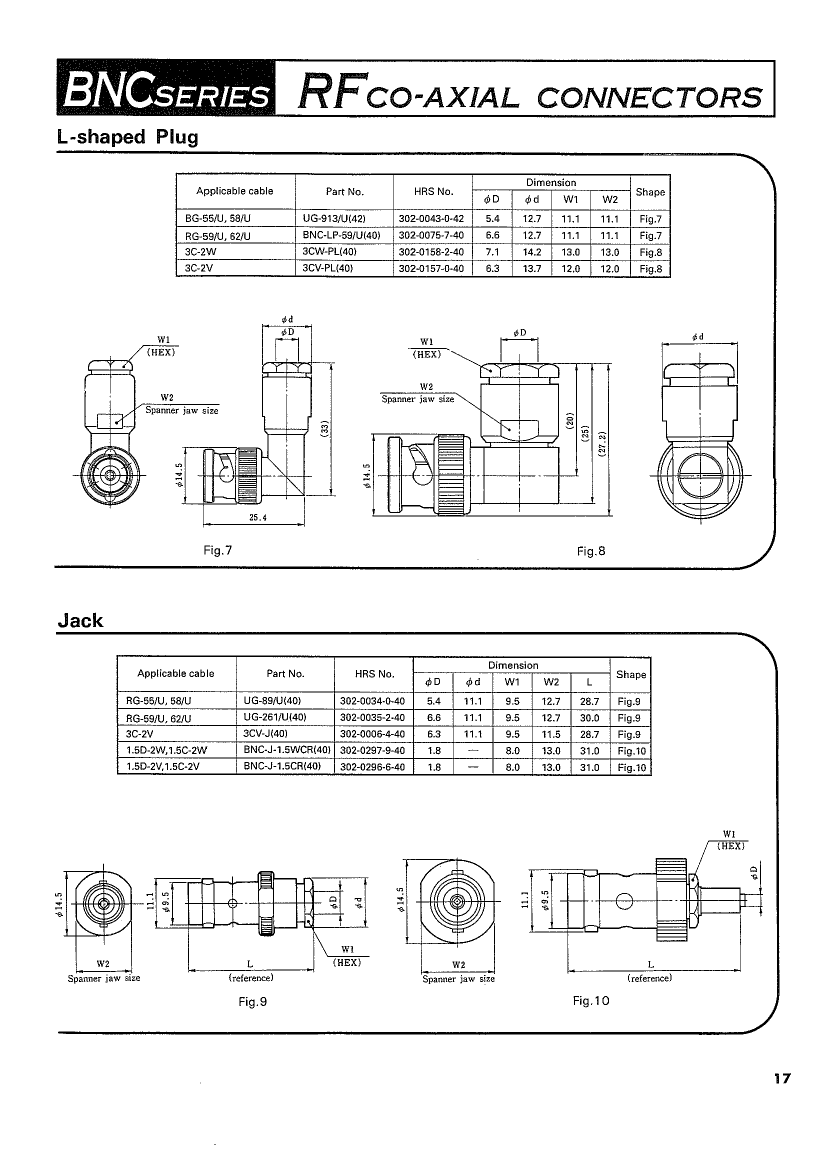

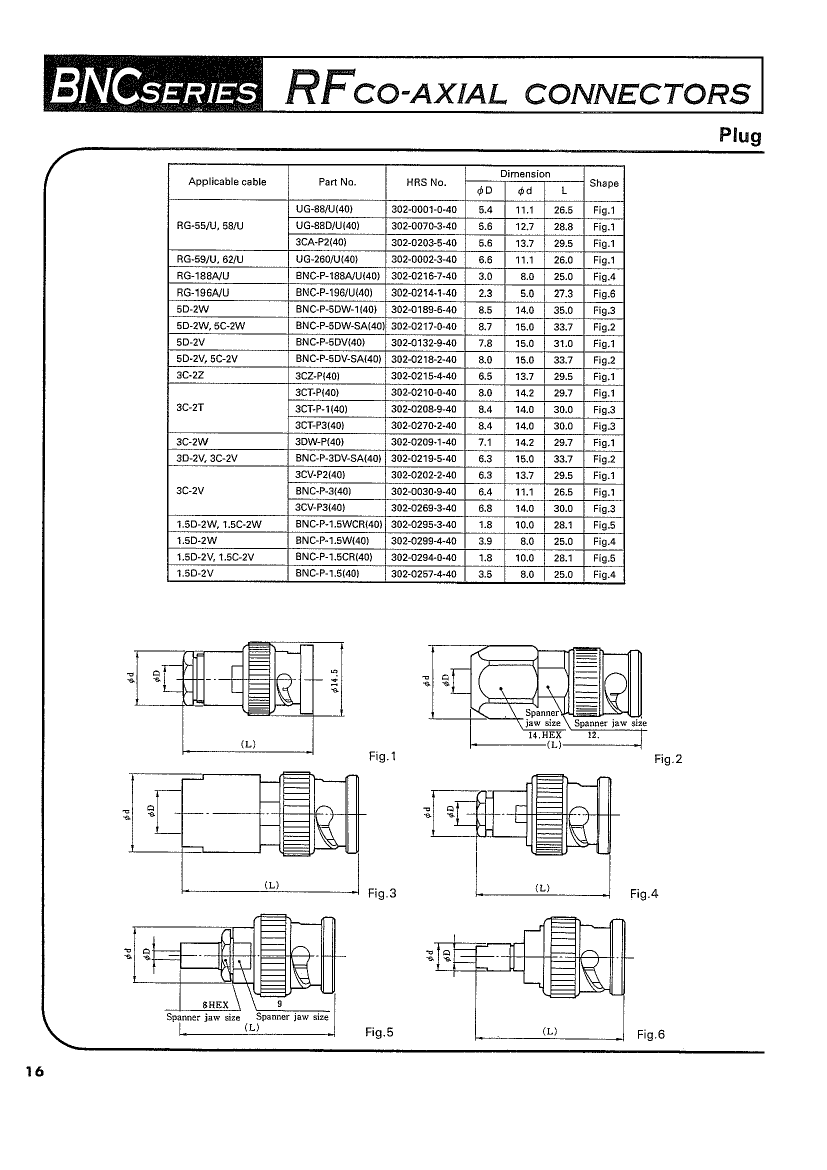

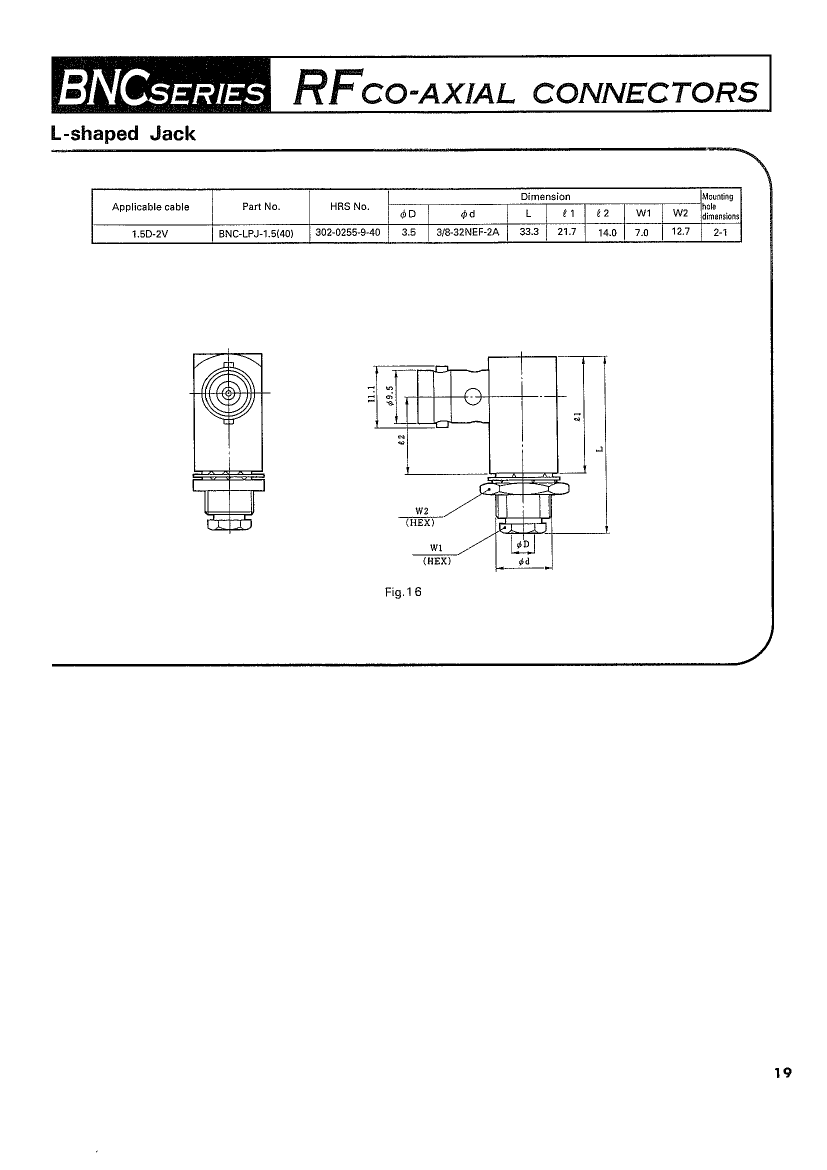

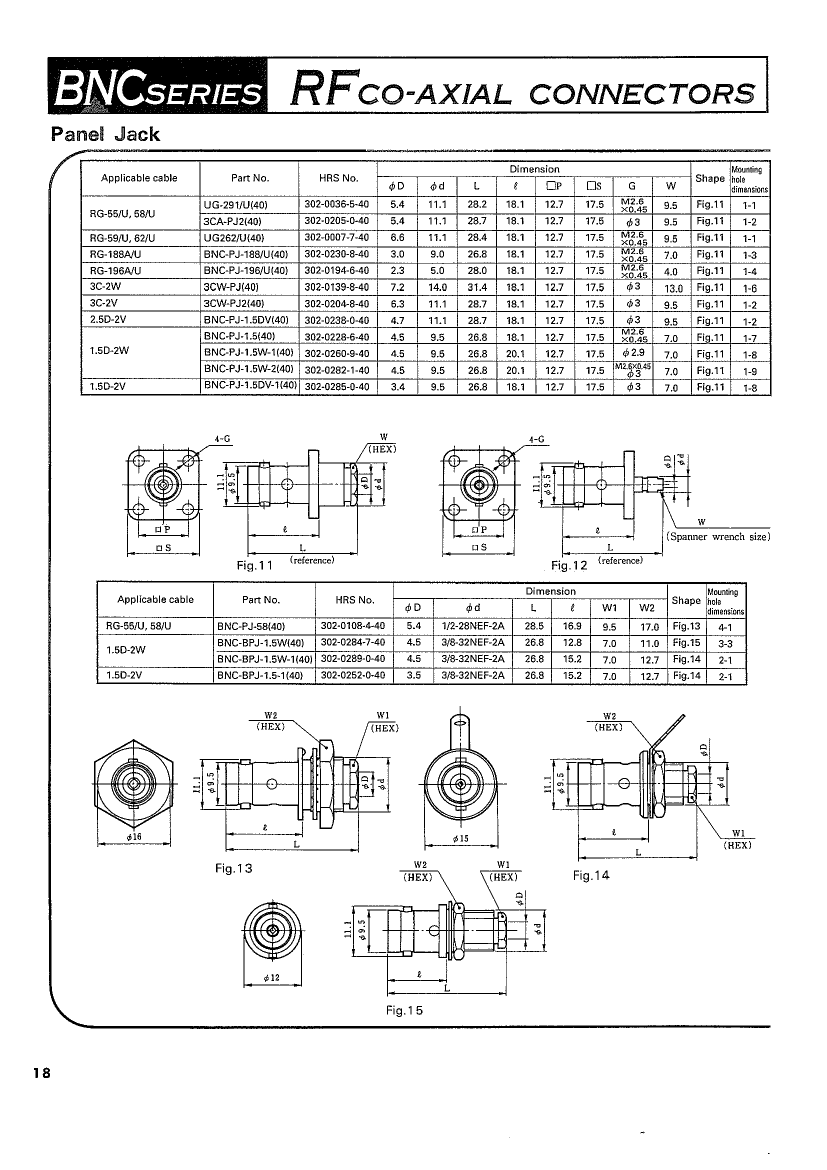

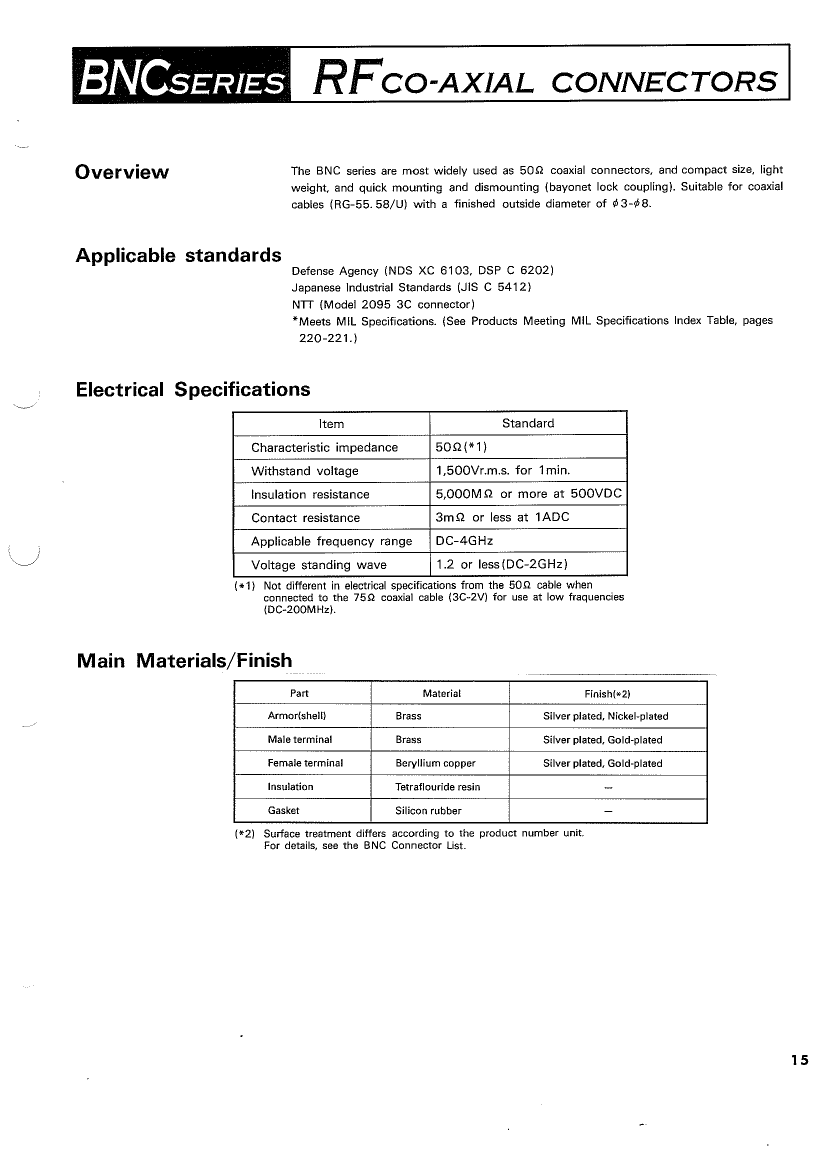

Preview

3C-R(40): DescriptionRF BNC Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size590KB，18 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

3C-R(40) Overview

RF BNC Connector, 1 Contact(s), Female, Panel Mount, Panel Mount, Solder Lug Terminal, Locking, Receptacle

3C-R(40) Parametric

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknown
subject depth	0.622 inch
Body diameter	0.437 inch
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Contact resistance	3 mΩ
Contact style	COAX
Coupling type	BAYONET
Dielectric withstand voltage	2100VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
Manufacturer's serial number	3C
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Maximum operating frequency	1 GHz
Panel mounting	YES
Shell material	BRASS
Terminal length	0.323 inch
Termination type	SOLDER LUG
Total number of contacts	1
voltage standing wave ratio	1.2

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
