SF801 thru SF807
SUPERFAST RECOVERY RECTIFIER
VOLTAGE - 50 TO 600 VOLTS
CURRENT - 8.0 AMPERES

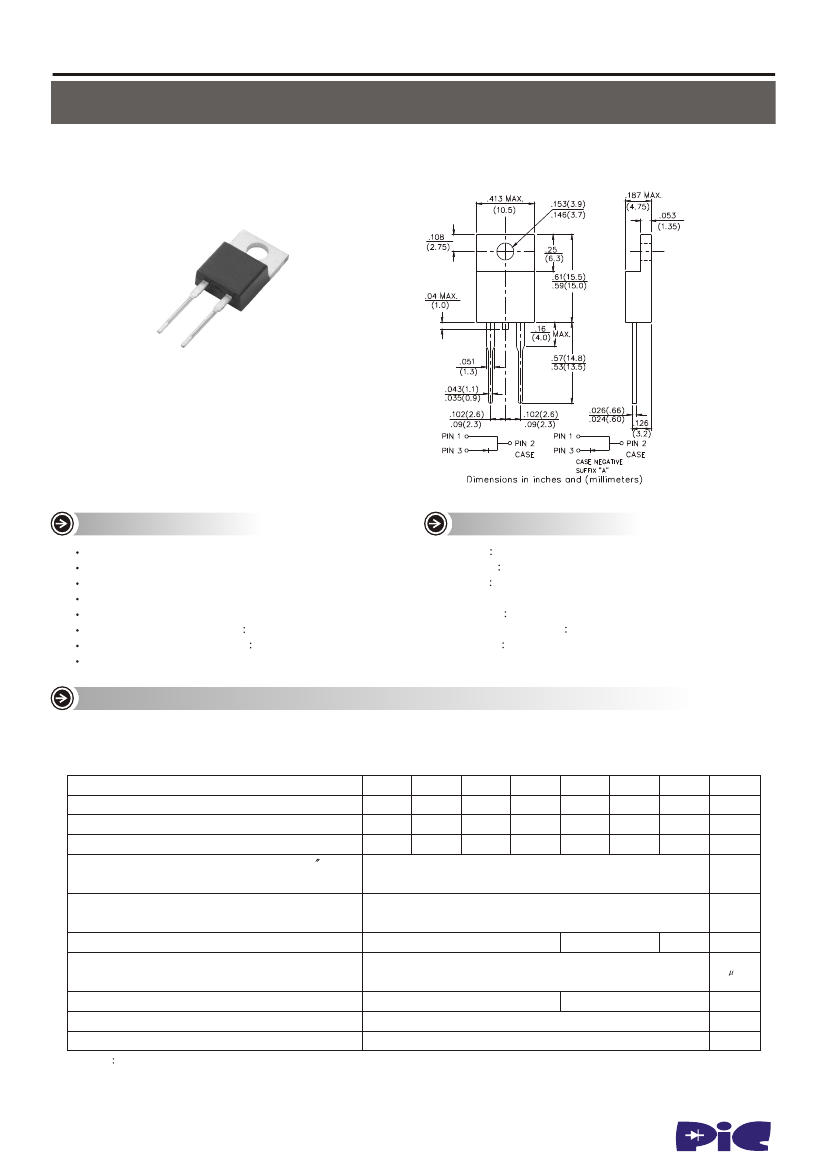

TO-220AC
FEATURES
Low forward voltage drop
High Current Capability
High reliability
High surge Current Capability
Good for switching mode application
High temperature soldering 260
o
C/10seconds at terminals
Pb free product are available 99% Sn above can meet RoHS
environment substance directive request
MECHANICAL DATA
Case TO220AC Molded plastic
Epoxy UL 94V-0 rate flame retardant
Lead Lead solderable per
MIL-STD-202, Method 208 guranteed
Polarity As Marked
Mounting Position Any
Weight 2.24gram
MAXIMUM RATIXGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load
For capacitive load, derate current by 20%
PARAMETER
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current .375
0
(9.5mm) Lead Length at T
C
=100 C
Peak Forward Surge Current 8.3ms Single Half Sine-Wave
Superimposed on Rated Load (JEDEC Method)
Maximum Instandeous Forward Voltage at 8.0A
Maximum DC Reverse Current T
A
=25
0
C
at Rated DC Blocking Voltage T
A
=100
0
C
Maximum Reverse Recovery Time (Note 1)
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range T
J
,T
STG
NOTES
1. Reverse Recovery Time test condition I
F
=0.5A , I
R
=1.0A , I
RR
=0.25A
2. Measured at 1.0MHz and applied reverse Voltage of 4.0V D.C
35
50
0.95
10
500
50
SF801
50
35
50
SF802
100
70
100
SF803
150
105
150
SF804
200
140
200
8.0
SF805
300
210
300
SF806
400
320
400
SF807
600
420
600
UNITS
Volts
Volts
Volts
Amps
125
1.3
1.7
Amps
Volts
A
nS
pF
0
-55 to +150
C
